M5Stack Timer Camera - OV3660

M5Stack Timer Camera - OV3660
M5Stack Timer Camera - OV3660
M5Stack Timer Camera - OV3660
M5Stack Timer Camera - OV3660
M5Stack Timer Camera - OV3660
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004530
Based on 0 review(s) - Write a review
€20.00
Ex Tax: €16.53
Add to Cart
Add to wishlist

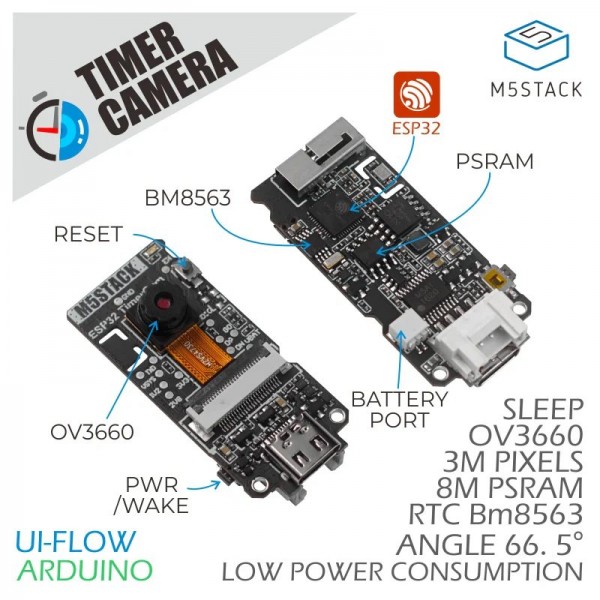

A development board from M5Stack based on a ESP32 microcontroller by Espressif. Thanks to the built-in USB connector, it is easy to program. The board includes a OV3660 camera that can be used to take photos and/or videos. For extra connectivity, the board has multiple wireless communication interfaces (including Wi-Fi/Bluetooth). Finally, the board has a battery connector where a Li-Po/Li-ion battery (not included) can be connected, which can also be charged via the board.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Timer Camera - OV3660

This product has 0 review(s) in total.

Tags: Microcontroller Boards , With Wi-Fi , M5Stack Timer Camera - OV3660 , 004530 , M5Stack , U082 , RTC , Camera , Microcontroller (MCU) , GPIO , UART , USB CDC , I2S , PWM , SPI , I2C , DAC , ADC , Wi-Fi , Bluetooth

Specifications

General
Brand M5Stack
Manufacturer model/SKU U082
Features RTC
Camera
Battery charger
Microcontroller (MCU)
Battery protection circuit
General physical appearance
Main color Black
Weight [g] 6
Dimension X [mm] 45
Dimension Y [mm] 20
Mounting options Mounting hole(s)
Form factor M5Stack Unit
Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 20
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32
Maximum clock frequency [MHz] 240
Number of cores 2
Internal memory
SRAM [KB] 520
PSRAM [MB] 8
Flash memory [MB] 4
EEPROM type Emulated
Communication
Hardware interface(s) ADC
DAC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC
Available GPIO pins 4, 13
Number of IO-pins 2
Maximum available hardware PWM channels 2
Maximum available analog input pins (ADC) 2
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 1
Maximum available hardware I2C interfaces 1
Maximum available hardware SPI interfaces 0
USB to serial converter FTDI compatible
Wireless communication
Interface(s) Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32
Bluetooth version 4.2
Supported Bluetooth standard(s) LE
Classic
Scanner/camera
Type Camera
Sensor(chip) OV3660
Lense type Normal
Number of pixels long side 2048
Number of pixels short side 1536
Maximum frame rate [Hz] 120
(320x240 (QVGA))
60
(640x480 (VGA))
45
(1280x720 (720p) or 1024x768 (XGA))
20
(1920x1080 (1080p))
15
(2048x1536)
Pixel colors RGB
Global/rolling shutter Rolling
Maximum viewing angle (diagonal) [°] 66.5
RTC
RTC chip BM8563
Back-up battery/capacitor None
Battery circuit
Battery charger chip/SoC TP4057
Supported battery chemistry Li-Po
Li-ion
Maximum charging voltage [V] 4.2
Maximum charging current [mA] 200
Adjustable charging current No
Protection circuit No
Connectors
Power supply connector(s) USB-C female
HY2.0 (Grove) male
IO-connector(s) USB-C female
HY2.0 (Grove) male
Battery connector(s) JST-SH (compatible) male
Wi-Fi/Bluetooth antenna connector Built-in antenna
Package contents
Package contents 1x Development board
