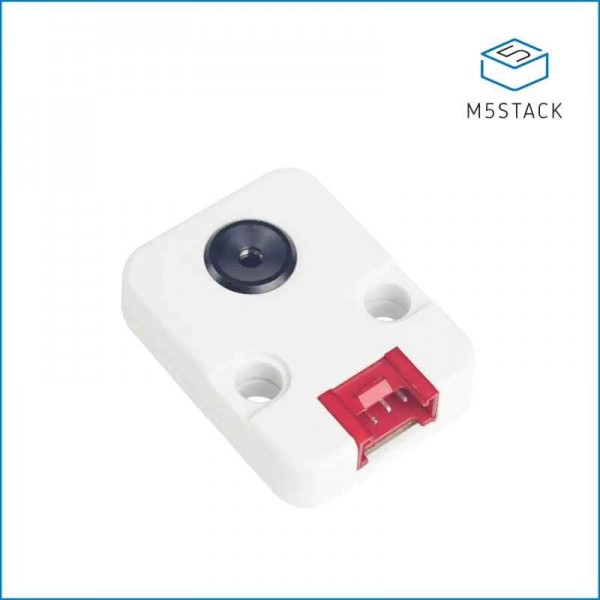

M5Stack Thermal Camera Unit - MLX90640

M5Stack Thermal Camera Unit - MLX90640
M5Stack Thermal Camera Unit - MLX90640
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004539
Based on 0 review(s) - Write a review
€100.75
Ex Tax: €83.26
Add to Cart
Add to wishlist

This is a thermal camera with a Grove connection for M5Stack. The module works via I2C communication.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Thermal Camera Unit - MLX90640

This product has 0 review(s) in total.

Tags: M5Stack , Unit , M5Stack Thermal Camera Unit - MLX90640 , 004539 , M5Stack , U016 , Camera , Temperature sensor , Enclosure , I2C

Specifications

General
Brand M5Stack
Manufacturer model/SKU U016
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
Features Camera
Enclosure
Temperature sensor
General physical appearance
Main color White
Weight [g] 5
Dimension X [mm] 32
Dimension Y [mm] 24
Dimension Z [mm] 9
Mounting options LEGO (compatible) holes
Form factor M5Stack Unit
Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2C
Default I2C address 0x33
Adjustable I2C address No
Built-in pull-up resistor(s) [kΩ] 4.7
Scanner/camera
Type Camera
Sensor(chip) MLX90640
Lense type Normal
Number of pixels long side 32
Number of pixels short side 24
Maximum viewing angle (diagonal) [°] 133
Horizontal viewing angle (inclination) [°] 110
Vertical viewing angle (elevation) [°] 75
Temperature sensor
Sensor (chip) MLX90640
Minimum measuring range [°C] -40
Maximum measuring range [°C] 300
Connectors
Power supply connector(s) HY2.0 (Grove) male
IO-connector(s) HY2.0 (Grove) male
Package contents
Package contents 1x Grove female cable
1 x Unit Thermal
