Name: M5Stack PoECAM-W PoE Camera - OV2640 - with Wi-Fi - M5STACK-U121-B
Brand: M5Stack
SKU: 004727
Price: 46 EUR
Availability: InStock

M5Stack PoECAM-W PoE Camera - OV2640 - with Wi-Fi

Availability: Directly available from warehouse in Eindhoven
SKU: 004727

Based on 0 review(s) - Write a review

€46.00

Ex Tax: €38.02

Qty

Add to Cart

Add to wishlist

Only 2 pieces in stock

Description
Reviews

There is no product description available yet.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack PoECAM-W PoE Camera - OV2640 - with Wi-Fi

Average Rating:

This product has 0 review(s) in total.

Tags: M5Stack PoECAM-W PoE Camera - OV2640 - with Wi-Fi , M5STACK-U121-B , Camera

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	U121-B
Features	Camera Microcontroller (MCU) PoE
General physical appearance
Main color	Gray/silver
Weight [g]	39
Dimension X [mm]	64
Dimension Y [mm]	24
Dimension Z [mm]	18
Mounting options	Pin headers Mounting hole(s) Screw thread LEGO (compatible) holes
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5 (cia Grove) 37 (via RJ45 PoE)
Maximum supply voltage [V DC]	57 (via RJ45 PoE) 5 (via Grove)
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	20
Maximum IO-pin sink current [mA]	28
MCU
Manufacturer	Espressif
Chip series	ESP32
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	520
PSRAM [MB]	8
Flash memory [MB]	16
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI UART PWM ADC DAC GPIO Ethernet
Number of IO-pins	5
Maximum available hardware PWM channels	5
Maximum available analog input pins (ADC)	3
Maximum available analog output pins (DAC)	1
Maximum available hardware UART interfaces	2
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	1
USB to serial converter	None
Ethernet chip/SoC	W5500
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32
Bluetooth version	4.2
Supported Bluetooth standard(s)	LE Classic
Scanner/camera
Type	Camera
Sensor(chip)	OV2640
Lense type	Normal
Number of pixels long side	1600
Number of pixels short side	1220
Maximum viewing angle (diagonal) [°]	65
Voltage converter
Chip/SoC	KTA1136
Voltage converter type	Buck
Conversion	DC-DC
Isolated	Yes
Output voltage type	Fixed
Minimum input voltage [V DC]	37
Maximum input voltage [V DC]	57
Minimum output voltage [V DC]	5
Maximum output voltage [V DC]	5
Maximum output current [A]	1.2
Maximum output power [W]	6
Connectors
Power supply connector(s)	HY2.0 (Grove) male RJ45 female
IO-connector(s)	HY2.0 (Grove) male Pin header female (2.54mm) RJ45 female
Input voltage connector(s)	RJ45 female
Output voltage connector(s)	HY2.0 (Grove) male
Wi-Fi/Bluetooth antenna connector	Built-in antenna IPEX MHF 1/uFL male
Package contents

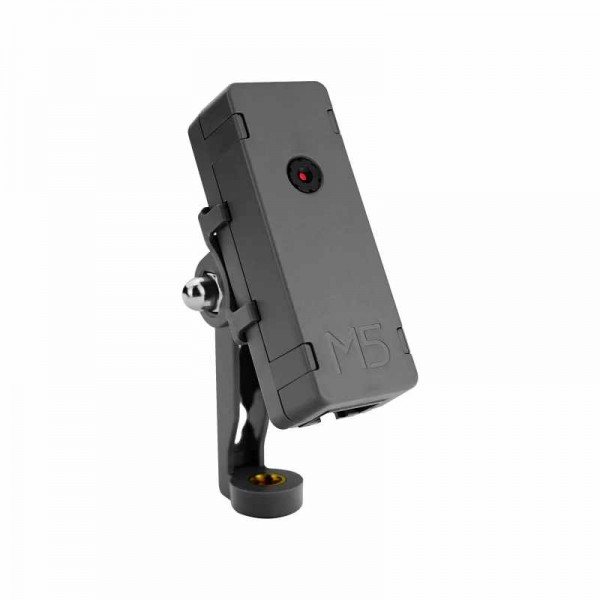

Package contents	1x PoECAM-W 1x LEGO compatible mounting piece 1x Tiltable mounting piece
