M5Stack DIY Camera Unit Kit - Fisheye and Standard Lens - OV2640

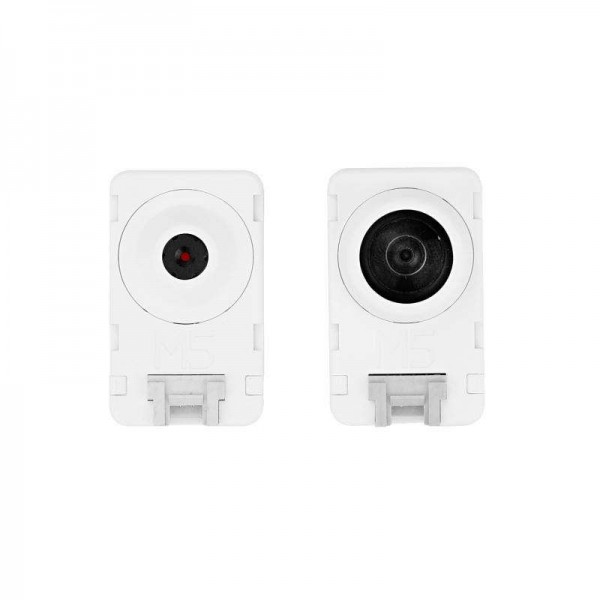

This is a DIY camera kit from M5Stack, with which the M5Stack CameraX module or M5Stack CameraF module can be built. This kit contains both the lens for the CameraX and CameraF module, and you can choose which lens is installed. The Unit is based on an ESP32, so you can easily connect this product with Bluetooth or Wi-Fi. This Camera Unit can be programmed via Arduino, MicroPython and UIFlow.

Specifications:

• Supply voltage: 5V DC (via 5V pin) or 3.3V (via 3V3 pin)
• GPIO voltage: 3.3V
• Microcontroller:

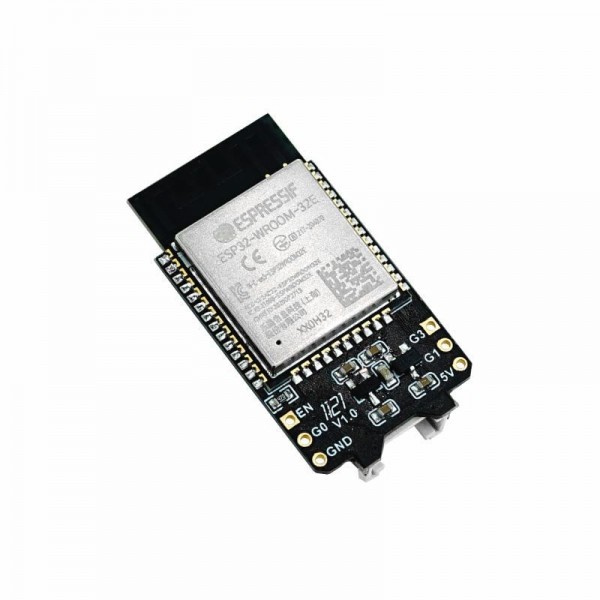

  • Chip: ESP32-WROOM-32E
  • Operating frequency: 240MHz
  • Processor cores: 2
  • SRAM: 520kB
  • Flash memory: 4MB
  • Built-in Wi-Fi
  • Built-in Bluetooth
• USB to serial converter: None (use an external one, this one is recommended: ESP32 Downloader Kit)
• Camera:

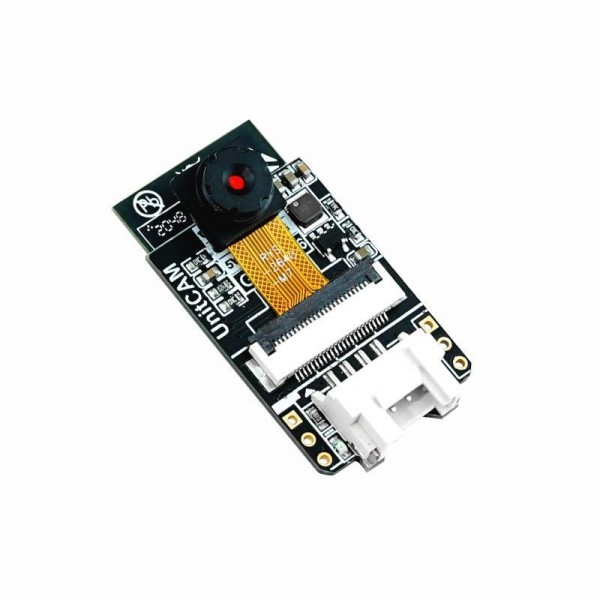

  • Camera sensor: OV2640
  • Maximum resolution: 1600 x 1200 pixels
  • Maximum image transfer rate:
    • UXGA/SXGA: 15fps
    • SVGA: 30fps
    • CIF: 60fps
  • Standard lens:
    • Focal length: 4.8±5%mm
    • Aperture: 2.4±5%
    • Camera angle: 65°
  • Fisheye lens:
    • Focal length: 1.0±5%mm
    • Aperture: 2.2±5%
    • Camera angle: 160°
• Grove interfaces: 1
  • 1x UART
• Dimensions (with standard lens): 40 x 24 x 11mm
• Dimensions (with fisheye lens): 40 x 24 x 17.2mm

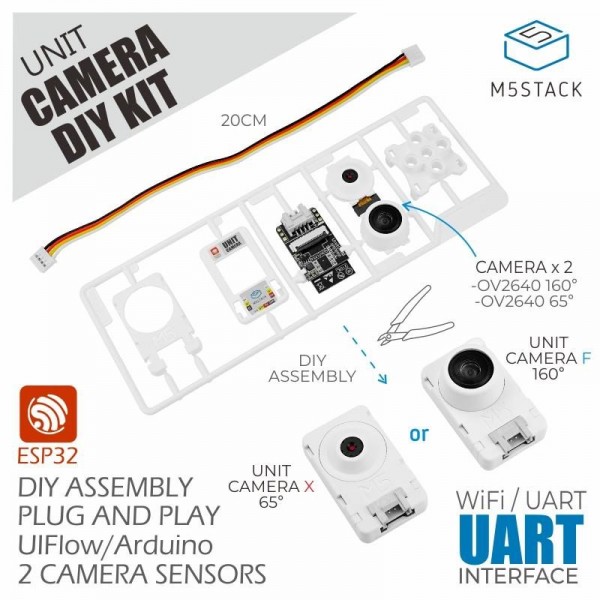

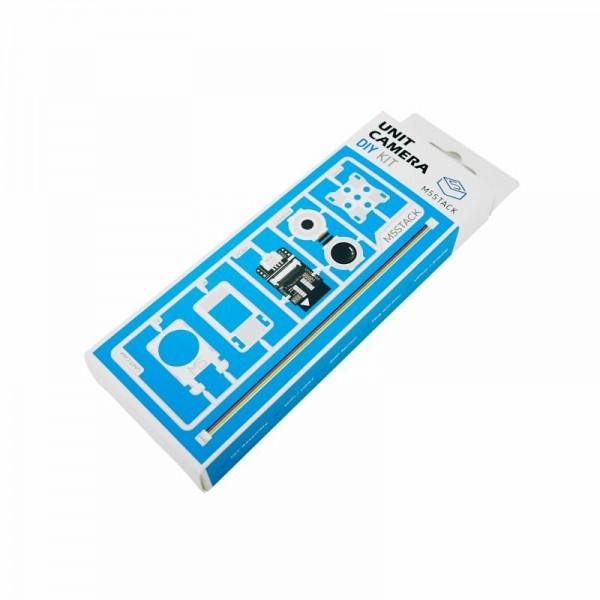

Package contents:

• 1x Front of casing
• 1x Back of casing
• 1x LEGO^® mount

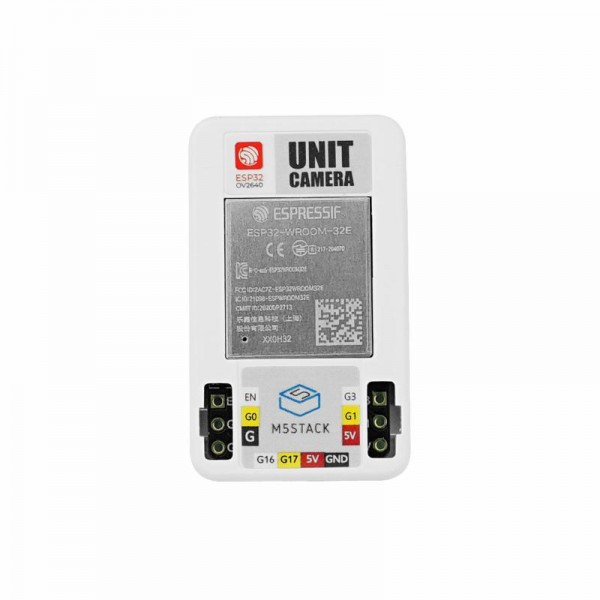

• 1x Camera Unit ESP32 module
• 1x Fisheye camera lens
• 1x Standard camera lens
• 1x Grove cable (~20cm)

See the following page for more information: M5Stack DIY Camera Unit Kit.
