Name: M5Stack CamS3 Unit - ESP32-S3 - PY260 Camera - with Microphone - M5STACK-U174-B
Brand: M5Stack
SKU: 006549
Price: 21 EUR
Availability: InStock

M5Stack CamS3 Unit - ESP32-S3 - PY260 Camera - with Microphone

Availability: Directly available from warehouse in Eindhoven
SKU: 006549

Based on 0 review(s) - Write a review

€21.00

Ex Tax: €17.36

Qty

Add to Cart

Add to wishlist

Only 2 pieces in stock

Description
Reviews

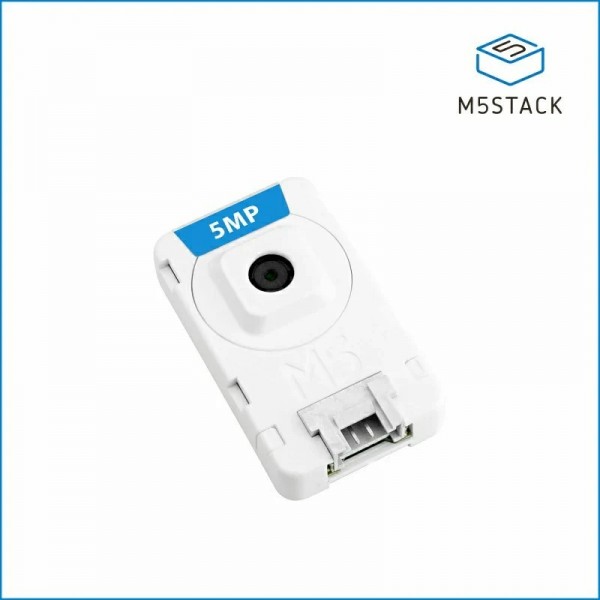

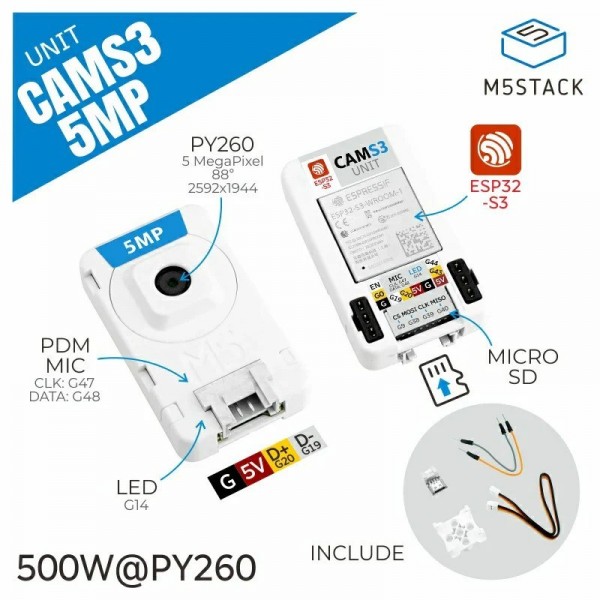

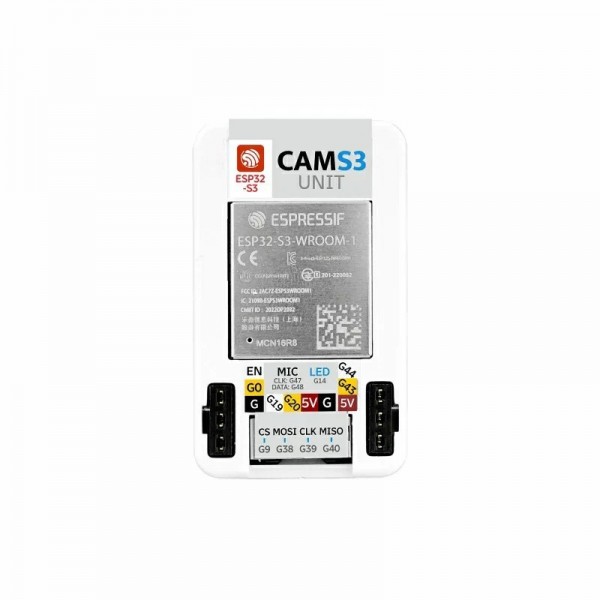

The CamS3 Unit from M5Stack is a compact camera unit based on the ESP32-S3 chipset. The unit features Wi-Fi, a microphone and a camera. The unit can be expanded with extra storage space via the MicroSD card slot. The unit can be programmed via the Grove port (Grove to USB-C adapter is included), or via the pin headers via an external USB to serial converter (not included).

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack CamS3 Unit - ESP32-S3 - PY260 Camera - with Microphone

Average Rating:

This product has 0 review(s) in total.

Tags: M5Stack CamS3 Unit - ESP32-S3 - PY260 Camera - with Microphone , M5STACK-U174-B , Unit

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	U174-B
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40
Features	Camera Microcontroller (MCU) SD-card adapter Enclosure Microphone
General physical appearance
Main color	White
Weight [g]	9
Dimension X [mm]	40
Dimension Y [mm]	24
Dimension Z [mm]	11
Mounting options	LEGO (compatible) holes (via mounting bracket)
Form factor	Module (general) M5Stack Unit
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU
Manufacturer	Espressif
Chip series	ESP32-S3
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	512
PSRAM [MB]	8
Flash memory [MB]	16
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI Native USB UART PWM ADC GPIO USB CDC
Number of IO-pins	5
Maximum available hardware PWM channels	5
Maximum available analog input pins (ADC)	2
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	2
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	1
USB to serial converter	Integrated into microcontroller
Supported SD card size	Micro SD
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-S3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-S3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
Scanner/camera
Type	Camera
Sensor(chip)	PY260
Lense type	Normal
Number of pixels long side	2592
Number of pixels short side	1944
Maximum viewing angle (diagonal) [°]	88
Sound sensor
Sensor (chip(s))	MSM261D4030H1CPM
Type	Microphone
Sensor technology	MEMS
Connectors
Power supply connector(s)	HY2.0 (Grove) male Pin header female (2.54mm)
IO-connector(s)	HY2.0 (Grove) male Pin header female (2.54mm)
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Enclosure
Material	Polycarbonate (PC)
Package contents
Package contents	1x CamS3 Unit 1x Grove to USB-C adapter 2x Male-Male jumper cable 1x Grove cable 1x LEGO mounting bracket
