M5Stack AtomS3R-M12 Camera Kit - ESP32-S3-PICO Development Board - OV3660 Camera
- Availability: Directly available from warehouse in Eindhoven
- SKU: 006790
€23.00
Ex Tax: €19.01

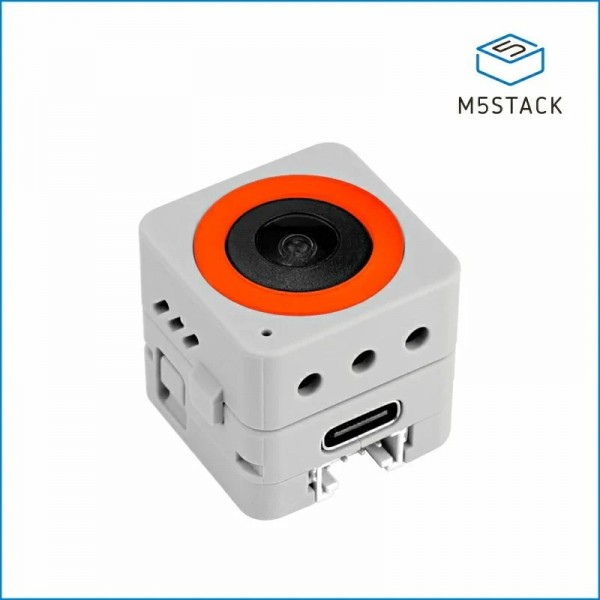

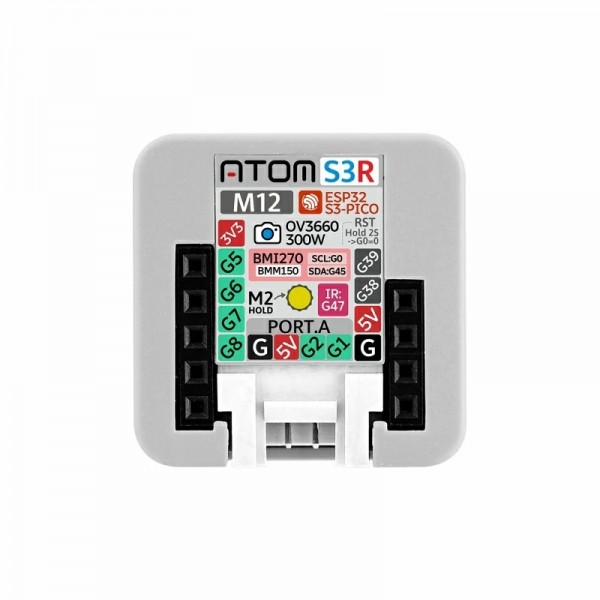

A development board from M5Stack based on a ESP32-S3-PICO-1 microcontroller by Espressif with multiple sensors. Thanks to the built-in USB connector, it is easy to program. A special feature of this board is the built-in OV3660 camera that can be used to take photos and/or videos. For extra connectivity, the board has multiple wireless communication interfaces (including Wi-Fi/Bluetooth).
See the following page for more information: Wiki
Reviews Over M5Stack AtomS3R-M12 Camera Kit - ESP32-S3-PICO Development Board - OV3660 Camera
This product has 0 review(s) in total.
Report this review.
Tags:
M5Stack AtomS3R-M12 Camera Kit - ESP32-S3-PICO Development Board - OV3660 Camera
, M5STACK-C126-M12
, Camera
Specifications
| General | |
| Brand | M5Stack |
| Manufacturer model/SKU | C126-M12 |
| Minimum operating temperature [°C] | 0 |
| Maximum operating temperature [°C] | 40 |

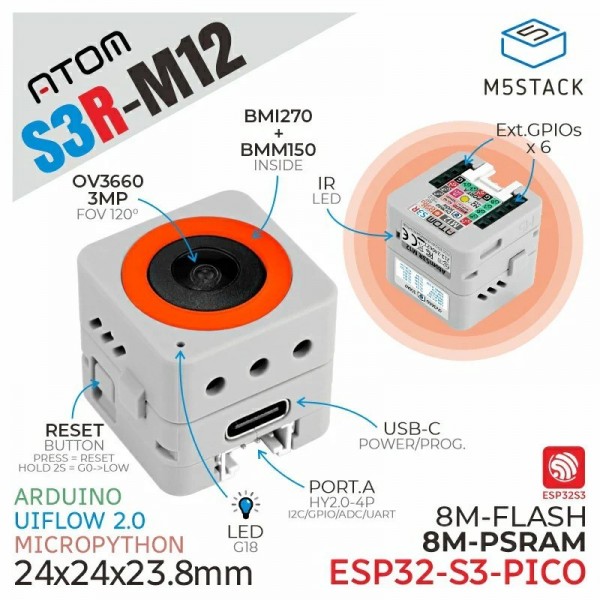

| Features | Camera Microcontroller Enclosure Acceleration sensor Magnetometer Gyroscope Programmable button(s) |
| General physical appearance | |
| Main color | Gray/silver |
| Weight [g] | 11 |
| Dimension X [mm] | 26 |
| Dimension Y [mm] | 24 |
| Dimension Z [mm] | 23 |
| Mounting options | Pin headers Screw thread |
| Thread size | M2 |
| Form factor | Module (general) M5Stack Atom layout/shield |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 40 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU/SoC | |
| Manufacturer | Espressif |
| Chip series | ESP32-S3-PICO-1 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 512 |
| PSRAM [MB] | 8 |
| Flash memory [MB] | 8 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | I2C I2S SPI Native USB UART PWM ADC GPIO USB CDC |
| Number of IO-pins | 8 |
| Maximum available hardware PWM channels | 8 |
| Maximum available analog input pins (ADC) | 6 |
| Maximum available analog output pins (DAC) | 0 |
| Maximum available hardware UART interfaces | 3 |
| Maximum available hardware I2C interfaces | 2 |
| Maximum available hardware SPI interfaces | 2 |
| USB to serial converter | Integrated into microcontroller |
| Wireless communication | |
| Interface(s) | Wi-Fi Bluetooth IR |
| Wi-Fi chip/SoC | ESP32-S3-PICO-1 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32-S3-PICO-1 |
| Bluetooth version | 5.0 |
| Supported Bluetooth standard(s) | LE |
| IR receiver/transmitter | Transmitter |
| Scanner/camera | |
| Type | Camera |
| Sensor(chip) | OV3660 |
| Lense type | Wide |
| Number of pixels long side | 2048 |
| Number of pixels short side | 1536 |
| Maximum frame rate [Hz] | 120 (320x240 (QVGA)) 60 (640x480 (VGA)) 45 (1280x720 (720p) or 1024x768 (XGA)) 20 (1920x1080 (1080p)) 15 (2048x1536) |
| Focal length [mm] | 1.8 |
| Aperture | 2.4 |
| Maximum viewing angle (diagonal) [°] | 120 |
| Acceleration sensor | |
| Sensor chip/SoC | BMI270 |
| Degrees of freedom (DOF) | 3 |
| Maximum measuring range [±g] | 16 |
| Maximum resolution [bit] | 16 |
| Gyroscope | |
| Sensor chip/SoC | BMI270 |
| Degrees of freedom (DOF) | 3 |
| Maximum measuring range [±°/s] | 2000 |
| Maximum resolution [bit] | 16 |
| Magnetometer | |
| Sensor (chip) | BMM150 |
| Type | Compass |
| Degrees of freedom (DOF) | 3 |
| Minimum measuring range [mT] | 0.0 |
| Maximum measuring range [mT] | 1.3 (x-axis, y-axis) 2.5 (z-axis) |
| Smallest resolution [mT] | 0.0003 |
| Connectors | |
| Power supply connector(s) | HY2.0 (Grove) male Pin header female (2.54mm) USB-C female |
| IO-connector(s) | HY2.0 (Grove) male Pin header female (2.54mm) USB-C female |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna |
| Enclosure | |
| Material | Polycarbonate (PC) |
| Package contents | |
| Package contents | 1x AtomS3R-M12 |
