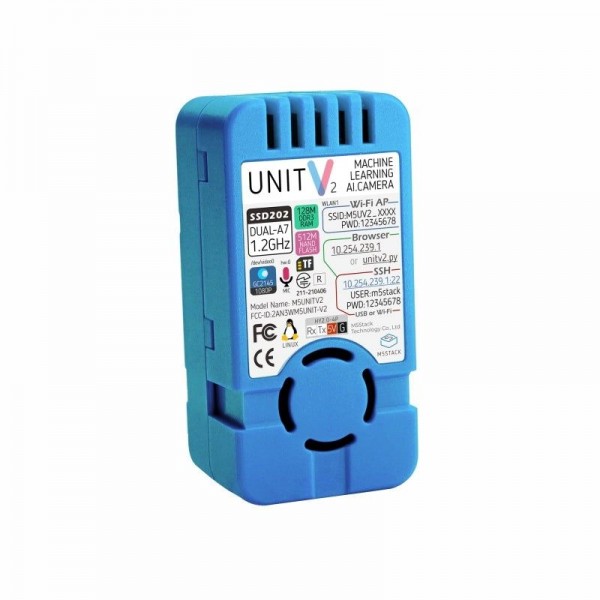

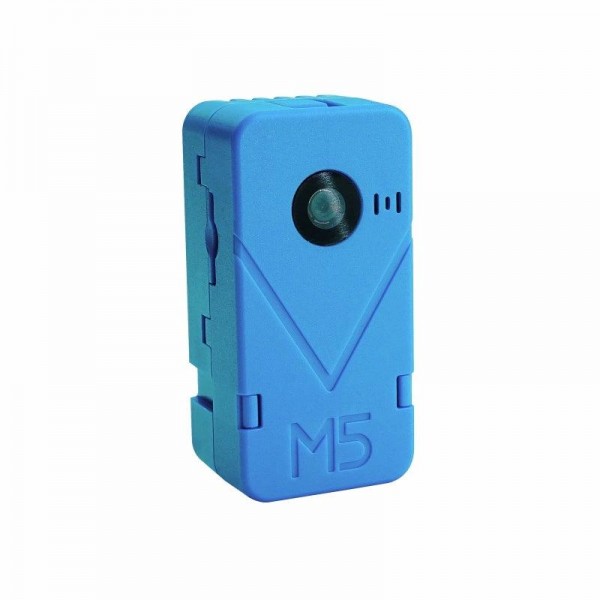

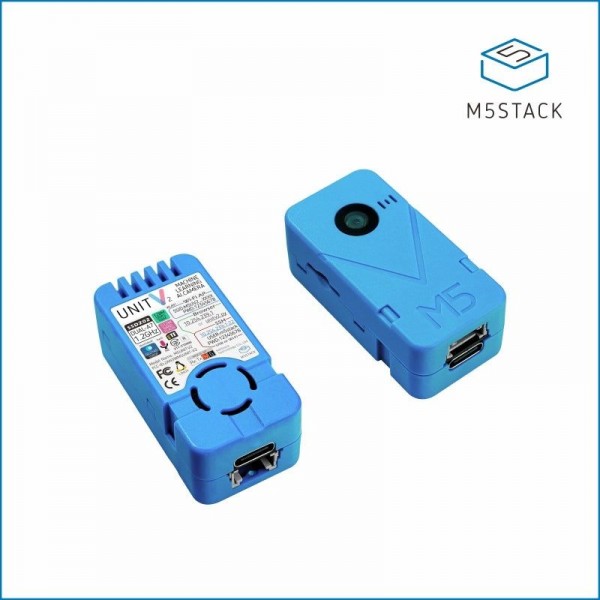

M5Stack AI Camera Unit-V2 - SSD202D

The AI Camera Unit-V is a Linux-based camera module that runs on a Sigmstar SSD202D chipset. The board has a 32-bit dual-core Cortex-A7 CPU along with a GC2145 camera sensor on board. Together, this makes for great low-light photos and the ability to combine it with Machine Vision (AI face recognition, object tracking, and more).

The module has a USB-C connection with which it can be programmed and/or powered.

Specifications:

• Supply voltage: 5V DC (via USB-C or Grove)
• Microcontroller:
  • Chip: Sigmastar SSD202D
  • Clock frequency: 1.2GHz
  • Number of cores: 2 (Cortex A7)
  • Flash memory: 512MB
  • DDR3: 128MB
  • Built-in Wi-Fi
• Camera:
  • Sensor: GC2145
  • Maximum resolution: 1080P
  • Viewing angle: 68°
• Ethernet:
  • Chip: SR9900
  • Connector: USB-C
• Built-in microphone
• SD card adapter:
  • Type: MicroSD
• Built-in push button
• Grove interface: 1x UART
• Operating temperature: 0 - 60°C
• Dimensions: 48 x 18.5 x 24mm

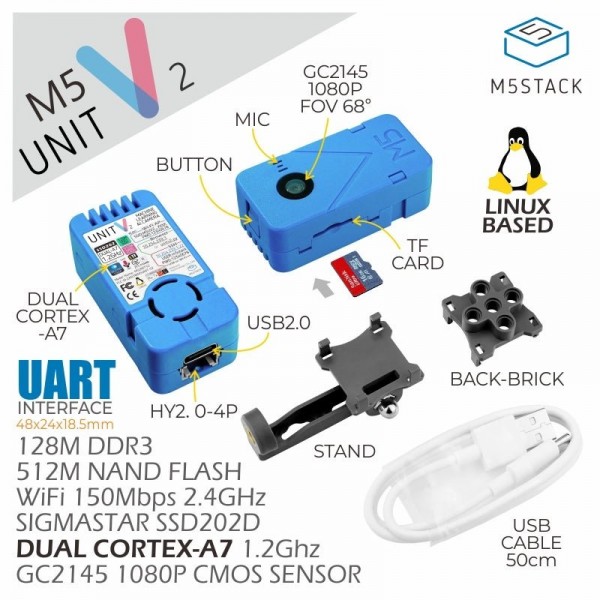

Package contents:

• 1x AI Camera Unit-V2
• 1x USB-C cable
• 1x SD Card 16GB

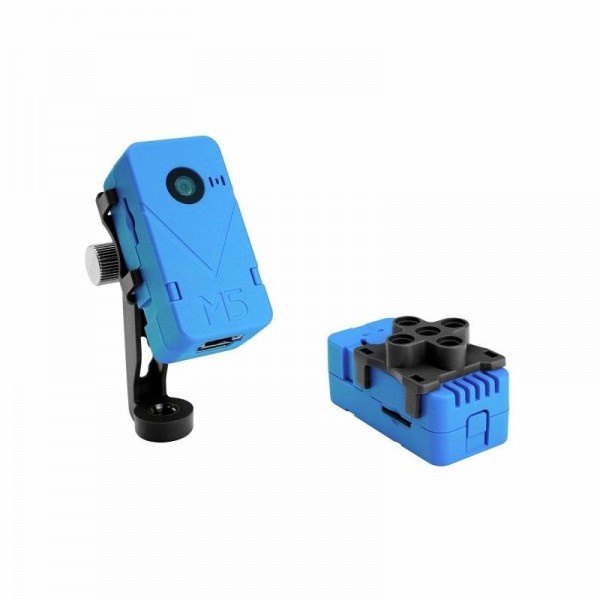

• 1x Mount

See the following page for more information: M5Stack Unit-V2
