Name: M5Stack Atomic Stepmotor Base - DRV8825 - M5STACK-A132
Brand: M5Stack
SKU: 005775
Price: 10 EUR
Availability: InStock

M5Stack Atomic Stepmotor Base - DRV8825

Availability: Directly available from warehouse in Eindhoven
SKU: 005775

Based on 0 review(s) - Write a review

€10.00

Ex Tax: €8.26

Qty

Add to Cart

Add to wishlist

Only 5 pieces in stock

Description
Reviews

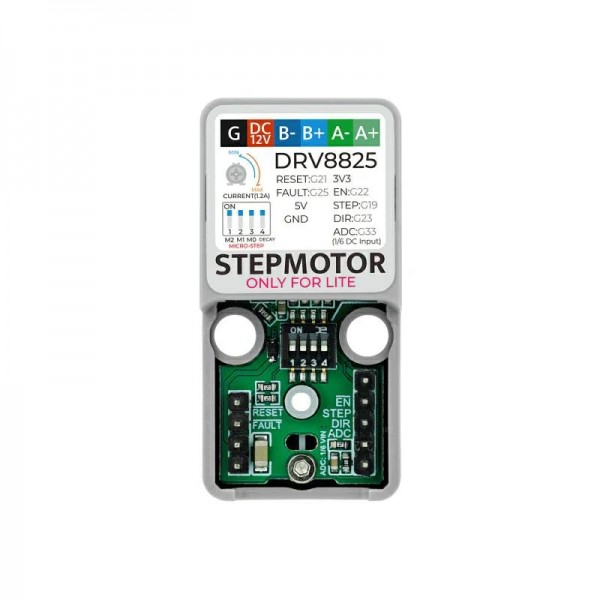

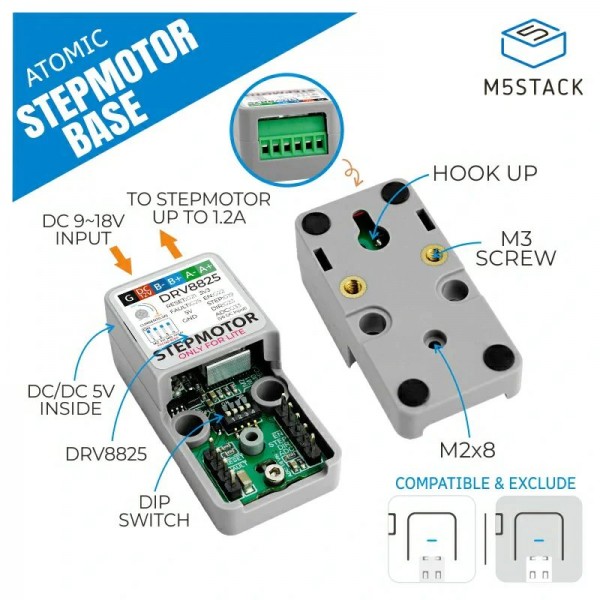

The Atomic Stepmotor Base is a stepper motor driver module for the M5Atom series development boards. The module has a built-in DC/DC converter that converts 9-18V external power to 5V for the M5Atom.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Atomic Stepmotor Base - DRV8825

Average Rating:

This product has 0 review(s) in total.

Tags: M5Stack Atomic Stepmotor Base - DRV8825 , M5STACK-A132 , Stepper Motor Controllers and Drivers

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	A132
Features	Motor driver Voltage converter Enclosure
General physical appearance
Main color	Gray/silver
Weight [g]	12

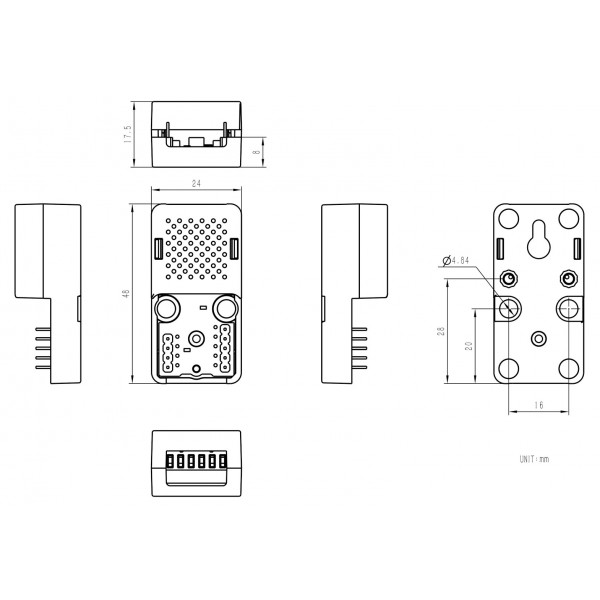

Dimension X [mm]	48
Dimension Y [mm]	24
Dimension Z [mm]	18
Mounting options	Mounting hole(s) Screw thread LEGO (compatible) holes
Thread size	M3
Form factor	Module (general) M5Stack Atom layout/shield
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	3.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	Digital (Step/Dir)
Voltage converter
Chip/SoC	JW5033S
Voltage converter type	Buck
Conversion	DC-DC
Isolated	No
Soft start	Yes
Output voltage type	Fixed
Constant current function	No
Maximum switching frequency [kHz]	800
Minimum input voltage [V DC]	9.0
Maximum input voltage [V DC]	18
Minimum output voltage [V DC]	5
Maximum output voltage [V DC]	5
Maximum output current [A]	2.0
Maximum output power [W]	10
Safety features	Short circuit Overcurrent (output) Temperature
Motor driver
Type	Driver
Driver chip	DRV8825
Supported motor type(s)	Stepper motor
Direction of rotation	Bi-directional
Number of stepper motor channels	1
Microstepping	1/2 1 (full step) 1/4 1/8 1/16 1/32
Minimum motor supply voltage [V DC]	9
Maximum motor supply voltage [V DC]	18
Motor voltage [V DC]	Equal to motor supply voltage
Maximum continuous RMS current per phase [A]	1.2
Current limiter	Yes, adjustable (via potentiometer)
Measuring resistance [Ω]	0.2
Safety features	Temperature Undervoltage Overcurrent
Connectors
Power supply connector(s)	Screw terminal Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)

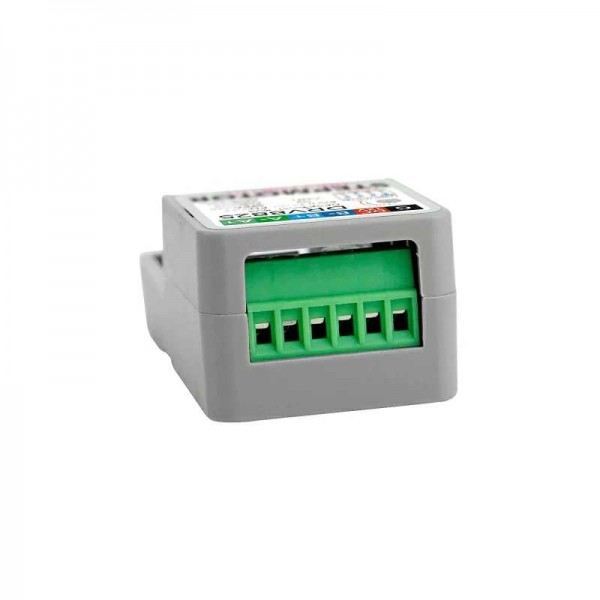

Motor connector(s)	Screw terminal
Output voltage connector(s)	Screw terminal
Enclosure
Material	Polycarbonate (PC)
Package contents
Package contents	1x Atomic Stepmotor base
