M5Stack Atomic Speaker Base

M5Stack Atomic Speaker Base
M5Stack Atomic Speaker Base
M5Stack Atomic Speaker Base
M5Stack Atomic Speaker Base
M5Stack Atomic Speaker Base
M5Stack Atomic Speaker Base
M5Stack Atomic Speaker Base
M5Stack Atomic Speaker Base
M5Stack Atomic Speaker Base
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005772
€9.00
Ex Tax: €7.44

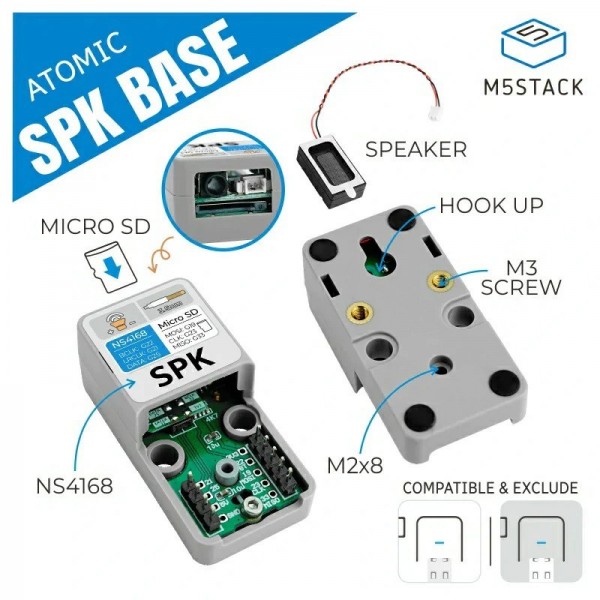

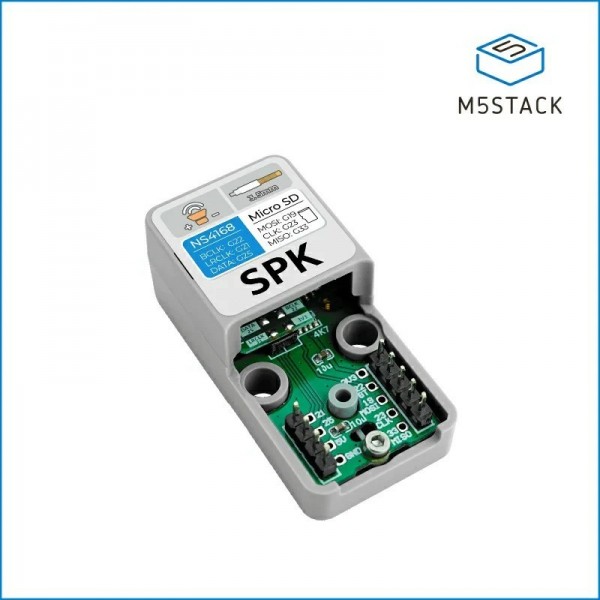

An audio module made for the M5Stack Atom series, including built-in audio amplifier, speaker and headphone output.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Atomic Speaker Base

This product has 0 review(s) in total.

Specifications

General
Brand M5Stack
Manufacturer model/SKU A098
Features SD-card adapter
Audio amplifier
Enclosure
Speaker/buzzer
General physical appearance
Main color Gray/silver
Weight [g] 13
(incl. speaker)
Dimension X [mm] 48
Dimension Y [mm] 24
Dimension Z [mm] 18

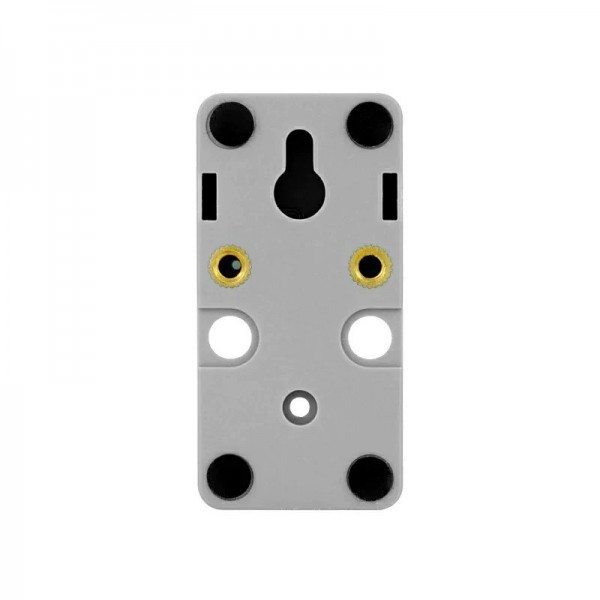

Mounting options Mounting hole(s)
Screw thread
LEGO (compatible) holes
Thread size M3
Form factor Module (general)
M5Stack Atom layout/shield
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 3.3
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2S
SPI
Supported SD card size Micro SD
Audio amplifier
Amplifier chip NS4168
Number of (normal) channels 1
Maximum power per (normal) channel [W] 1.0
(@4Ω)
Minimum speaker impedance per (normal) channel [Ω] 4
Maximum speaker impedance per (normal) channel [Ω] 8
Speaker
Speaker type Standard
Impedance [Ω] 8
Maximum nominal (RMS) power [W] 1
Connectors
Power supply connector(s) Pin header male (2.54mm)
Through hole solder pin(s) (2.54mm)
IO-connector(s) Pin header male (2.54mm)
Through hole solder pin(s) (2.54mm)

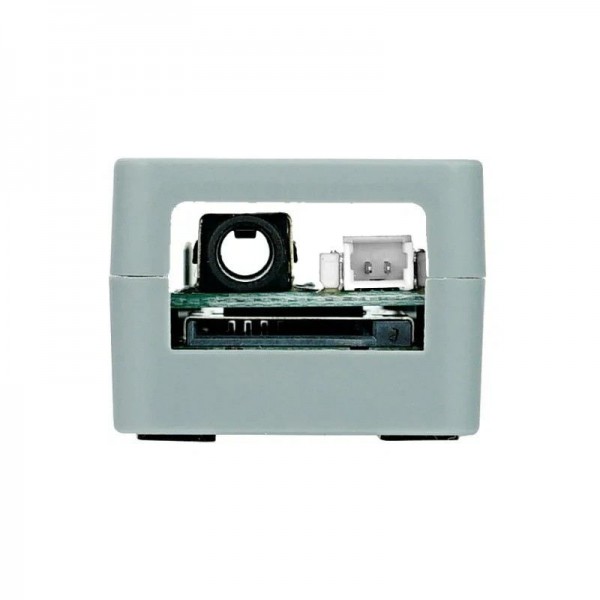

Audio jack 3.5mm female
Speaker connector(s) JST-PH (compatible) male
Enclosure
Material Polycarbonate (PC)
Package contents
Package contents 1x Atom Speaker Base
