M5Stack Atomic RS232 Base

M5Stack Atomic RS232 Base
M5Stack Atomic RS232 Base
M5Stack Atomic RS232 Base
M5Stack Atomic RS232 Base
2-4 Weeks
M5Stack Atomic RS232 Base
M5Stack Atomic RS232 Base
M5Stack Atomic RS232 Base
M5Stack Atomic RS232 Base
M5Stack Atomic RS232 Base
  • Availability: 2-4 Weeks
  • SKU: 005597
Based on 0 review(s) - Write a review
€10.25
Ex Tax: €8.47
10 or more €10.00
20 or more €9.75
Add to Cart
Add to wishlist

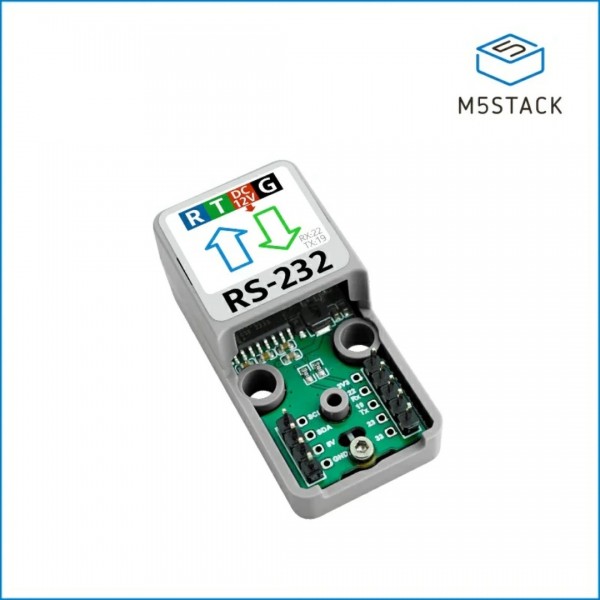

The Atomic RS232 Base is a module for the M5Atom series that converts RS232 to UART. The module has a built-in DC/DC converter that converts 12V RS232 voltage to 5V for the M5Atom. In addition, the module can also be powered via the M5Atom.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Atomic RS232 Base

This product has 0 review(s) in total.

Tags: M5Stack , Atom , M5Stack Atomic RS232 Base , 005597 , M5Stack , A136 , Enclosure , UART , RS232

Specifications

General
Brand M5Stack
Manufacturer model/SKU A136
Features Enclosure
General physical appearance
Main color Gray/silver
Weight [g] 9
Dimension X [mm] 48
Dimension Y [mm] 24
Dimension Z [mm] 18
Mounting options Screw thread
Mounting hole(s)
LEGO (compatible) holes
Diameter mounting hole(s) [mm] 3.1
Thread size M3
Form factor Module (general)
M5Stack Atom layout/shield
General electrical properties
Minimum supply voltage [V DC] 5
(via pin header)
7
(via detachable block)
Maximum supply voltage [V DC] 12
(via detachable block)
5
(via pin header)
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) UART
RS232
Isolated communication No
RS232 chip MAX232E
Number of RS232 channels 1
Connectors
Power supply connector(s) Pin header male (2.54mm)

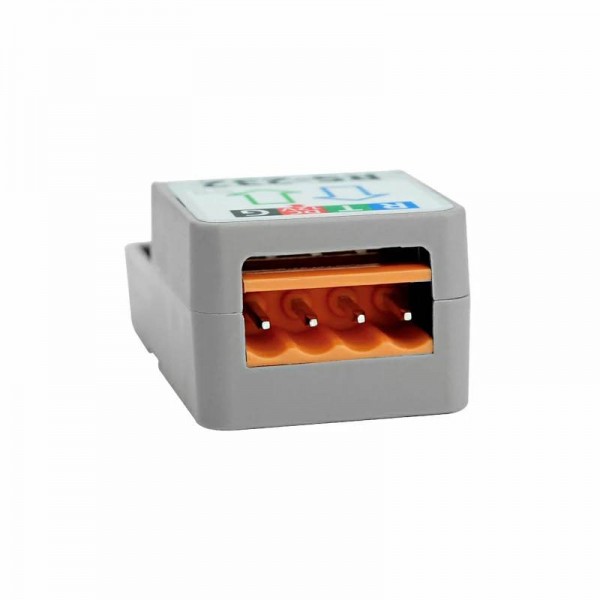

Detachable block male (HT3.96)
IO-connector(s) Pin header male (2.54mm)
Detachable block male (HT3.96)
Enclosure
Material Polycarbonate (PC)
Package contents

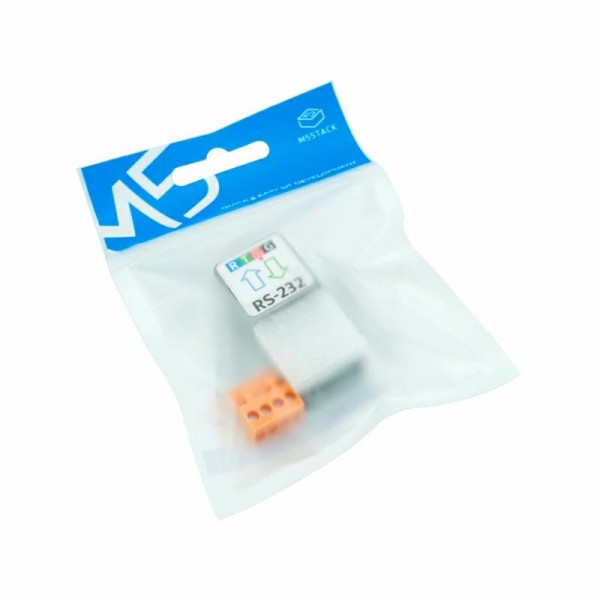

Package contents 1x Atomic RS232 Base
1x Detachable screw terminal (HT3.96)
