M5Stack Atomic H-Driver Base - DRV8876

M5Stack Atomic H-Driver Base - DRV8876
M5Stack Atomic H-Driver Base - DRV8876
M5Stack Atomic H-Driver Base - DRV8876
M5Stack Atomic H-Driver Base - DRV8876
M5Stack Atomic H-Driver Base - DRV8876
M5Stack Atomic H-Driver Base - DRV8876
M5Stack Atomic H-Driver Base - DRV8876
M5Stack Atomic H-Driver Base - DRV8876
M5Stack Atomic H-Driver Base - DRV8876
M5Stack Atomic H-Driver Base - DRV8876
M5Stack Atomic H-Driver Base - DRV8876
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006049
Based on 0 review(s) - Write a review
€8.50
Ex Tax: €7.02
Add to Cart
Add to wishlist

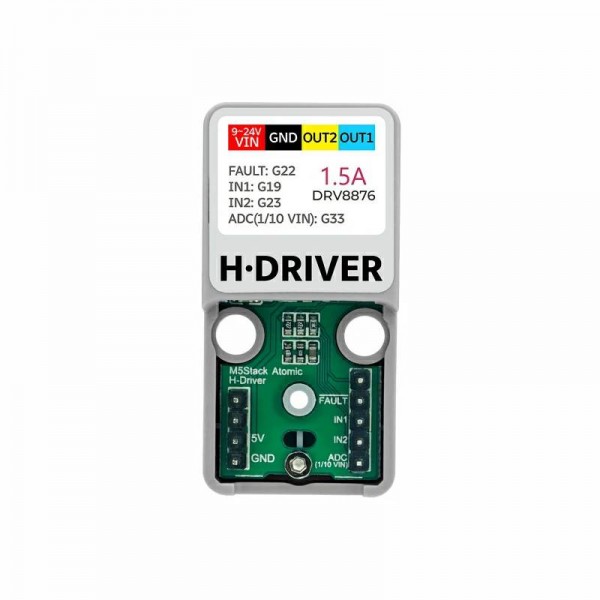

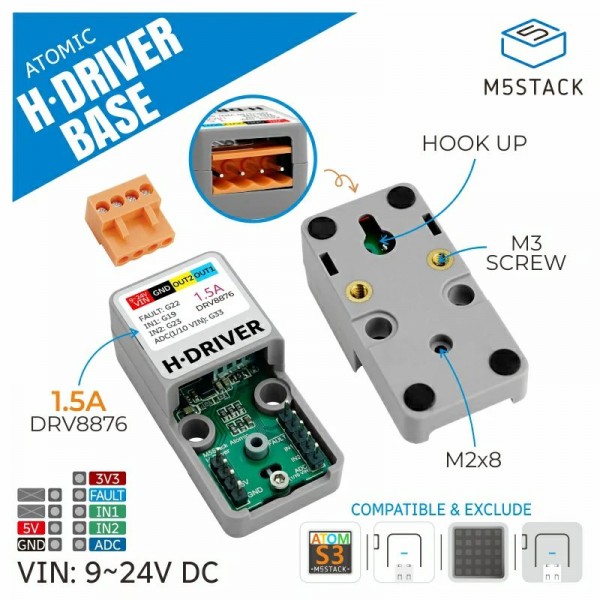

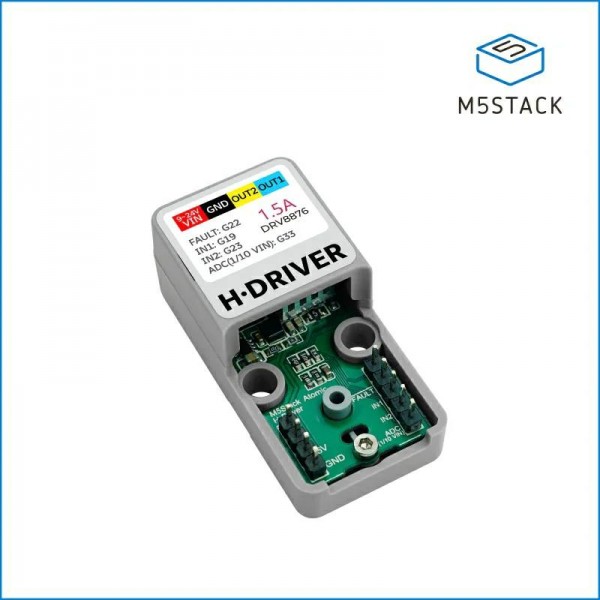

The Atomic H-Driver Base is an H-bridge motor driver module from M5Stack made for an M5Atom. In addition to the motor driver, the module also has a voltage converter that can power the Atom, so it does not need to be powered externally.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Atomic H-Driver Base - DRV8876

This product has 0 review(s) in total.

Tags: Motor Controllers and Drivers , DC-Motor Controllers and Drivers , M5Stack Atomic H-Driver Base - DRV8876 , 006049 , M5Stack , A092 , Motor driver , Digital

Specifications

General
Brand M5Stack
Manufacturer model/SKU A092
Features Motor driver
General physical appearance
Main color Gray/silver
Weight [g] 11
Dimension X [mm] 48
Dimension Y [mm] 24
Dimension Z [mm] 18

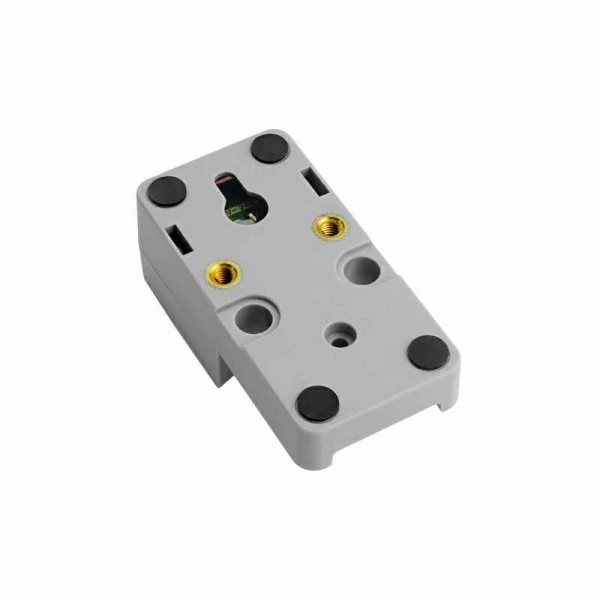

Mounting options Screw thread
Mounting hole(s)
LEGO (compatible) holes
Diameter mounting hole(s) [mm] 3.2
Thread size M3
Form factor Module (general)
M5Stack Atom layout/shield
General electrical properties
Minimum supply voltage [V DC] 9
Maximum supply voltage [V DC] 24
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) Digital
Voltage converter
Chip/SoC SY8303
Voltage converter type Buck
Conversion DC-DC
Isolated No
Soft start Yes
Output voltage type Fixed
Constant current function No
Minimum input voltage [V DC] 9.0
Maximum input voltage [V DC] 24
Minimum output voltage [V DC] 5
Maximum output voltage [V DC] 5
Maximum output current [A] 0.4
Maximum output power [W] 2
Safety features Temperature
Short circuit
Overcurrent (output)
Motor driver
Type Driver
Driver chip DRV8876
Supported motor type(s) DC motor
Solenoid
Direction of rotation Bi-directional
Number of DC motor channels 1
Minimum motor supply voltage [V DC] 9
Maximum motor supply voltage [V DC] 24
Motor voltage [V DC] Equal to motor supply voltage
Maximum continuous RMS current per phase [A] 1.5
Maximum peak current per phase [A] 2
Current limiter No
Safety features Overcurrent
Temperature
Connectors

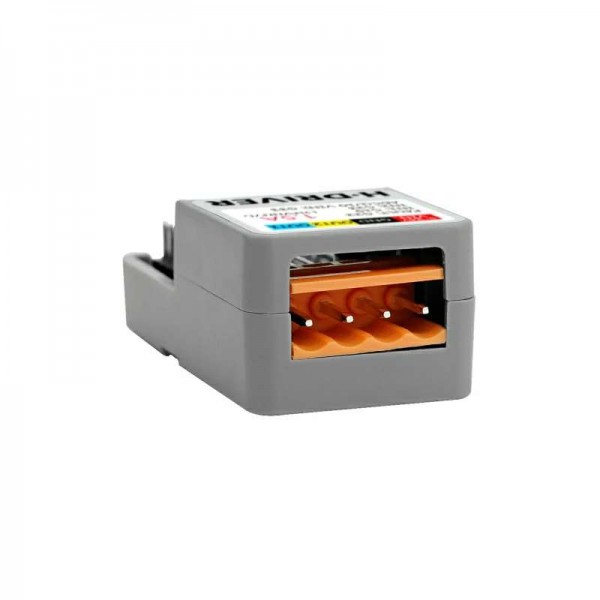

Power supply connector(s) Detachable block male (HT3.96)
IO-connector(s) Pin header male (2.54mm)
Motor connector(s) Detachable block male (HT3.96)
Input voltage connector(s) Detachable block male (HT3.96)
Output voltage connector(s) Pin header male (2.54mm)
Package contents
Package contents 1x Atomic H-Driver Base
1x Detachable screw terminal (HT3.96)
