Name: M5Stack Atomic Battery Base - 200mAh - M5STACK-A151
Brand: M5Stack
SKU: 007125
Price: 9 EUR
Availability: InStock

M5Stack Atomic Battery Base - 200mAh

New

M5Stack Atomic Battery Base - 200mAh

Availability: Directly available from warehouse in Eindhoven
SKU: 007125

Based on 0 review(s) - Write a review

€9.00

Ex Tax: €7.44

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

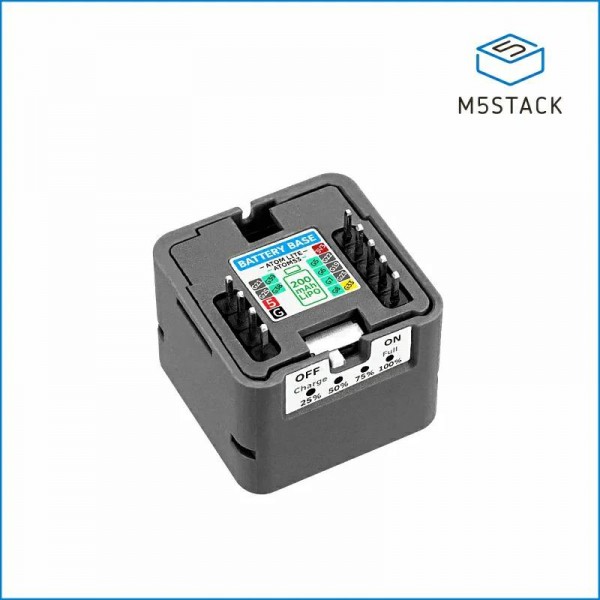

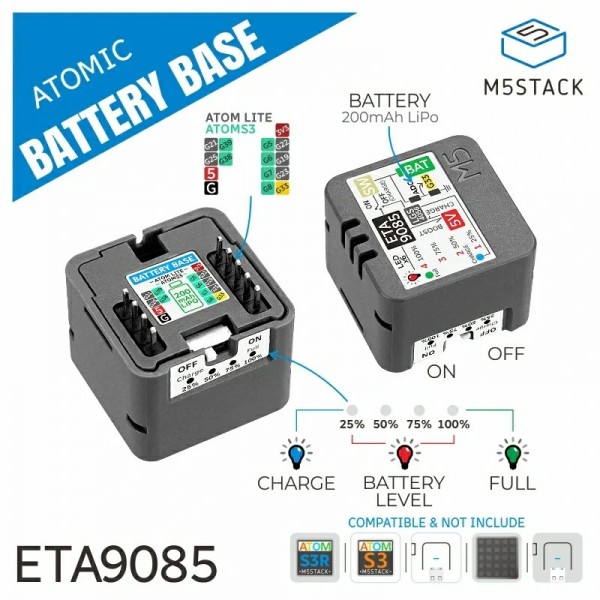

M5Stack Atomic Battery Base is battery module for the Atom series of M5Stack. The battery can be charged via an Atom.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Atomic Battery Base - 200mAh

Average Rating:

This product has 0 review(s) in total.

Tags: M5Stack Atomic Battery Base - 200mAh , M5STACK-A151 , Atom

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	A151
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40
Features	Battery charger Voltage converter Battery protection circuit Enclosure Battery
General physical appearance
Main color	Gray/silver
Weight [g]	10
Dimension X [mm]	24
Dimension Y [mm]	24
Dimension Z [mm]	18
Mounting options	Pin headers
Form factor	Module (general) M5Stack Atom layout/shield
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
IO-pin output voltage [V]	2.1 (full battery)
Communication
Hardware interface(s)	Analog
Voltage converter
Chip/SoC	ETA9085
Voltage converter type	Boost
Conversion	DC-DC
Switching method	Synchronous
Isolated	No
Soft start	Yes
Output voltage type	Fixed
Constant current function	No
Maximum switching frequency [kHz]	1000
Minimum output voltage [V DC]	5
Maximum output voltage [V DC]	5
Maximum output current [A]	0.3
Maximum output power [W]	1.5
Safety features	Short circuit Temperature
Battery circuit
Battery charger chip/SoC	LGS4056H
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	100
Adjustable charging current	No
Protection circuit	Yes (in Li-Po battery)
Safety features	Short circuit Overvoltage Overcurrent Undervoltage
Battery
Chemistry	Li-Po
Rechargeable	Yes
Capacity [mAh]	200
Nominal cell voltage [V]	3.7
Maximum cell voltage [V]	4.2
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Output voltage connector(s)	Pin header male (2.54mm)
Enclosure
Material	Polycarbonate (PC)
Package contents
Package contents	1x Atomic Battery Base
