M5Stack ATOM Mate - DIY Expansion Kit - for M5ATOM and M5StickC Hat Series

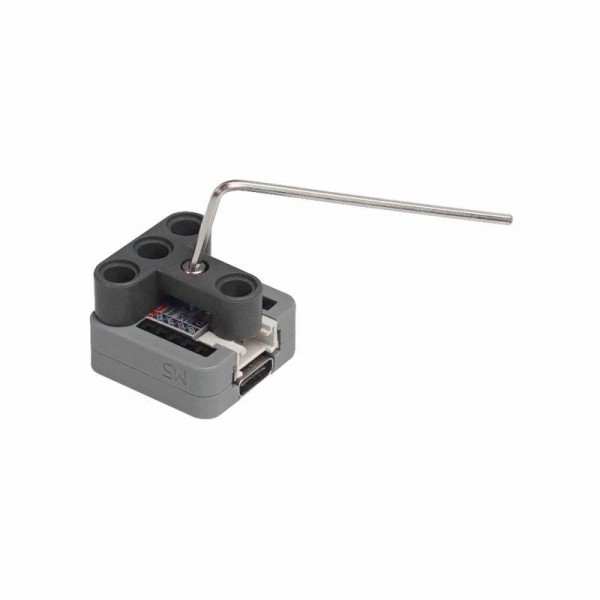

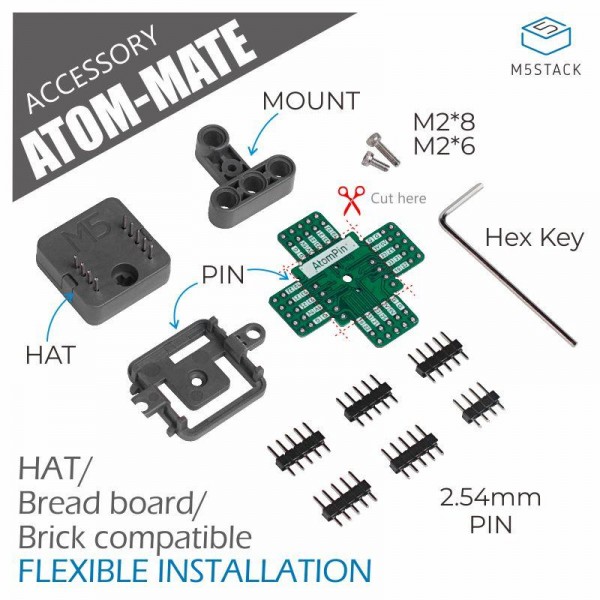

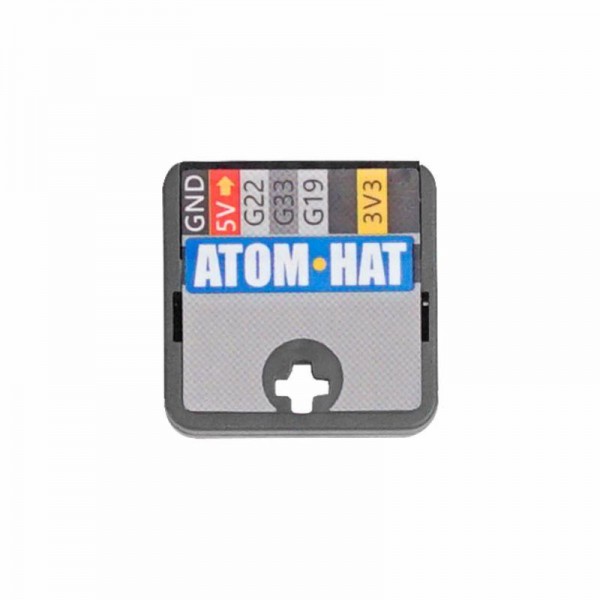

The ATOM Mate is an M5Atom compatible kit, consisting of 3 parts. The kit includes: a Hat, a Mount and a Pin frame. The Hat is intended to mount M5StickC Hats on the M5ATOM series. The Mount is a LEGO^® Compatible part with which an M5ATOM can easily be attached to LEGO^®. The Pin frame is an adapter board that extends the bottom pins of an M5ATOM making it easier to build circuits on the PCB.

Specifications:

• Compatible with the M5Atom Lite/Matrix/Echo
• Dimensions:
  • AtomHat: 24x24x8mm
  • AtomMount: 24x24x8mm
  • AtomPin: 24x38x8mm
• Material: Plastic (PC)

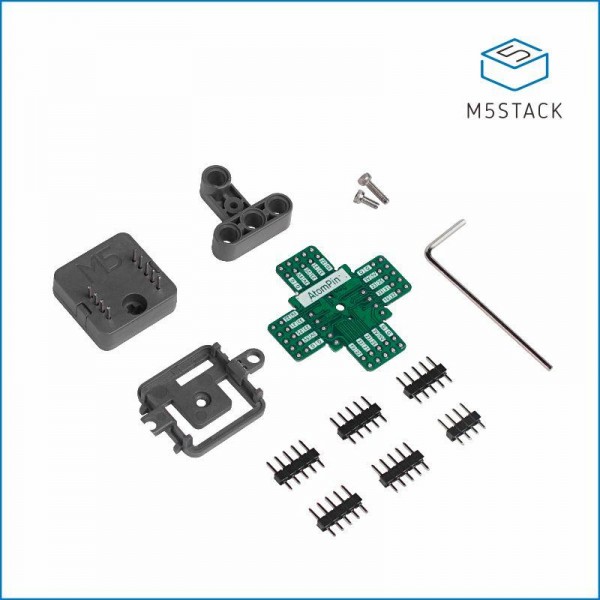

Package Contents:

• 1x AtomPin frame
• 1x AtomPin Board
• 1x AtomHat
• 1x AtomMount (LEGO^® Compatible)
• 5x 5P Male Header
• 1x 4P Male Header
• 1x M2*6 Allen screw
• 1x M2*8 Allen screw
• 1x Allen key

See the following page for more information: M5Stack-ATOM-MATE.

Note: A M5ATOM is not included in the package.
