M5Stack Watch V1.1 Development Kit - Orange Straps - Excluding M5Core

Availability: Directly available from warehouse in Eindhoven
SKU: 005868

Based on 0 review(s) - Write a review

€9.00

Ex Tax: €7.44

Qty

Add to Cart

Add to wishlist

Only 5 pieces in stock

Description
Reviews

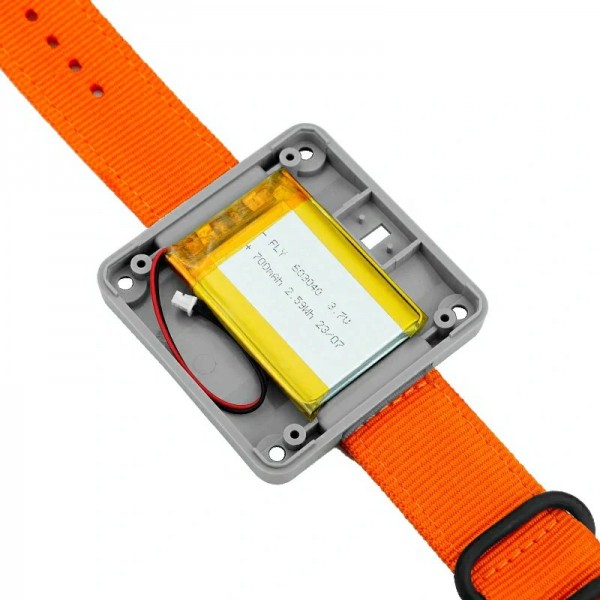

M5Stack Watch is an expansion kit for the M5Core. The kit contains a battery and a watch base with straps. This enables you to make a smartwatch with your M5Core. This expansion kit is compatible with the Core1, Core2 and CoreS3.

Note: M5Core is not included in this kit.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Watch V1.1 Development Kit - Orange Straps - Excluding M5Core

Average Rating:

This product has 0 review(s) in total.

Tags: M5Stack Watch V1.1 Development Kit - Orange Straps - Excluding M5Core , M5STACK-A128-B , Accessories

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	A128-B
Features	Battery Enclosure Battery protection circuit
General physical appearance
Main color	Orange

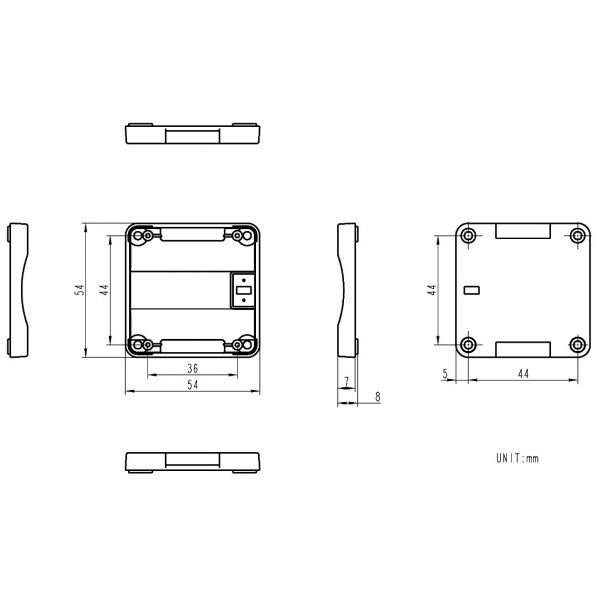

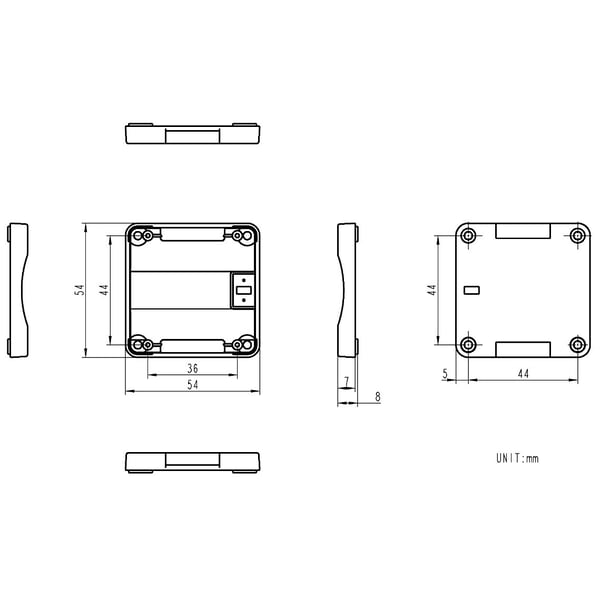

Dimension X [mm]	54
Dimension Y [mm]	54
Dimension Z [mm]	16
Mounting options	Mounting hole(s)
Form factor	Wristband M5Stack Base
Battery circuit
Protection circuit	Yes
Safety features	Overcurrent Overvoltage Undervoltage Short circuit
Battery
Chemistry	Lithium
Rechargeable	Yes
Capacity [mAh]	700
Nominal cell voltage [V]	3.7
Maximum cell voltage [V]	4.2
Connectors
Battery connector(s)	Molex Picoblade (compatible) female
Package contents

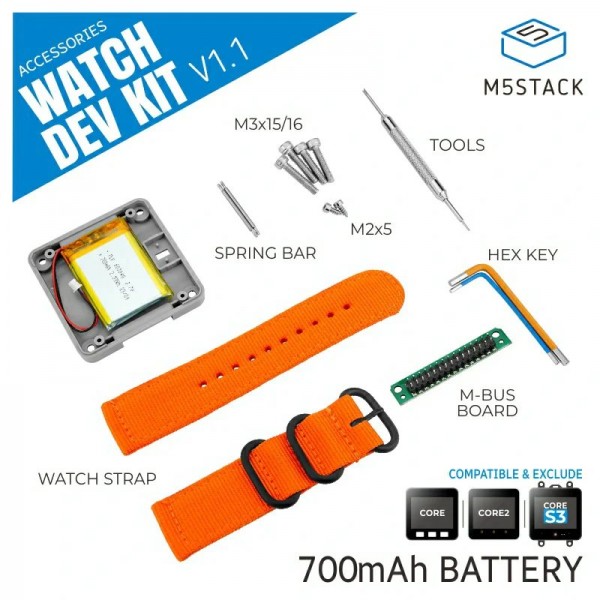

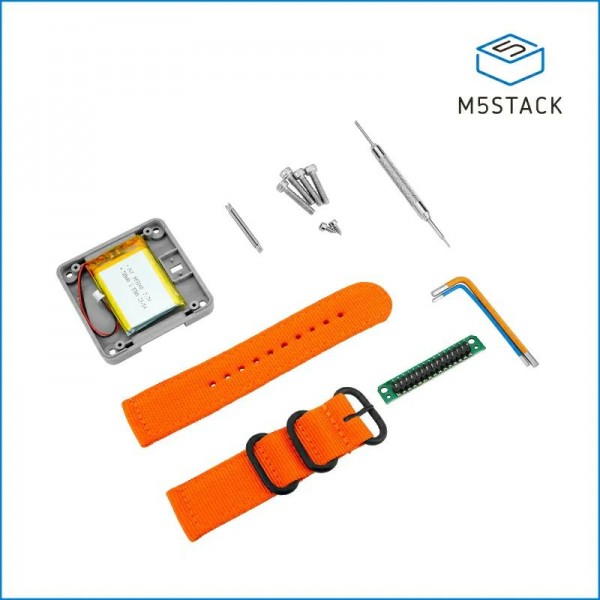

Package contents	1x Watch base 1x Strap (2 parts) 1x M-BUS board 1x Li-Po battery 2x Telescopic card pin 2x M3x15 bolt 2x M3x16 bolt 2x Screw 2x Hex key 1x Screwdriver
