M5Stack SG90 Servo

M5Stack SG90 Servo
M5Stack SG90 Servo
M5Stack SG90 Servo
M5Stack SG90 Servo
M5Stack SG90 Servo
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004549
Based on 0 review(s) - Write a review
€7.50
Ex Tax: €6.20
Add to Cart
Add to wishlist

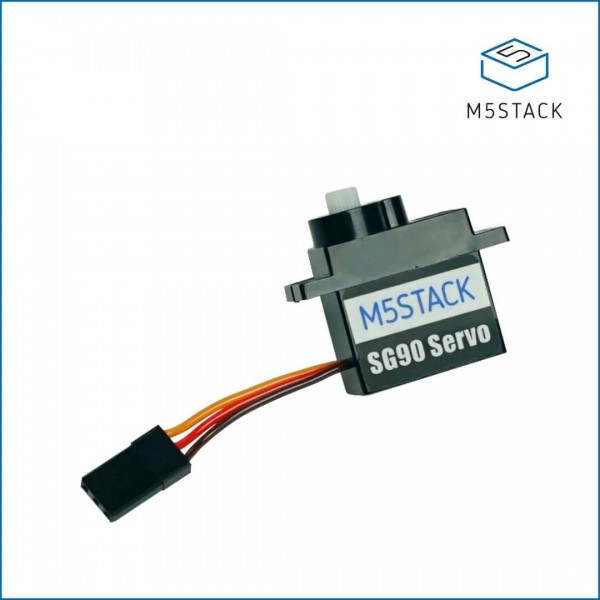

A standard SG90 servo from M5Stack. This servo is very easy to control.

For more information, see: M5Stack SG90 Servo.

Note: If the servo has less than 180 degrees range, the minimum (500us) and maximum pulse width (2500us) must be adjusted in the controller.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack SG90 Servo

This product has 0 review(s) in total.

Tags: Motors , Servomotors , M5Stack SG90 Servo , 004549 , M5Stack , A076 (SG90) , Servo motor , PWM

Specifications

General
Brand M5Stack
Manufacturer model/SKU A076 (SG90)
Features Servo motor
General physical appearance
Main color Black
Weight [g] 11
Dimension X [mm] 23
Dimension Y [mm] 12
Dimension Z [mm] 27
Mounting options Mounting hole(s)
General electrical properties
Minimum supply voltage [V DC] 4.8
Maximum supply voltage [V DC] 6
Minimum recommended supply current [A] 0.8
Minimum IO-pin input voltage [V] 4.8
Maximum IO-pin input voltage [V] 6
Communication
Hardware interface(s) PWM
Actuator
Actuator type Brushed DC motor
Rotational range 0 - 180°
Mechanical end-stops Yes
Position feedback No
Maximum holding torque [N.m] 0.17
(1.8kg.cm)
(@6V)
0.15
(1.6kg.cm)
(@4.8V)
Maximum speed [s/60°] 0.09
(@6.0V)
0.10
(@4.8V)
Transmission
Gear material Plastic
Shaft
Shaft type Spline 21T
Shaft length [mm] 3
Connectors
Power supply connector(s) Pin header female (2.54mm)
IO-connector(s) Pin header female (2.54mm)
Wire/cable
Wire/cable length [m] 0.05

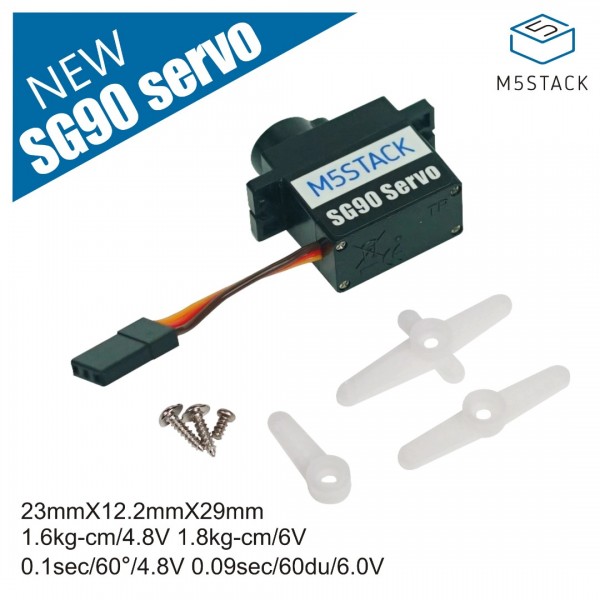

Package contents
Package contents 1x Servo motor
1x Accessory mounting screw
1x Shaft accessories (see images)
2x Mounting screw
