Door Solenoid LY-031 - 12V DC

Availability: Directly available from warehouse in Eindhoven
SKU: 006354

Based on 0 review(s) - Write a review

€6.50

Ex Tax: €5.37

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

Description
Reviews

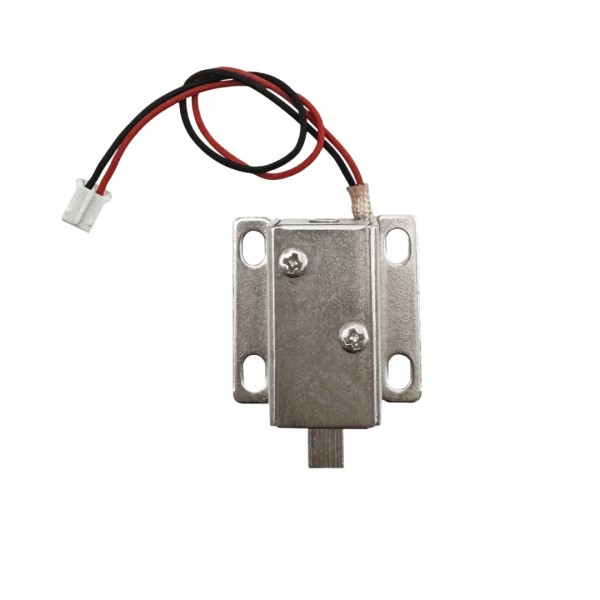

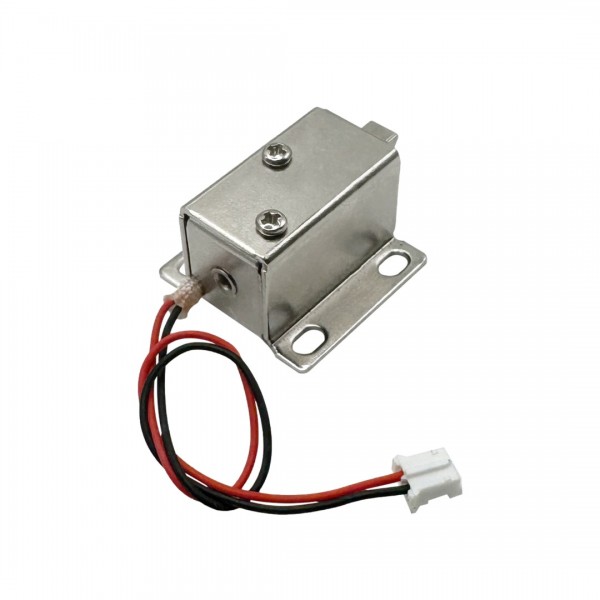

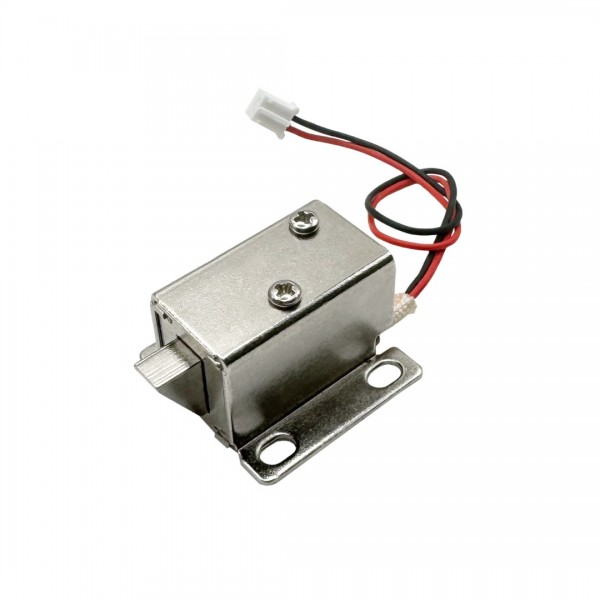

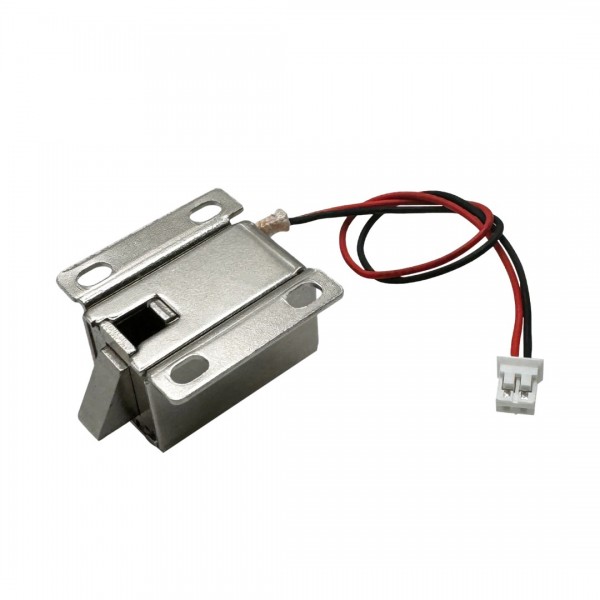

This door solenoid works with an electromagnet. The spring pushes the pin outwards by default, but the pin is pulled in when the solenoid is activated.

Note: Do not activate the solenoid for more than 5s to prevent the coil in the lock from burning out. After each activation, give the solenoid at least 60s to cool down.

Please login or register to review

Reviews Over Door Solenoid LY-031 - 12V DC

Average Rating:

This product has 0 review(s) in total.

Tags: Door Solenoid LY-031 - 12V DC , LY-031-12VDC , Solenoids

Specifications

General
Brand	SARY
Manufacturer model/SKU	LY-031
Minimum operating humidity [%R.H.]	5
Maximum operating humidity [%R.H.]	95
Minimum operating temperature [°C]	-20
Maximum operating temperature [°C]	40
General physical appearance
Main color	Gray/silver
Weight [g]	36

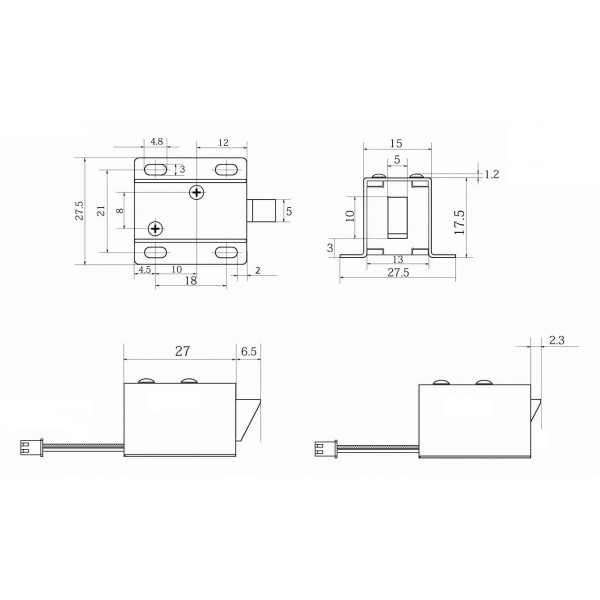

Dimension X [mm]	28
Dimension Y [mm]	27
Dimension Z [mm]	19
Material	Metal (unknown alloy)
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3
Form factor	Individual component
General electrical properties
Minimum supply voltage [V DC]	12
Maximum supply voltage [V DC]	12
Indication average current consumption [mA]	400 (±10%)
Actuator
Actuator type	Solenoid
Stroke [mm]	4.2
Maximum activation time [s]	5
Minimum cooldown time [s]	60
Initial force [N]	0.5
Maximum holding force [N]	5
Connectors
Power supply connector(s)	JST-PH (compatible) female
Wire/cable
Wire/cable length [m]	0.1
Package contents
Package contents	1x Solenoid
