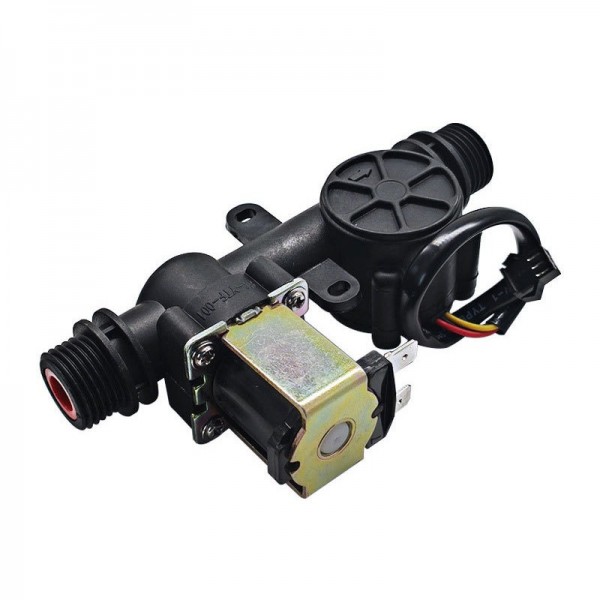

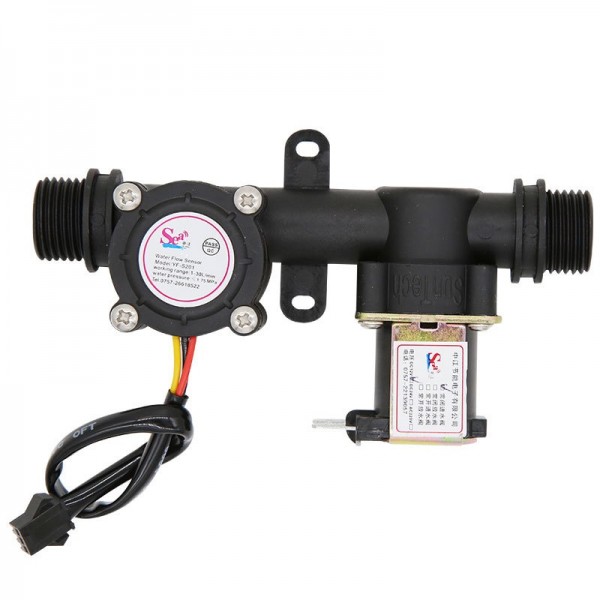

Solenoid Valve with Water Flow Sensor - Normally Closed - Nylon - G1/2"

A standard solenoid valve with water flow sensor. With this, for example, the water flow in a hose or pipe can be measured and regulated.

The output of the sensor gives 9.4 pulses per second with a duty cycle of approximately 50% for every liter of liquid that passes through it per minute: Q [L/min] = f_pulse[Hz ]/9.4.

Specifications:

• Solenoid valve:
  • Voltage: 12V DC
  • Coil resistance: 25Ω ±5% (at 20°C)
  • Connector: Disconnect cable lug 6.3mm
  • Valve type: Normally closed (NC)
  • Flow orientation: Straight
• Water flow sensor:
  • Supply voltage: 5-18V DC
  • Signal voltage: 4.7V (with 5V DC power supply)
  • Connector: JST-SM 3p female
  • Pulse frequency per L/min: 9.4Hz*
  • Duty cycle pulse: 50% ±10%
  • Measuring range: 1-30L/min
  • Accuracy: ±3%*
• Water pressure: 0.2-8bar
• Water connection: G1/2"
• Working temperature: 1-60°C
• Maximum flow: 10L/min
• Material: Nylon
• Suitable liquids: Water**

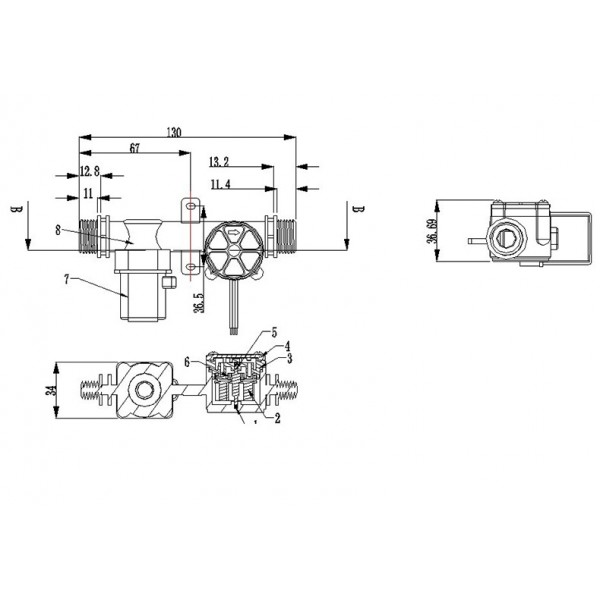

• Dimensions: See images

Pinout (water flow sensor):

• Red: Supply voltage/plus
• Black: GND/min
• Yellow: Signal

Package contents:

• 1x Solenoid Valve with Water Flow Sensor - Normally Closed - Nylon - G1/2"

See the following page for a tutorial with a similar water flow sensor: How to Use Water Flow Sensor - Arduino Tutorial

Modify the following piece of code around line 17:

float calibrationFactor = 4.5;

To:

float calibrationFactor = 9.4;

*Note: This is a factory specification under specific circumstances. Should the sensor be used in a situation where accuracy is required, it is recommended to calibrate the sensor in that specific setup.

**Note: We cannot provide any warranty when this product is used with any liquid other than clean spring/tap water (non-potable).

Note: The liquid can only flow in one direction, this is indicated by an arrow.

Note: The solenoid valve must be installed such that the coil is on top.
