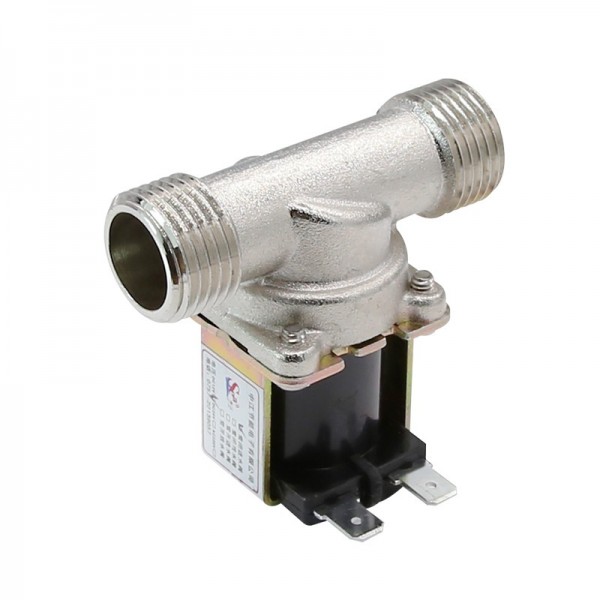

Solenoid Valve - Normally Closed - 12V DC - Nickel - G1/2"

A standard solenoid valve with which, for example, the water flow in a hose or pipe can be regulated.

Specifications:

• Voltage: 12V DC
• Coil resistance: 25Ω ±10% (at 20°C)
• Connector: Disconnect cable lug 6.3mm
• Valve type: Normally closed (NC)
• Flow orientation: Straight
• Water connection: G1/2"
• Water pressure: 0.2-8bar
• Working temperature: 1-60°C
• Suitable liquids: Water*
• Material: Nickel or nickel plated brass

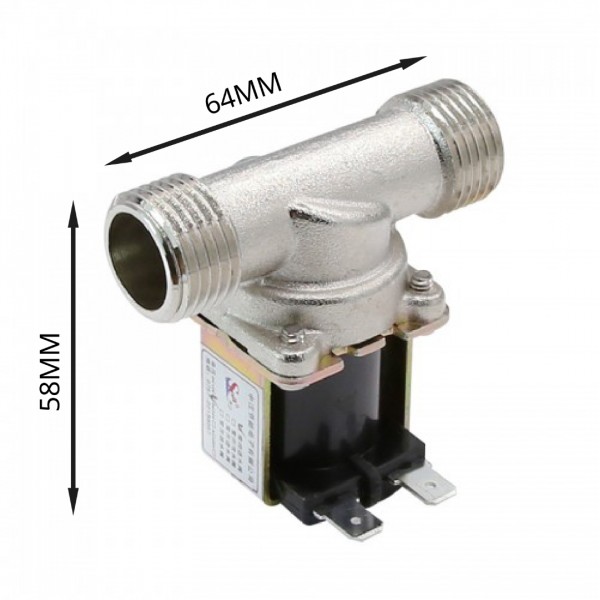

• Dimensions: See images

Package contents:

• 1x Solenoid Valve - Normally Closed - 12V DC - Nickel - G1/2"

*Note: We cannot provide any warranty when this product is used with any liquid other than clean spring/tap water (non-potable).

Note: The liquid can only flow in one direction, this is indicated by an arrow.

Note: The solenoid valve must be installed such that the coil is on top.
