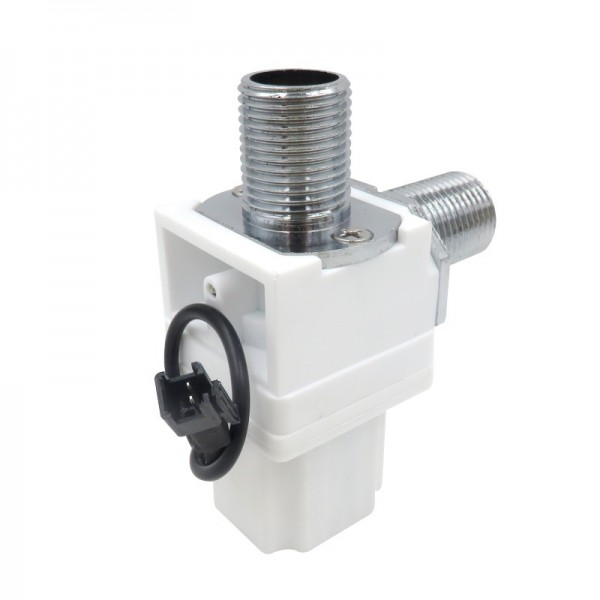

Solenoid Valve - Latching - 5V - Nylon - G1/2" - 90 Degrees

This solenoid valve is bistable (latching), by giving a pulse with a positive current the valve is opened and with a pulse with a negative current the valve is closed again. This allows the valve to be controlled with an H-bridge or motor driver.

Specifications:

• Voltage: 5V
• Pulse width: 30ms*
• Coil resistance: 15Ω ±5% (at 20°C)
• Connector: JST-SM 2p male
• Valve type: Bi-stable
• Flow orientation: 90 Degrees
• Water connection: G1/2"
• Water pressure: 0.2-10bar
• Working temperature: 1-80°C
• Suitable liquids: Water**
• Material: Nylon (with metal connectors)
• Length cable: ~15cm

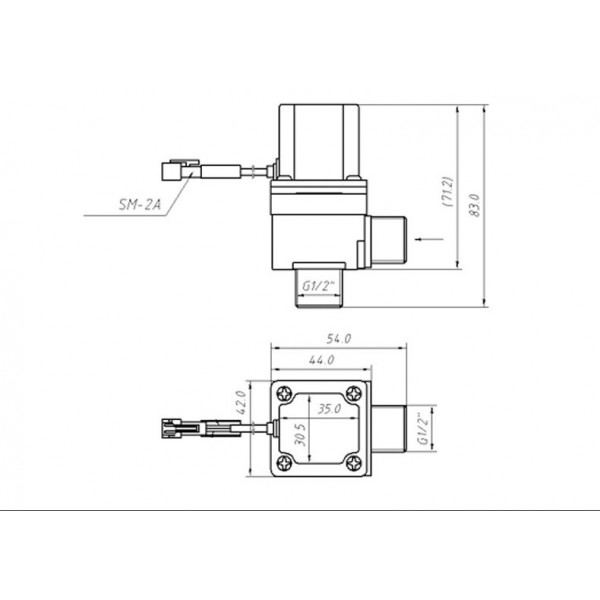

• Dimensions: See images

Package contents:

• 1x Solenoid valve - Bi-stable - 5V - Nylon - G1/2" - 90 Degrees

*Note: Do not activate the coil for much longer, otherwise the coil may overheat.

**Note: We cannot provide any warranty when this product is used with any liquid other than clean spring/tap water (non-potable).

Note: The liquid can only flow in one direction, this is indicated by an arrow on the image with the dimensions.

Note: The solenoid valve must be installed such that the coil is on top.
