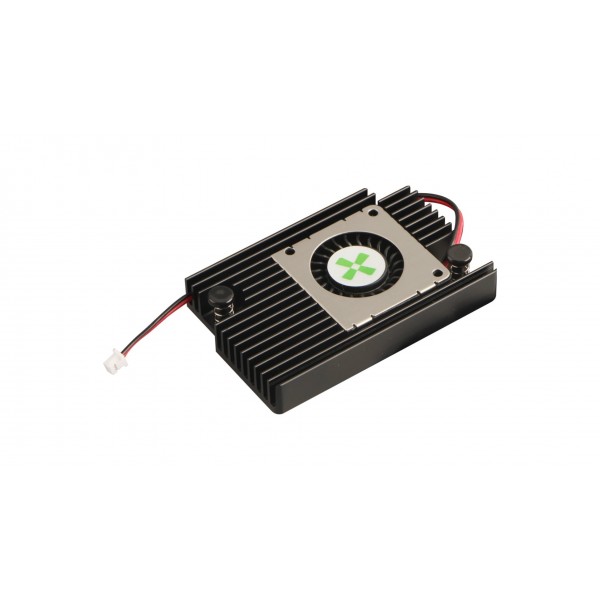

Radxa Heatsink 6240B with Fan - for ROCK 5B(+)
- Availability: Directly available from warehouse in Eindhoven
- SKU: 007038
€6.50
Ex Tax: €5.37
Your shopping cart is empty!
An active cooler for the Radxa ROCK 5B or ROCK 5B+.
See the following page for more information: Manufacturer page
| General | |
| Brand | Radxa |
| Manufacturer model/SKU | AE013B |
| Model revision | V2.0 |
| Features | Motor driver Fan Cooling element |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 29 |
| Dimension X [mm] | 62 |
| Dimension Y [mm] | 40 |
| Dimension Z [mm] | 9.5 |
| Mounting options | Click |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Thermal element | |
| Function | Cooling |
| Type | Heatsink |
| Materiaal | Aluminum |
| Motor driver | |
| Type | Driver |
| Direction of rotation | Unidirectional |
| Actuator | |
| Actuator type | Brushless DC motor |
| Maximum speed [RPM] | 7000 (±10%) |
| Fan | |
| Orientation | Axial |
| Connectors | |
| Power supply connector(s) | Molex Picoblade (compatible) female |
| Wire/cable | |
| Wire/cable length [m] | 0.1 |
| Package contents | |
| Package contents | 1x Heatsink 3x Thermal conductive pad (different sizes) |
