52Pi ICE Tower CPU Cooling Fan - Low Profile - for Orange Pi 5(B)

52Pi ICE Tower CPU Cooling Fan - Low Profile - for Orange Pi 5(B)
52Pi ICE Tower CPU Cooling Fan - Low Profile - for Orange Pi 5(B)
52Pi ICE Tower CPU Cooling Fan - Low Profile - for Orange Pi 5(B)
52Pi ICE Tower CPU Cooling Fan - Low Profile - for Orange Pi 5(B)
52Pi ICE Tower CPU Cooling Fan - Low Profile - for Orange Pi 5(B)
52Pi ICE Tower CPU Cooling Fan - Low Profile - for Orange Pi 5(B)
52Pi ICE Tower CPU Cooling Fan - Low Profile - for Orange Pi 5(B)
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005964
€20.00
Ex Tax: €16.53

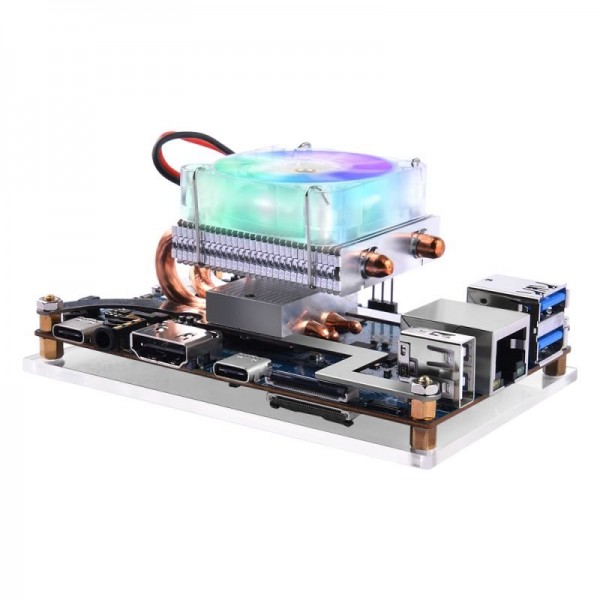

With this ICE Tower Cooler from 52Pi you can provide an Orange Pi 5(B) with active cooling. The heatsink is equipped with a fan that constantly blows air over the heatsink. This ensures that the temperature of the Raspberry Pi remains lower than with a standard cooling block. The fan also has a built-in RGB LED that changes color itself.

Note: Orange Pi 5 is not included.

Note: This product is only compatible with the Orange Pi 5(B).

See the following page for more information: Wiki

Please login or register to review

Reviews Over 52Pi ICE Tower CPU Cooling Fan - Low Profile - for Orange Pi 5(B)

This product has 0 review(s) in total.

Specifications

General
Brand 52Pi
Manufacturer model/SKU EP-0167
Features Fan
Cooling element
General physical appearance
Main color Gray/silver
Weight [g] 47
(heatsink with fan)
Dimension X [mm] 62
Dimension Y [mm] 42
Dimension Z [mm] 34
Mounting options Mounting hole(s)
Screw thread
Diameter mounting hole(s) [mm] 2.7
Thread size M2.5
Form factor Orange Pi 5/5B accessory
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Thermal element
Function Cooling
Materiaal Aluminum
Copper
Motor driver
Type Driver
Direction of rotation Unidirectional
Actuator
Actuator type Brushless DC motor
Fan
Orientation Axial
Connectors
Power supply connector(s) Pin header female (2.54mm)
Wire/cable
Wire/cable length [m] 0.06

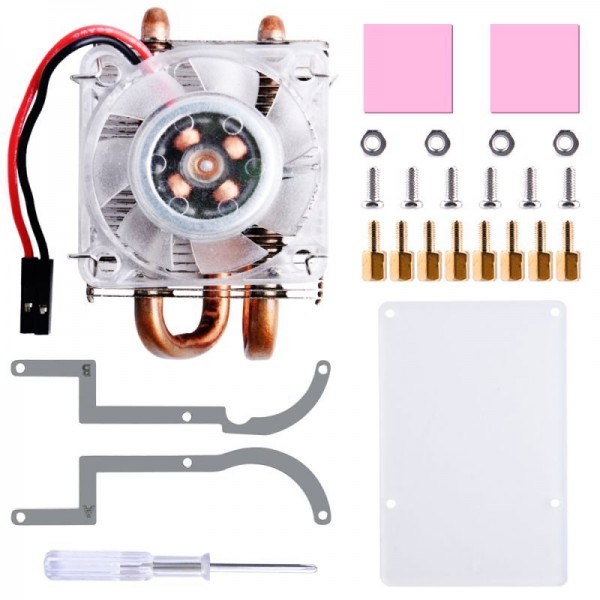

Package contents
Package contents 1x Fan
1x Low-profile radiator
2x Metal bracket for Low-profile radiator
2x Thermal pad
4x M2.5 Nut
6x M2.5 screw
8x M2.5+ 6mm standoff
1x Acrylic bottom panel
1x Screw driver
