52Pi ICE Tower CPU Cooling Fan - for Raspberry Pi 5

Availability: Directly available from warehouse in Eindhoven
SKU: 005841

Based on 0 review(s) - Write a review

€19.00

Ex Tax: €15.70

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

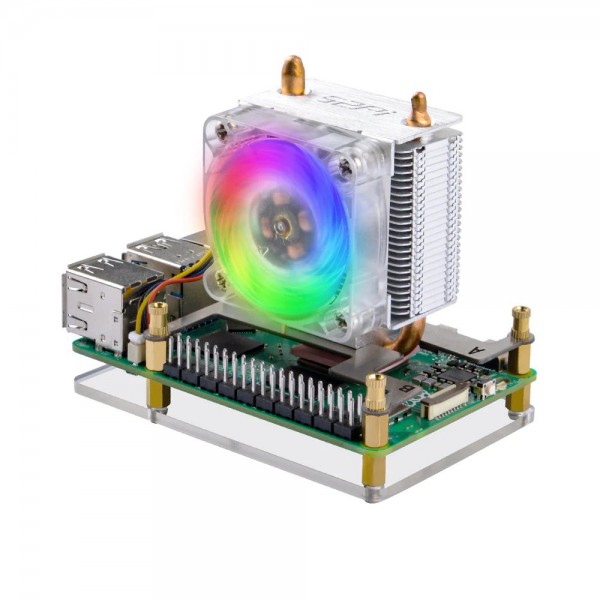

With this ICE Tower Cooler from 52Pi you can provide a Raspberry Pi 5 with active cooling. The heatsink is equipped with a fan that constantly blows air over the heatsink. This ensures that the Raspberry Pi remains lower in temperature than with a standard cooling block. The fan also has a built-in RGB LED that automatically changes color.

Note: No Raspberry Pi is included.

See the following page for more information: Wiki

Please login or register to review

Reviews Over 52Pi ICE Tower CPU Cooling Fan - for Raspberry Pi 5

Average Rating:

This product has 0 review(s) in total.

Tags: 52Pi ICE Tower CPU Cooling Fan - for Raspberry Pi 5 , 52PI-ZP-0180 , Cooling Elements

Specifications

General
Brand	52Pi
Manufacturer model/SKU	ZP-0180
Features	Motor driver Fan Cooling element Speed sensor
General physical appearance
Main color	Gray/silver
Weight [g]	52 (heatsink with fan)
Dimension X [mm]	60
Dimension Y [mm]	42
Dimension Z [mm]	35
Mounting options	Mounting hole(s) Screw thread
Diameter mounting hole(s) [mm]	2.8
Thread size	M2.5
Form factor	Raspberry Pi 5 accessory
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Communication
Hardware interface(s)	PWM
Thermal element
Function	Cooling
Type	Heatsink
Materiaal	Aluminum Copper
Motor driver
Type	Driver
Direction of rotation	Unidirectional
Actuator
Actuator type	Brushless DC motor
Fan
Orientation	Axial
Connectors
Power supply connector(s)	JST-SH (compatible) female
IO-connector(s)	JST-SH (compatible) female
Wire/cable
Wire/cable length [m]	0.05
Package contents

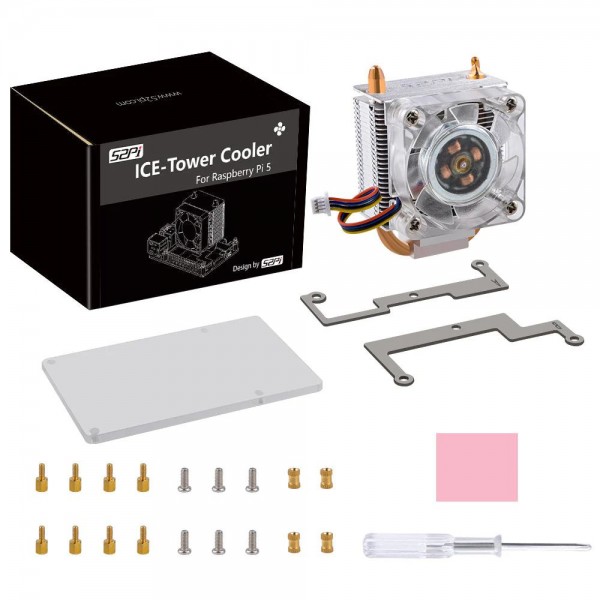

Package contents	1x ICE-Tower Cooler with fan 2x Mounting bracket 1x Acrylic plate 1x Screw driver 6x M2.5 screw 1x Spacer set 2x Thermal pad
