Vibration DC Motor Module - 3.7-5.3V - Small

Vibration DC Motor Module - 3.7-5.3V - Small
Vibration DC Motor Module - 3.7-5.3V - Small
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 002956
€2.50
Ex Tax: €2.07

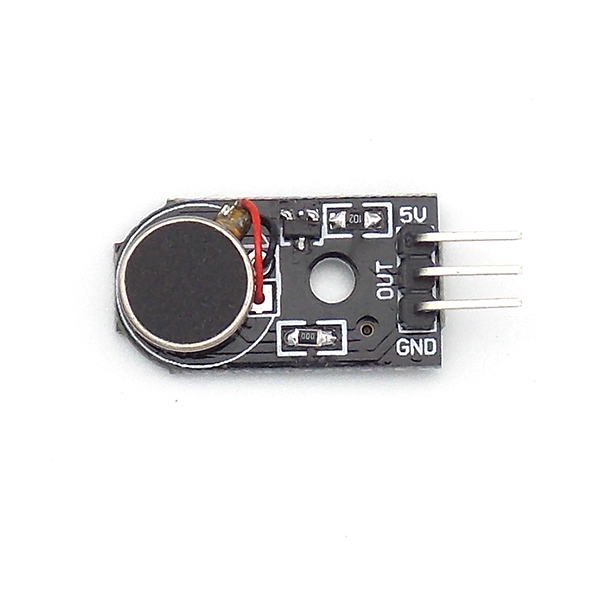

A small flat vibration (DC) motor module with a mounting hole for easy mounting.

Note: The motor is only secured with an adhesive layer. In situations where the motor is on for a long time, when it can get warm and/or when external force can be applied to the motor, the layer may not be sufficient and the motor may come off. This causes the wires to move a lot, causing accelerated metal fatigue with a wire break as a result. In such situations, use extra glue for a better fixation. Also note that the wires must be able to vibrate along with the module, if they touch something that does not vibrate, the same problem will arise.

Please login or register to review

Reviews Over Vibration DC Motor Module - 3.7-5.3V - Small

This product has 0 review(s) in total.

Specifications

General
Brand No brand
Features Vibration motor
General physical appearance
Main color Black
Weight [g] 2
Dimension X [mm] 24
Dimension Y [mm] 13
Dimension Z [mm] 5
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 3
General electrical properties
Minimum supply voltage [V DC] 3.7
(5V recommended)
Maximum supply voltage [V DC] 5.3
(5V recommended)
Minimum IO-pin input voltage [V] 3.3
(5V recommended)
Maximum IO-pin input voltage [V] 5.3
(5V recommended)
Communication
Hardware interface(s) PWM
Digital
Actuator
Actuator type Brushed DC motor
Phase resistance [Ω] 29
Connectors
Power supply connector(s) Pin header male (2.54mm)
IO-connector(s) Pin header male (2.54mm)
Motor connector(s) Pin header male (2.54mm)
Package contents
Package contents 1x DC vibration motor
