Small Vibration DC Motor 2.5-4V

Availability: Directly available from warehouse in Eindhoven
SKU: 000758

Based on 0 review(s) - Write a review

€1.00

Ex Tax: €0.83

10 or more €0.90

20 or more €0.80

50 or more €0.75

100 or more €0.70

Qty

Add to Cart

Add to wishlist

200+ pieces in stock

Description
Reviews

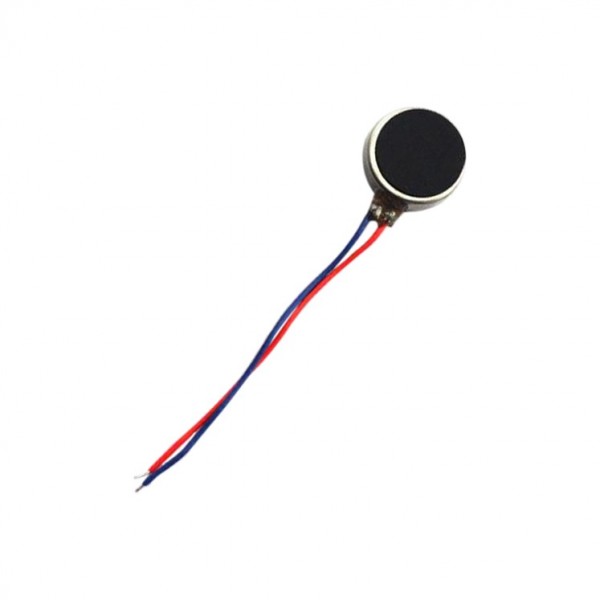

A small flat vibration DC motor with an adhesive layer for easier assembly.

Note: The thin wires can vibrate and deattach if the motor and the cables are not properly secured in your setup. Use hot glue or other glue to protect these thin wires against vibrations.

Please login or register to review

Reviews Over Small Vibration DC Motor 2.5-4V

Average Rating:

This product has 0 review(s) in total.

Tags: Small Vibration DC Motor 2.5-4V , 1027VIBRATEDCMOTOR , Vibration Motors

Specifications

General
Brand	No brand
Minimum operating temperature [°C]	-20
Maximum operating temperature [°C]	60
Features	Vibration motor
General physical appearance
Main color	Gray/silver
Weight [g]	1

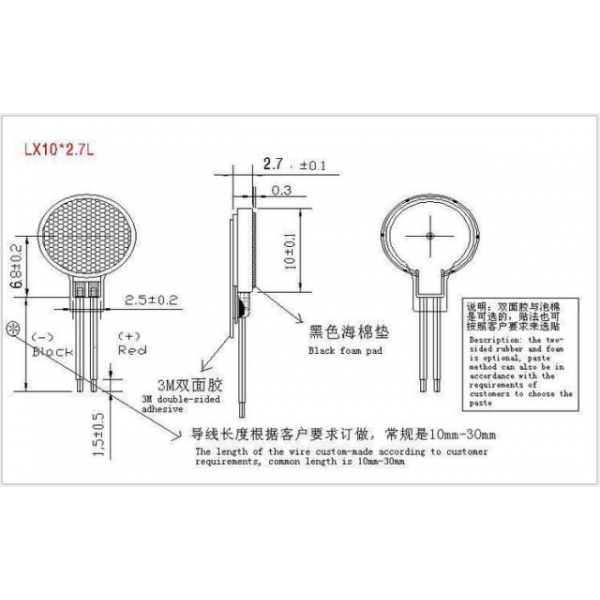

Dimension X [mm]	10
Dimension Y [mm]	10
Dimension Z [mm]	3
Mounting options	Adhesive layer
General electrical properties
Maximum supply voltage [V DC]	4
Indication average current consumption [mA]	42 (@2V) 65 (@3V) 92 (@4V)
Actuator

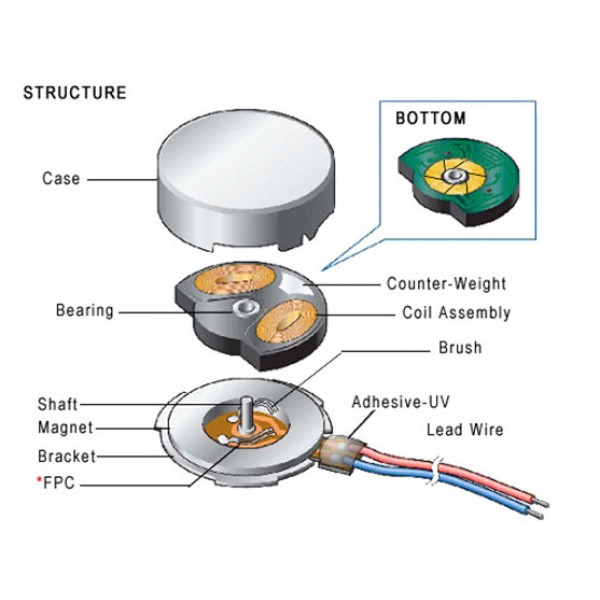

Actuator type	Brushed DC motor
Phase resistance [Ω]	32
Maximum speed [RPM]	12000 (±2500)
Connectors
Motor connector(s)	Loose wire
Wire/cable
Wire/cable length [m]	0.03
Package contents
Package contents	1x DC vibration motor
