Arduino Modulino Vibro - Vibration Motor Module

Arduino Modulino Vibro - Vibration Motor Module
Arduino Modulino Vibro - Vibration Motor Module
Arduino Modulino Vibro - Vibration Motor Module
Arduino Modulino Vibro - Vibration Motor Module
Arduino Modulino Vibro - Vibration Motor Module
Arduino Modulino Vibro - Vibration Motor Module
Arduino Modulino Vibro - Vibration Motor Module
Arduino Modulino Vibro - Vibration Motor Module
Arduino Modulino Vibro - Vibration Motor Module
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007559
Based on 0 review(s) - Write a review
€12.00
Ex Tax: €9.92
Add to Cart
Add to wishlist

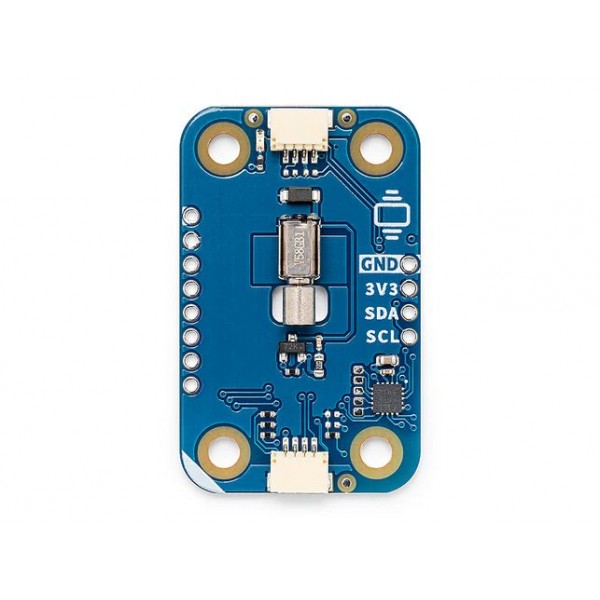

This module contains a VZ43FM1B8230001L vibration motor. It can be used to provide subtle vibration responses for alerts and notifications.

See the following page for more information: Wiki

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Arduino Modulino Vibro - Vibration Motor Module

This product has 0 review(s) in total.

Tags: Motors , Vibration Motors , Arduino Modulino Vibro - Vibration Motor Module , 007559 , Arduino , ABX00130 , Vibration motor , I2C

Specifications

General
Brand Arduino
Manufacturer model/SKU ABX00130
Norm conformity CE
FCC
RoHS
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
Features Vibration motor
General physical appearance
Main color Blue
Weight [g] 5
Dimension X [mm] 41
Dimension Y [mm] 26
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 3.2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 3.3
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] Equal to I2C bus voltage
Communication
Hardware interface(s) I2C
Default I2C address 0x38
Adjustable I2C address Yes
Built-in pull-up resistor(s) [kΩ] None
Actuator
Actuator type Brushed DC motor
Maximum speed [RPM] 12000
Connectors
Power supply connector(s) JST-SH (compatible) male
Through hole solder pin(s) (2.54mm)
IO-connector(s) JST-SH (compatible) male
Through hole solder pin(s) (2.54mm)
Package contents

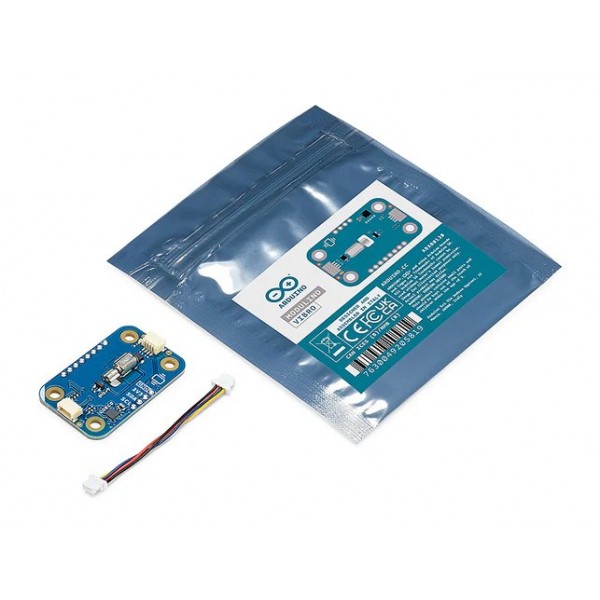

Package contents 1x Vibration motor module
1x JST-SH cable (5cm)
