Stepper Motor - Double Sided Shaft - 0.41N.m - 1.7A - NEMA17 - JST-PH Compatible Connector

Stepper Motor - Double Sided Shaft - 0.41N.m - 1.7A - NEMA17 - JST-PH Compatible Connector
Stepper Motor - Double Sided Shaft - 0.41N.m - 1.7A - NEMA17 - JST-PH Compatible Connector
Stepper Motor - Double Sided Shaft - 0.41N.m - 1.7A - NEMA17 - JST-PH Compatible Connector
Stepper Motor - Double Sided Shaft - 0.41N.m - 1.7A - NEMA17 - JST-PH Compatible Connector
Stepper Motor - Double Sided Shaft - 0.41N.m - 1.7A - NEMA17 - JST-PH Compatible Connector
Stepper Motor - Double Sided Shaft - 0.41N.m - 1.7A - NEMA17 - JST-PH Compatible Connector
Stepper Motor - Double Sided Shaft - 0.41N.m - 1.7A - NEMA17 - JST-PH Compatible Connector
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004137
Based on 0 review(s) - Write a review
€12.00
Ex Tax: €9.92
10 or more €11.50
20 or more €11.25
50 or more €11.00
100 or more €10.75
Add to Cart
Add to wishlist

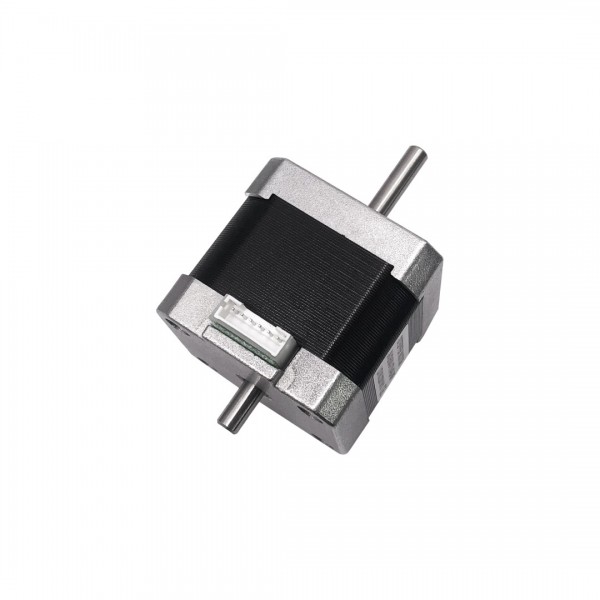

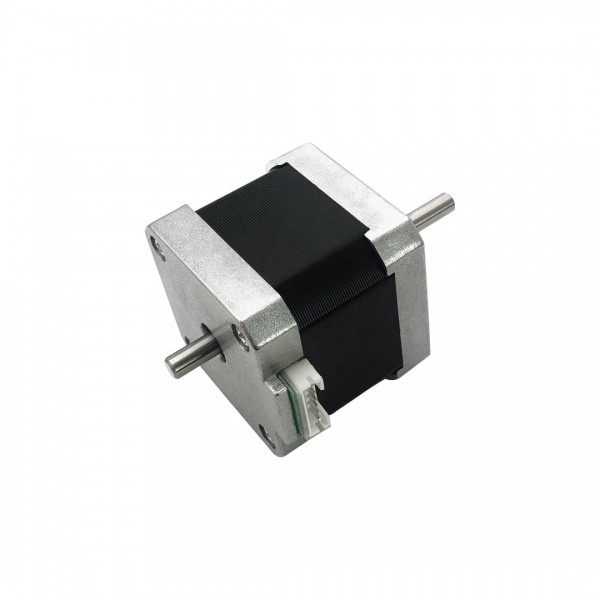

A special 4 pin bipolar stepper motor suitable for various applications. This model has a shaft that protrudes from both the front and the back of the motor. The motor has a standard JST-PH compatible connector which makes it easy to connect. The corresponding cable is not included, but is sold separately.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review
Tags: Motors , Stepper Motors , Stepper Motor - Double Sided Shaft - 0.41N.m - 1.7A - NEMA17 - JST-PH Compatible Connector , 004137 , JKONGMOTOR , JK42HS40-1704AB-84F , Motor

Specifications

General
Brand JKONGMOTOR
Manufacturer model/SKU JK42HS40-1704AB-84F
Features Motor
General physical appearance
Main color Black
Weight [g] 290
Dimension X [mm] 42
Dimension Y [mm] 42
Dimension Z [mm] 40
Mounting options Screw thread
Thread size M3
Form factor NEMA17
Actuator
Actuator type Stepper motor
Step angle [°] 1.8
(±5%)
Position feedback No
Maximum holding torque [N.m] 0.41
Minimum motor voltage [V DC] 2.6
Maximum continuous RMS current per phase [A] 1.7
Phase resistance [Ω] 1.5
(±10%)
Phase inductance [mH] 2.3
(±20%)
(@1kHz)
Insulation class B
Shaft
Shaft type D-shape + D-shape
Shaft diameter [mm] 5
Shaft length [mm] 22
(Long side)
10
(Short side)
Connectors
Motor connector(s) JST-PH (compatible) male
Package contents
Package contents 1x Stepper motor
