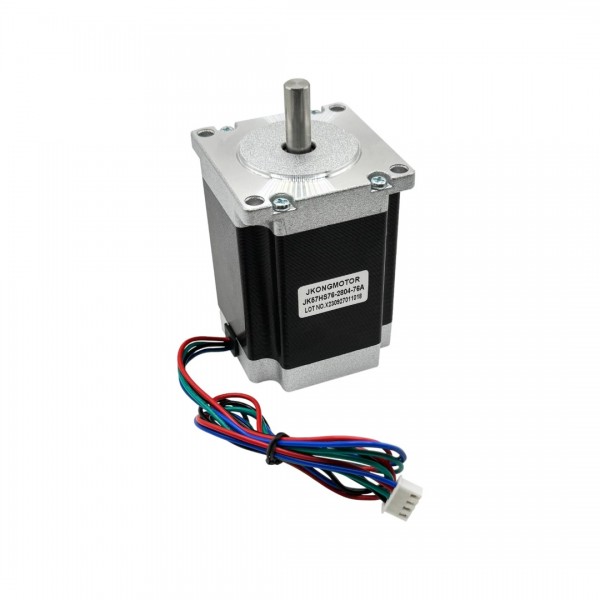

Stepper Motor - 1.89N.m - 2.8A - NEMA23

Name: Stepper Motor - 1.89N.m - 2.8A - NEMA23 - JK57HS76-2804-76A
SKU: 001939
Price: 24.5 EUR
Availability: InStock

Question

Accepted Answer

The following parts are required to control a stepper motor:

The following items are optional:

General
Brand	JKONGMOTOR
Manufacturer model/SKU	JK57HS76-2804-76A
Features	Motor
General physical appearance
Main color	Black
Weight [g]	1050
Dimension X [mm]	57
Dimension Y [mm]	57
Dimension Z [mm]	76
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	5.2
Form factor	NEMA23
Actuator
Actuator type	Stepper motor
Step angle [°]	1.8 (±5%)
Position feedback	No
Maximum holding torque [N.m]	1.89
Minimum motor voltage [V DC]	3.1
Maximum continuous RMS current per phase [A]	2.8
Phase resistance [Ω]	1.1 (±10%)
Phase inductance [mH]	3.6 (±20%) (@1kHz)
Insulation class	B
Shaft
Shaft type	D-shape
Shaft diameter [mm]	8.0
Shaft length [mm]	20
Connectors
Motor connector(s)	JST-XH (compatible) female
Package contents
Package contents	1x Stepper motor
