Name: Stepper Motor - 0.49N.m - 1.68A - NEMA17 - JST-PH Compatible Connector - JK17HS8401
SKU: 004446
Price: 13 EUR
Availability: InStock

Stepper Motor - 0.49N.m - 1.68A - NEMA17 - JST-PH Compatible Connector

Availability: Directly available from warehouse in Eindhoven
SKU: 004446

Based on 0 review(s) - Write a review

€13.00

Ex Tax: €10.74

10 or more €12.75

20 or more €12.50

50 or more €12.25

100 or more €12.00

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

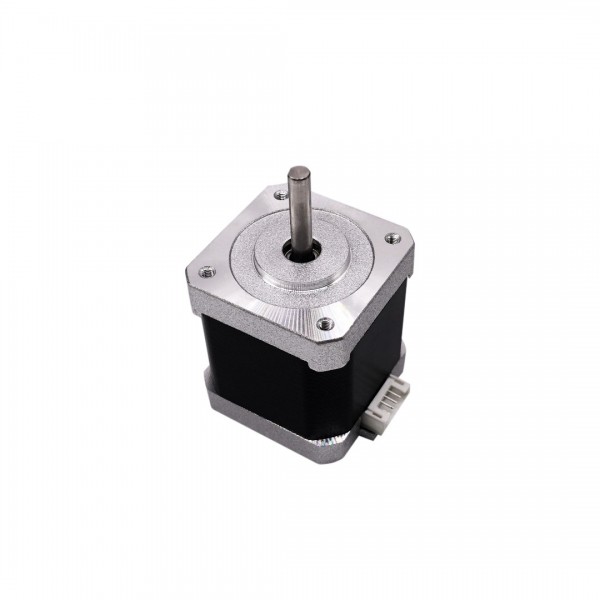

A powerful bipolar stepper motor suitable for various applications including 3D printers. The motor has a standard JST-PH compatible connector which makes it easy to connect. The accompanying cable is not included but can be bought seperately: Stepper motor cable.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Stepper Motor - 0.49N.m - 1.68A - NEMA17 - JST-PH Compatible Connector

Average Rating:

This product has 0 review(s) in total.

Datasheet: 004446_17HS8401_stepper_motor.pdf

Tags: Stepper Motor - 0.49N.m - 1.68A - NEMA17 - JST-PH Compatible Connector , JK17HS8401 , Stepper Motors

Specifications

General
Brand	JKONGMOTOR
Manufacturer model/SKU	17HS8401
Features	Motor
General physical appearance
Main color	Black
Weight [g]	362
Dimension X [mm]	42
Dimension Y [mm]	42
Dimension Z [mm]	50
Mounting options	Screw thread
Thread size	M3
Form factor	NEMA17
Actuator
Actuator type	Stepper motor
Step angle [°]	1.8 (±5%)
Position feedback	No
Maximum holding torque [N.m]	0.49
Minimum motor voltage [V DC]	2.8
Maximum continuous RMS current per phase [A]	1.68
Phase resistance [Ω]	1.65 (±10%)
Phase inductance [mH]	2.8 (±20%) (@1kHz)
Insulation class	B
Shaft
Shaft type	D-shape
Shaft diameter [mm]	5.0
Shaft length [mm]	22
Connectors
Motor connector(s)	JST-PH (compatible) male
Package contents
Package contents	1x Stepper motor
