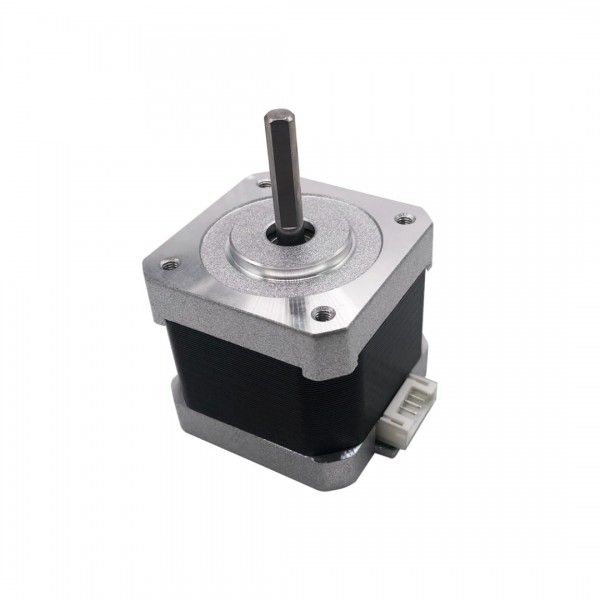

Name: Stepper Motor - 0.41N.m - 1.7A - NEMA17 - JST-PH Compatible Connector - JK42HS40-1704-13A
SKU: 004139
Price: 10.5 EUR
Availability: InStock
Rating: 5 (1 reviews)

Stepper Motor - 0.41N.m - 1.7A - NEMA17 - JST-PH Compatible Connector

Availability: Directly available from warehouse in Eindhoven
SKU: 004139

Based on 1 review(s) - Write a review

€10.50

Ex Tax: €8.68

10 or more €10.00

20 or more €9.50

50 or more €9.00

100 or more €8.50

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

A 4 pin bipolar stepper motor suitable for various applications. The motor has a standard JST-PH compatible connector which makes it easy to connect. The corresponding cable is not included, but is sold separately.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Stepper Motor - 0.41N.m - 1.7A - NEMA17 - JST-PH Compatible Connector

Average Rating:

This product has 1 review(s) in total.

Datasheet: 004139_42hs40-1704-13a-datasheet.pdf

Tags: Stepper Motor - 0.41N.m - 1.7A - NEMA17 - JST-PH Compatible Connector , JK42HS40-1704-13A , Stepper Motors

Specifications

General
Brand	JKONGMOTOR
Manufacturer model/SKU	JK42HS40-1704-13A
Features	Motor
General physical appearance
Main color	Black
Weight [g]	285
Dimension X [mm]	42
Dimension Y [mm]	42
Dimension Z [mm]	40
Mounting options	Screw thread
Thread size	M3
Form factor	NEMA17
Actuator
Actuator type	Stepper motor
Step angle [°]	1.8 (±5%)
Position feedback	No
Maximum holding torque [N.m]	0.41
Minimum motor voltage [V DC]	2.6
Maximum continuous RMS current per phase [A]	1.7
Phase resistance [Ω]	1.5 (±10%)
Phase inductance [mH]	2.3 (±20%) (@1kHz)
Insulation class	B
Shaft
Shaft type	D-shape
Shaft diameter [mm]	5.0
Shaft length [mm]	22
Connectors
Motor connector(s)	JST-PH (compatible) male
Package contents
Package contents	1x Stepper motor
