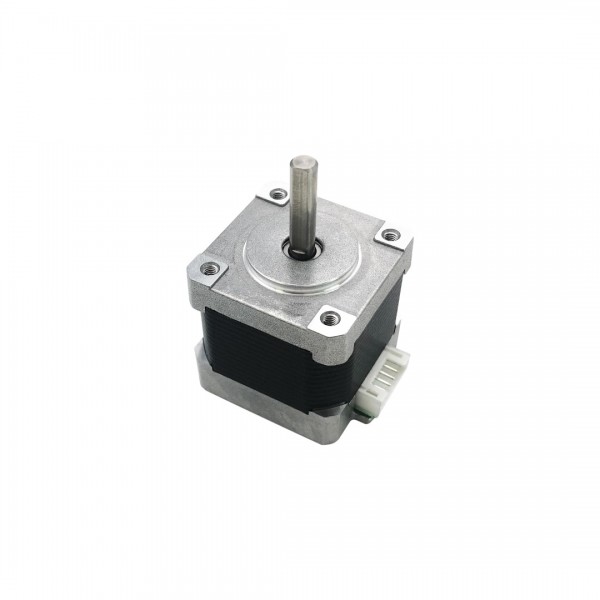

Name: Stepper Motor - 0.14N.m - 1A - NEMA14 - JST-PH Compatible Connector - JK35HY34-1004A-04
SKU: 004141
Price: 11 EUR
Availability: OutOfStock

Stepper Motor - 0.14N.m - 1A - NEMA14 - JST-PH Compatible Connector

2-4 Weeks

Stepper Motor - 0.14N.m - 1A - NEMA14 - JST-PH Compatible Connector

Availability: 2-4 Weeks
SKU: 004141

Based on 0 review(s) - Write a review

€11.00

Ex Tax: €9.09

Qty

Add to Cart

Add to wishlist

Not in stock

A somewhat smaller 4 pin bipolar stepper motor suitable for various applications. The motor has a standard JST-PH compatible connector which makes it easy to connect. The corresponding cable is not included, but is sold separately.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Stepper Motor - 0.14N.m - 1A - NEMA14 - JST-PH Compatible Connector

Average Rating:

This product has 0 review(s) in total.

Datasheet: 004141_35hy34-1004acf-01-datasheet.pdf

Tags: Stepper Motor - 0.14N.m - 1A - NEMA14 - JST-PH Compatible Connector , JK35HY34-1004A-04 , Stepper Motors

Specifications

General
Brand	JKONGMOTOR
Manufacturer model/SKU	JK35HY34-1004A-04
Features	Motor
General physical appearance
Main color	Black
Weight [g]	175
Dimension X [mm]	35
Dimension Y [mm]	35
Dimension Z [mm]	34
Mounting options	Screw thread
Thread size	M3
Form factor	NEMA14
Actuator
Actuator type	Stepper motor
Step angle [°]	1.8 (±5%)
Position feedback	No
Maximum holding torque [N.m]	0.14
Minimum motor voltage [V DC]	2.7
Maximum continuous RMS current per phase [A]	1
Phase resistance [Ω]	2.7 (±10%)
Phase inductance [mH]	4.3 (±20%) (@1kHz)
Insulation class	B
Shaft
Shaft type	D-shape
Shaft diameter [mm]	5.0
Shaft length [mm]	19
Connectors
Motor connector(s)	JST-PH (compatible) male
Package contents
Package contents	1x Stepper motor
