Linear Guide Stepper Motor - 50mm 5kg - 0.6A - NEMA14

2-4 Weeks

Linear Guide Stepper Motor - 50mm 5kg - 0.6A - NEMA14

Based on 0 review(s) - Write a review

€34.50

Ex Tax: €28.51

10 or more €34.00

20 or more €33.50

Qty

Add to Cart

Add to wishlist

Not in stock

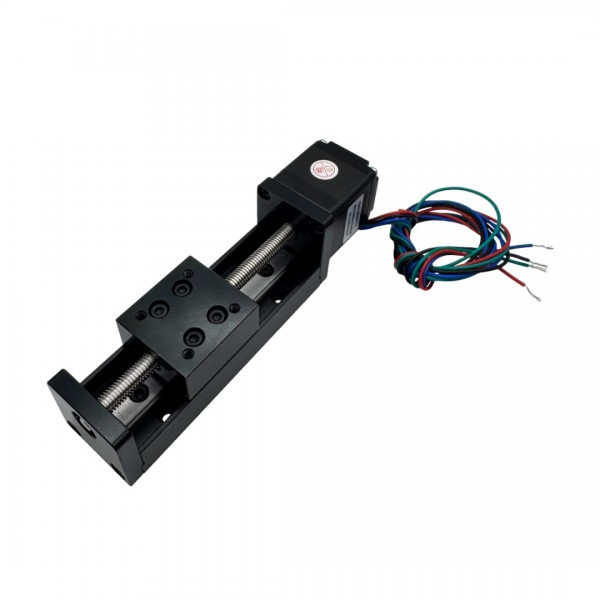

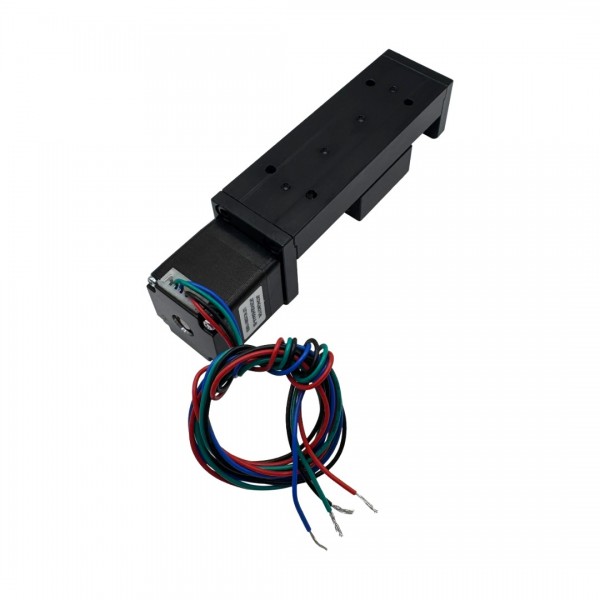

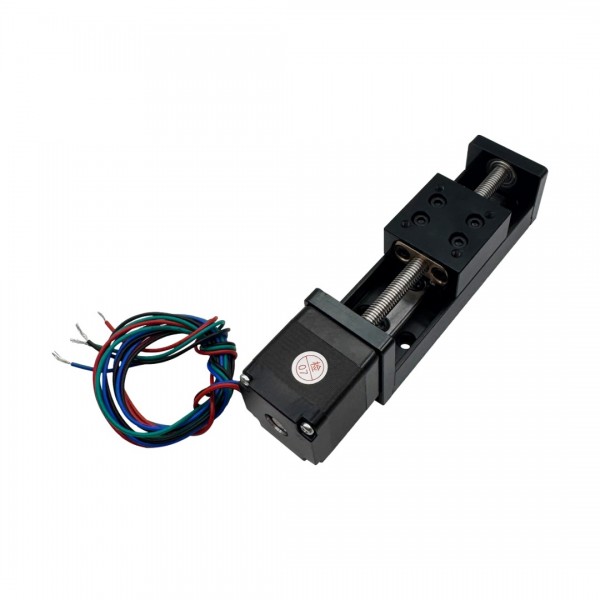

A compact 4-pin bipolar stepper motor with a linear guide suitable for various applications.

Please login or register to review

This product has 0 review(s) in total.

Tags: Linear Guide Stepper Motor - 50mm 5kg - 0.6A - NEMA14 , JK28H30H0644A-LIN50MM , Stepper Motors

General
Brand	JKONGMOTOR
Manufacturer model/SKU	JK28H30H0644A-50
Features	Motor
General physical appearance
Main color	Black
Weight [g]	281
Dimension X [mm]	128
Dimension Y [mm]	35
Dimension Z [mm]	30
Mounting options	Mounting hole(s) Screw thread
Diameter mounting hole(s) [mm]	3.3
Thread size	M3
Form factor	NEMA17
Actuator
Actuator type	Stepper motor
Stroke [mm]	50
Step angle [°]	1.8
Position feedback	No
Maximum holding torque [N.m]	0.07 (rotational)
Maximum load (horizontal) [kg]	5
Maximum load (vertical) [kg]	1
Minimum motor voltage [V DC]	4
Maximum continuous RMS current per phase [A]	0.6
Phase resistance [Ω]	6.7
Maximum speed (horizontal) [mm/s]	120
maximum speed (vertically) [mm/s]	50
Lead screw
Type	TR6x
Diameter [mm]	6
Lead [mm]	1
Connectors
Motor connector(s)	Loose wire
Package contents
Package contents	1x Linear actuator
