Name: TS90D Mini Servo - 1.6kg - TS90D-180
SKU: 006307
Price: 4.5 EUR
Availability: InStock

TS90D Mini Servo - 1.6kg

New

TS90D Mini Servo - 1.6kg

Availability: Directly available from warehouse in Eindhoven
SKU: 006307

Based on 0 review(s) - Write a review

€4.50

Ex Tax: €3.72

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

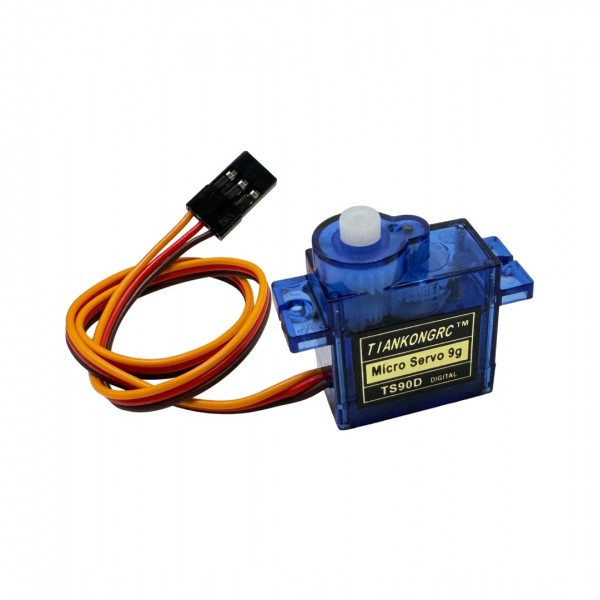

A small 180° rotation servo that is easy to control. It comes with a few pieces of plastic that you can mount on it, to which you can then mount other things.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over TS90D Mini Servo - 1.6kg

Average Rating:

This product has 0 review(s) in total.

Datasheet: 006307_Data Sheet of TS90D Digital Servo Motor.pdf

Tags: TS90D Mini Servo - 1.6kg , TS90D-180 , Servomotors

Specifications

General
Brand	TianKongRC
Manufacturer model/SKU	TS90D
Minimum operating temperature [°C]	-25
Maximum operating temperature [°C]	70
Features	Servo motor
General physical appearance
Main color	Blue
Weight [g]	10
Dimension X [mm]	22
Dimension Y [mm]	12
Dimension Z [mm]	27
Mounting options	Mounting hole(s)
General electrical properties
Minimum supply voltage [V DC]	3
Maximum supply voltage [V DC]	6
Minimum recommended supply current [A]	0.8
Minimum IO-pin input voltage [V]	3
Maximum IO-pin input voltage [V]	5
Communication
Hardware interface(s)	PWM
Actuator
Actuator type	Brushed DC motor
Rotational range	0 - 180°
Mechanical end-stops	Yes
Position feedback	No
Maximum holding torque [N.m]	0.15 (1.6kg.cm) (@6.0V)
Maximum speed [s/60°]	0.07 (@6.0V) 0.09 (@3.0V)
Gear material	Plastic
Shaft
Shaft type	Spline 21T
Shaft length [mm]	3
Connectors
Power supply connector(s)	Pin header female (2.54mm)
IO-connector(s)	Pin header female (2.54mm)
Wire/cable
Wire/cable length [m]	0.25
Package contents

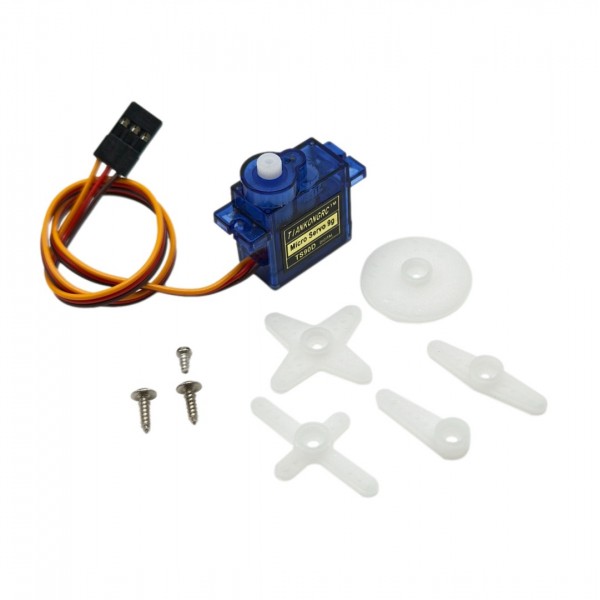

Package contents	1x Servo motor 1x Shaft accessories (see images) 1x Accessory mounting screw 2x Mounting screw
