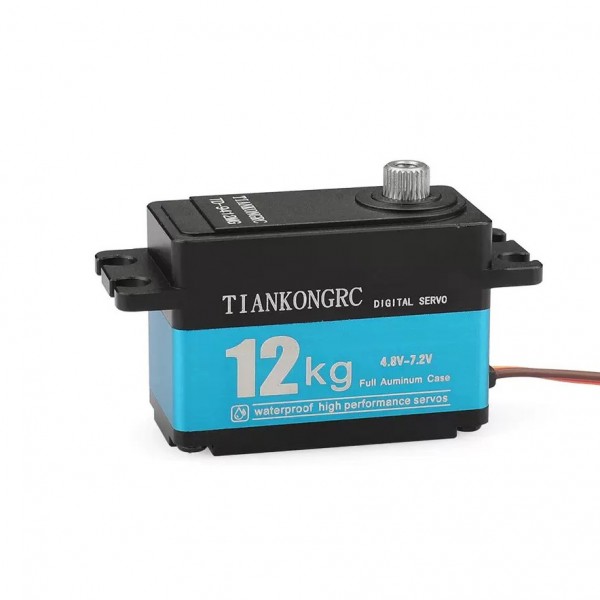

TD-9412MG Waterproof Digital Servo - 12kg

Availability: Directly available from warehouse in Eindhoven
SKU: 006302

Based on 0 review(s) - Write a review

€11.50

Ex Tax: €9.50

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

A powerful servo that is easy to control. It comes with a few pieces of plastic that you can mount on it, to which you can then mount other things. This servo is completely made of metal on the outside and is also waterproof.

Note: This servo can draw relatively high currents, especially with a load (up to approximately 2.7A at 8.4V at standstill). So choose a suitable power supply for the servo. It is not recommended to use the 5V pin of a microcontroller as power supply.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over TD-9412MG Waterproof Digital Servo - 12kg

Average Rating:

This product has 0 review(s) in total.

Datasheet: 006302_Data Sheet of TD9412MG--12KG Digital Servo Motor (1).pdf

Tags: TD-9412MG Waterproof Digital Servo - 12kg , TD-9412MG , Servomotors

Specifications

General
Brand	TianKongRC
Manufacturer model/SKU	TD-9412MG
Minimum operating temperature [°C]	-25
Maximum operating temperature [°C]	70
Features	Servo motor
General physical appearance
Main color	Blue
Weight [g]	58
Dimension X [mm]	41
Dimension Y [mm]	21
Dimension Z [mm]	29
Material	Aluminum
Water and dust protection	IP65
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	4.3
General electrical properties
Minimum supply voltage [V DC]	4.8
Maximum supply voltage [V DC]	8.4
Minimum recommended supply current [A]	2.7
Minimum IO-pin input voltage [V]	3
Maximum IO-pin input voltage [V]	5
Communication
Hardware interface(s)	PWM
Actuator
Actuator type	Brushed DC motor
Rotational range	0 - 180°
Mechanical end-stops	No
Position feedback	No
Maximum holding torque [N.m]	1.4 (14.5kg.cm) (@7.2V) 1.1 (11.5kg.cm) (@4.8V)
Maximum speed [s/60°]	0.09 (@7.2V) 0.12 (@4.8V)
Gear material	Metal
Shaft
Shaft type	Spline 25T
Shaft length [mm]	4.5
Connectors
Power supply connector(s)	Pin header female (2.54mm)
IO-connector(s)	Pin header female (2.54mm)
Wire/cable
Wire/cable length [m]	0.3
Pinout
Power supply pin	Red wire
Ground/min	Brown wire
Data	Orange wire
Package contents
Package contents	1x Servo motor 1x Shaft accessories (see images) 1x Accessory mounting screw 4x Mounting screw 4x Insert for vibration absorber 4x Vibration absorber
