Name: TD-8130MG Waterproof Digital Servo - 30kg - Continuous - TD-8130MG-CONT
SKU: 002406
Price: 14.5 EUR
Availability: InStock

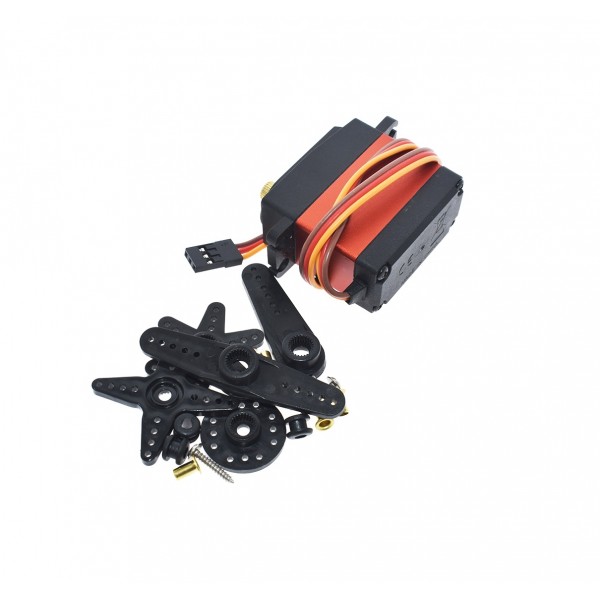

TD-8130MG Waterproof Digital Servo - 30kg - Continuous

Availability: Directly available from warehouse in Eindhoven
SKU: 002406

Based on 0 review(s) - Write a review

€14.50

Ex Tax: €11.98

10 or more €14.00

20 or more €13.50

50 or more €13.00

100 or more €12.50

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

A very powerful servo that is easy to control. It comes with a few pieces of plastic that you can mount on it, to which you can then mount other things. This servo is splashproof.

Note: This servo can draw relatively high currents, especially with a load (up to approximately 3600mA at 8.4V at standstill). So choose a suitable power supply for the servo. It is not recommended to use the Arduino as power supply.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over TD-8130MG Waterproof Digital Servo - 30kg - Continuous

Average Rating:

This product has 0 review(s) in total.

Datasheet: 002406_Data Sheet of TD-8130MG 30kg 360 Digital Servo Motor.pdf

Tags: TD-8130MG Waterproof Digital Servo - 30kg - Continuous , TD-8130MG-CONT , Servomotors

Specifications

General
Brand	TianKongRC
Manufacturer model/SKU	TD-8130MG
Minimum operating temperature [°C]	-25
Maximum operating temperature [°C]	70
Features	Servo motor
General physical appearance
Main color	Black
Weight [g]	66
Dimension X [mm]	40
Dimension Y [mm]	20
Dimension Z [mm]	42
Water and dust protection	Splash-proof
Mounting options	Mounting hole(s)
General electrical properties
Minimum supply voltage [V DC]	4.8
Maximum supply voltage [V DC]	8.4
Minimum recommended supply current [A]	3.6
Minimum IO-pin input voltage [V]	3
Maximum IO-pin input voltage [V]	5
Communication
Hardware interface(s)	PWM
Actuator
Actuator type	Brushed DC motor
Rotational range	Continuous (no limit)
Position feedback	No
Maximum holding torque [N.m]	3.1 (32kg.cm) (@8.4V) 2.8 (29.5kg.cm) (@4.8V)
Maximum speed [s/60°]	0.18 (@8.4V) 0.29 (@4.8V)
Maximum speed [RPM]	57 (@8.4V) 34 (@4.8V)
Gear material	Metal
Shaft
Shaft type	Spline 25T
Shaft length [mm]	4.1
Connectors
Power supply connector(s)	Pin header female (2.54mm)
IO-connector(s)	Pin header female (2.54mm)
Wire/cable
Wire/cable length [m]	0.3
Pinout
Power supply pin	Red wire
Ground/min	Brown wire
Data	Orange wire
Package contents

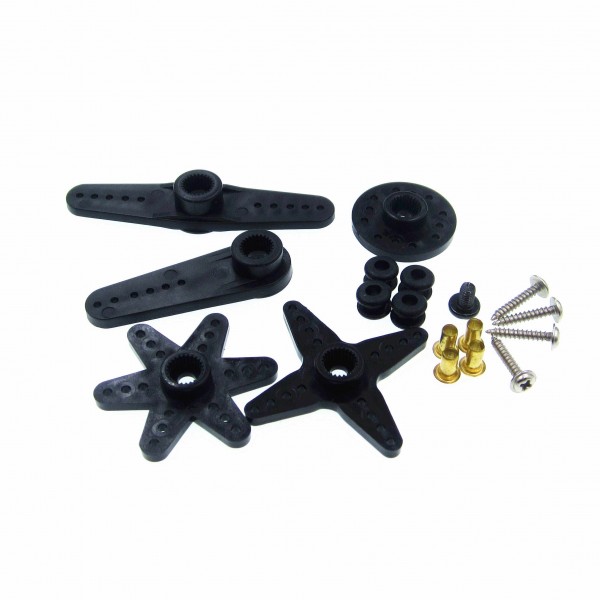

Package contents	1x Servo motor 1x Shaft accessories (see images) 1x Accessory mounting screw 4x Mounting screw 4x Insert for vibration absorber 4x Vibration absorber
