TD-8125MG Waterproof Digital Servo - 25kg


                      - Availability: Directly available from warehouse in Eindhoven
- SKU: 002403
€11.00
                            Ex Tax: €9.09

                        Your shopping cart is empty!

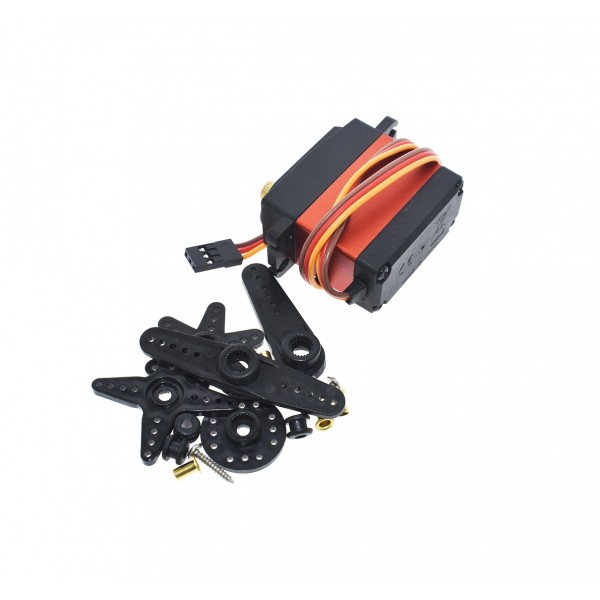

                        A very powerful servo that is easy to control. It comes with a few pieces of plastic that you can mount on it, to which you can then mount other things. This servo is splashproof.
Note: This servo can draw relatively high currents, especially with a load (up to approximately 3400mA at 4.8V at standstill). So choose a suitable power supply for the servo. It is not recommended to use the Arduino as power supply.
Note: If the servo has less than 180 degrees range, the minimum (500us) and maximum pulse width (2500us) must be adjusted in the controller.
| General | |
| Brand | TianKongRC |
| Manufacturer model/SKU | TD-8125MG |
| Minimum operating temperature [°C] | -25 |
| Maximum operating temperature [°C] | 70 |
| Features | Servo motor |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 62 |

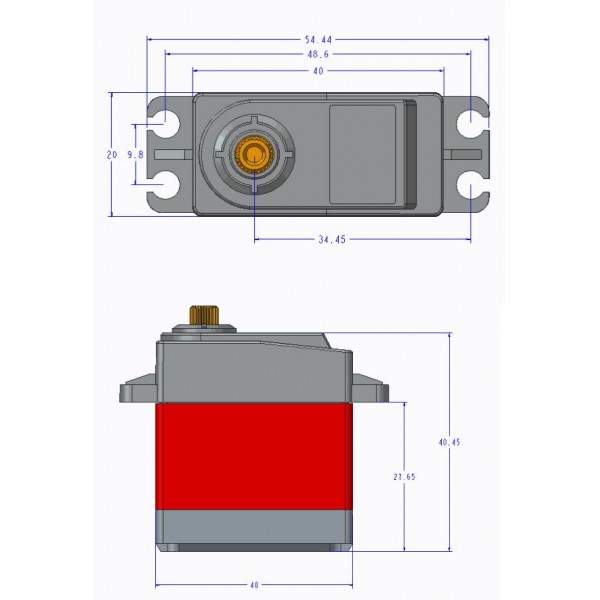

| Dimension X [mm] | 40 |
| Dimension Y [mm] | 20 |
| Dimension Z [mm] | 42 |
| Water and dust protection | Splash-proof |
| Mounting options | Mounting hole(s) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 4.8 |
| Maximum supply voltage [V DC] | 7.2 |
| Minimum recommended supply current [A] | 3.4 |
| Minimum IO-pin input voltage [V] | 4.8 |
| Maximum IO-pin input voltage [V] | 7.2 |
| Communication | |
| Hardware interface(s) | PWM |
| Actuator | |
| Actuator type | Brushed DC motor |
| Rotational range | 0 - 180° |
| Mechanical end-stops | No |
| Position feedback | No |
| Maximum holding torque [N.m] | 2.6 (26.8kg.cm) (@7.2V) 2.3 (23.5kg.cm) (@4.8V) |
| Maximum speed [s/60°] | 0.14 (@7.2V) 0.18 (@4.8V) |
| Gear material | Metal |
| Shaft | |
| Shaft type | Spline 25T |
| Shaft length [mm] | 4 |
| Connectors | |
| Power supply connector(s) | Pin header female (2.54mm) |
| IO-connector(s) | Pin header female (2.54mm) |
| Wire/cable | |
| Wire/cable length [m] | 0.3 |
| Pinout | |
| Power supply pin | Red wire |
| Ground/min | Brown wire |
| Data | Orange wire |
| Package contents | |

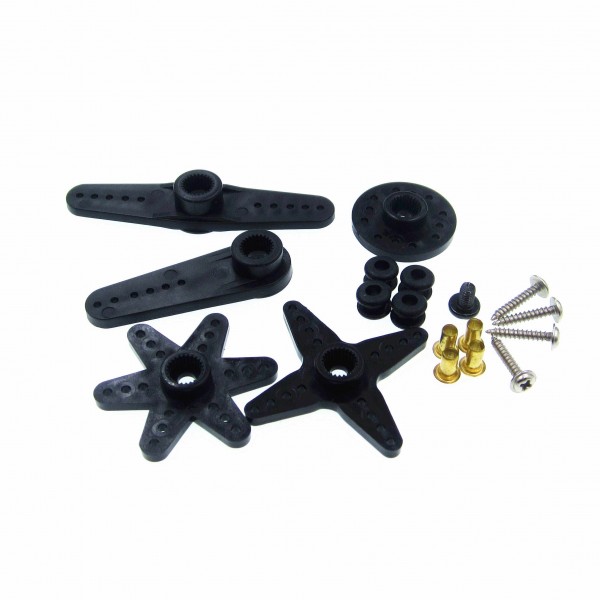

| Package contents | 1x Servo motor 1x Shaft accessories (see images) 1x Accessory mounting screw 4x Mounting screw 4x Insert for vibration absorber 4x Vibration absorber |
