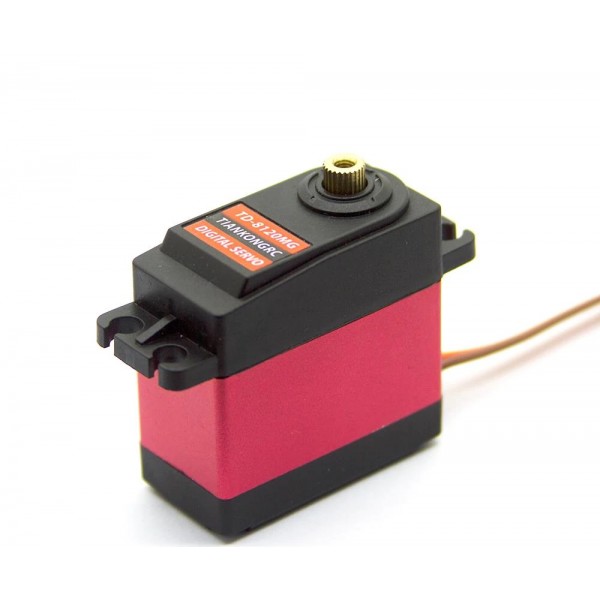

TD-8120MG Waterproof Digital Servo - 20kg - Continuous

TD-8120MG Waterproof Digital Servo - 20kg - Continuous
TD-8120MG Waterproof Digital Servo - 20kg - Continuous
TD-8120MG Waterproof Digital Servo - 20kg - Continuous
TD-8120MG Waterproof Digital Servo - 20kg - Continuous
TD-8120MG Waterproof Digital Servo - 20kg - Continuous
TD-8120MG Waterproof Digital Servo - 20kg - Continuous
TD-8120MG Waterproof Digital Servo - 20kg - Continuous
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 002316
Based on 1 review(s) - Write a review
€11.00
Ex Tax: €9.09
10 or more €10.50
20 or more €10.00
50 or more €9.75
100 or more €9.50
Add to Cart
Add to wishlist

A very powerful digital continuous rotation servo that is easy to control. It comes with a few pieces of plastic that you can mount on it, to which you can then mount other things. This servo is splashproof.

Note: This servo can draw relatively high currents, especially with a load (up to approximately 2700mA at 8.4V at standstill). So choose a suitable power supply for the servo. It is not recommended to take the Arduino as power supply.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over TD-8120MG Waterproof Digital Servo - 20kg - Continuous

This product has 1 review(s) in total.

Tags: Motors , Servomotors , TD-8120MG Waterproof Digital Servo - 20kg - Continuous , 002316 , TianKongRC , TD-8120MG , Servo motor , PWM

Specifications

General
Brand TianKongRC
Manufacturer model/SKU TD-8120MG
Minimum operating temperature [°C] -25
Maximum operating temperature [°C] 70
Features Servo motor
General physical appearance
Main color Black
Weight [g] 66

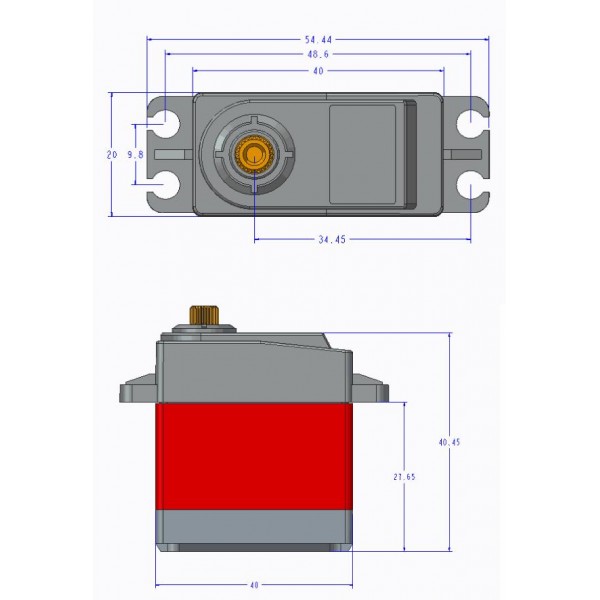

Dimension X [mm] 40
Dimension Y [mm] 20
Dimension Z [mm] 42
Water and dust protection Splash-proof
Mounting options Mounting hole(s)
General electrical properties
Minimum supply voltage [V DC] 4.8
Maximum supply voltage [V DC] 8.4
Minimum recommended supply current [A] 2.7
Minimum IO-pin input voltage [V] 3
Maximum IO-pin input voltage [V] 5
Communication
Hardware interface(s) PWM
Actuator
Actuator type Brushed DC motor
Rotational range Continuous (no limit)
Position feedback No
Maximum holding torque [N.m] 2.2
(22.8kg.cm)
(@8.4V)
2.0
(20.5kg.cm)
(@4.8V)
Maximum speed [s/60°] 0.17
(@8.4V)
0.28
(@4.8V)
Maximum speed [RPM] 60
(@8.4V)
36
(@4.8V)
Transmission
Gear material Metal
Shaft
Shaft type Spline 25T
Shaft length [mm] 4
Connectors
Power supply connector(s) Pin header female (2.54mm)
IO-connector(s) Pin header female (2.54mm)
Wire/cable
Wire/cable length [m] 0.3
Pinout
Power supply pin Red wire
Ground/min Brown wire
Data Orange wire
Package contents
Package contents 1x Servo motor
1x Accessory mounting screw

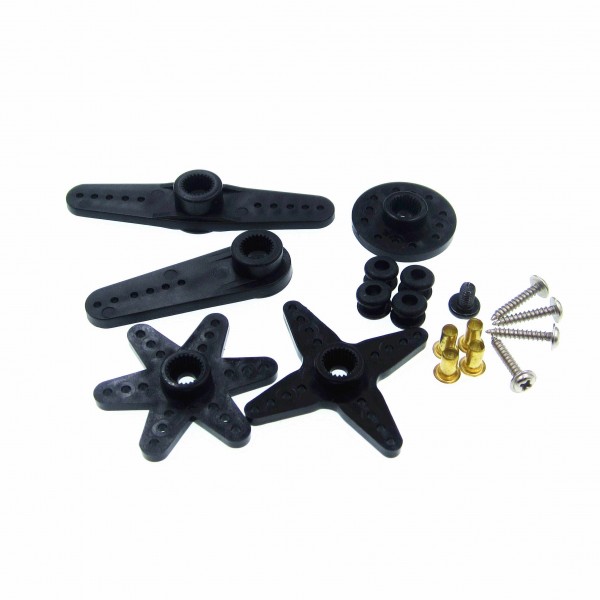

1x Shaft accessories (see images)
4x Mounting screw
4x Vibration absorber
4x Insert for vibration absorber
