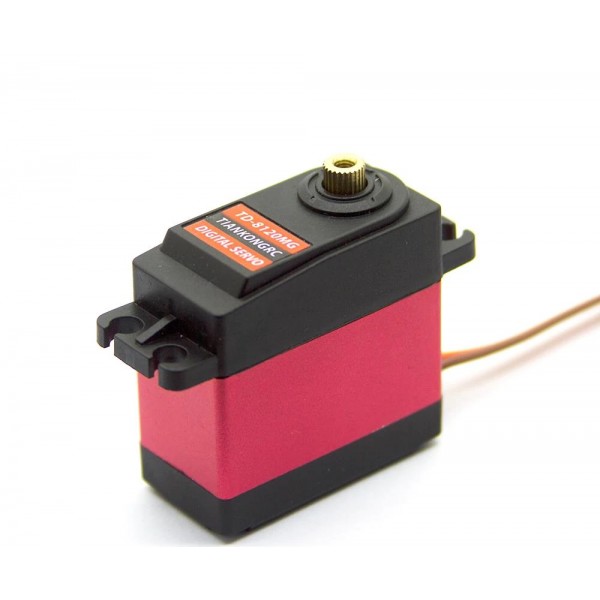

TD-8120MG Waterproof Digital Servo - 20kg

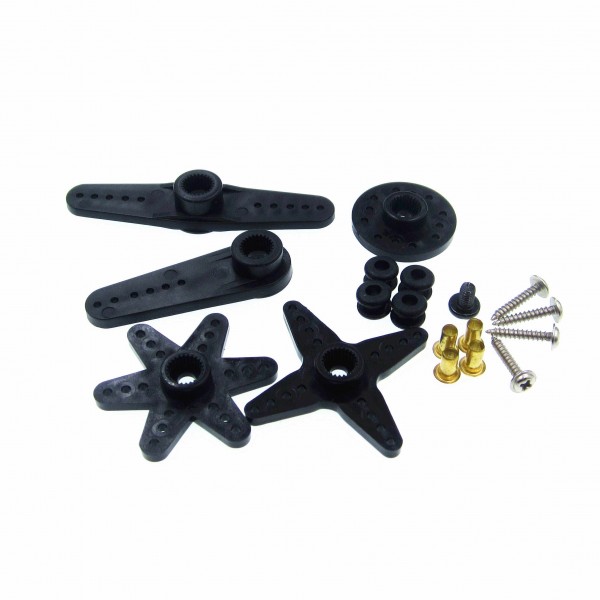

A very powerful servo that is easy to control. It comes with a few pieces of plastic that you can mount on it, to which you can then mount other things. This servo is splashproof.

Note: This servo can draw relatively high currents, especially with a load (up to approximately 2700mA at 8.4V at standstill). So choose a suitable power supply for the servo. It is not recommended to use the Arduino as power supply.

Note: If the servo has less than 180 degrees range, the minimum (500us) and maximum pulse width (2500us) must be adjusted in the controller.

Check the tab "Downloads" for more information and/or downloads.
