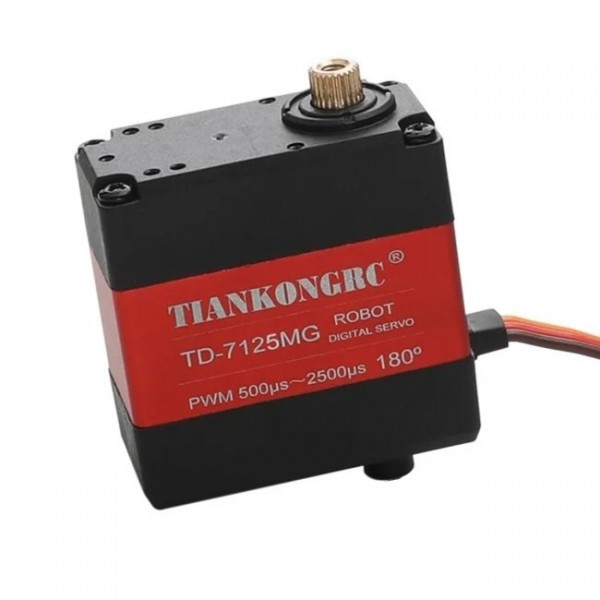

TD-7125MG Waterproof Digital Servo - 25kg - Dual Axis

Availability: Directly available from warehouse in Eindhoven
SKU: 006298

Based on 0 review(s) - Write a review

€11.50

Ex Tax: €9.50

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

A very powerful servo that is easy to control. This servo has a double axis (one side of which does not rotate), which allows you to create a relatively sturdy pivot point using the supplied plastic wheels. In addition, the servo is waterproof.

Note: This servo can draw relatively high currents, especially with a load (up to approximately 3.7A at 8.4V at standstill). So choose a suitable power supply for the servo. It is not recommended to use the 5V pin of a microcontroller as power supply.

Please login or register to review

Reviews Over TD-7125MG Waterproof Digital Servo - 25kg - Dual Axis

Average Rating:

This product has 0 review(s) in total.

Tags: TD-7125MG Waterproof Digital Servo - 25kg - Dual Axis , TD-7125MG , Servomotors

Specifications

General
Brand	TianKongRC
Manufacturer model/SKU	TD-7125MG
Minimum operating temperature [°C]	-25
Maximum operating temperature [°C]	70
Features	Servo motor
General physical appearance
Main color	Black
Weight [g]	62
Dimension X [mm]	40
Dimension Y [mm]	21
Dimension Z [mm]	41
Material	Aluminum Plastic (unknown material)
Water and dust protection	IP66
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	2
General electrical properties
Minimum supply voltage [V DC]	4.8
Maximum supply voltage [V DC]	8.4
Minimum recommended supply current [A]	3.7
Minimum IO-pin input voltage [V]	3
Maximum IO-pin input voltage [V]	5
Communication
Hardware interface(s)	PWM
Actuator
Actuator type	Brushed DC motor
Rotational range	0 - 180°
Mechanical end-stops	No
Position feedback	No
Maximum holding torque [N.m]	2.7 (27.8kg.cm) (@8.4V) 2.3 (23.5kg.cm) (@4.8V)
Maximum speed [s/60°]	0.14 (@8.4V) 0.18 (@4.8V)
Gear material	Metal
Shaft
Shaft type	Double Spline 25T
Shaft length [mm]	4.5
Connectors
Power supply connector(s)	Pin header female (2.54mm)
IO-connector(s)	Pin header female (2.54mm)
Wire/cable
Wire/cable length [m]	0.3
Pinout
Power supply pin	Red wire
Ground/min	Brown wire
Data	Orange wire
Package contents

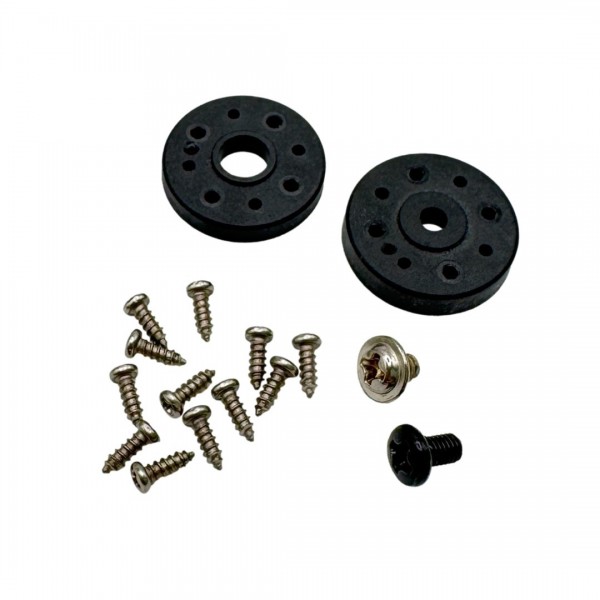

Package contents	1x Servo motor 1x Accessory mounting screw 12x Mounting screw 1x Freewheel mounting screw 1x Servo wheel 1x Servo freewheel
