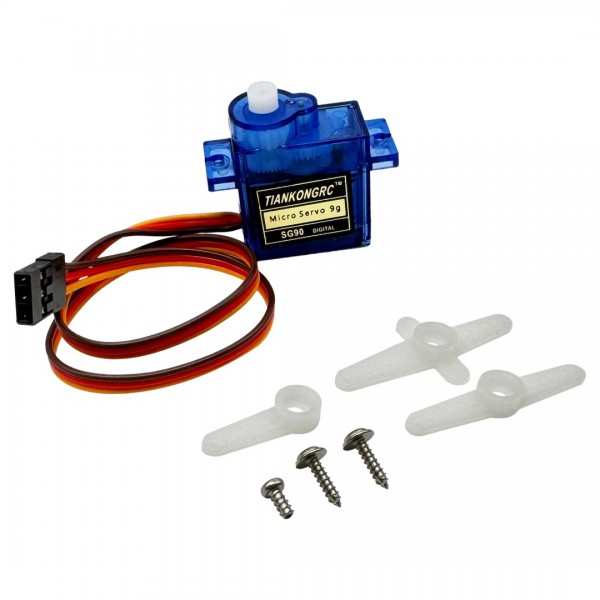

SG90 Digital Mini Servo

Based on 0 review(s) - Write a review

€3.50

Ex Tax: €2.89

10 or more €3.25

20 or more €3.00

50 or more €2.75

100 or more €2.50

1000 or more €2.25

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

A compact servo that is very easy to control. This version is digital, giving it a higher accuracy compared to the standard analog SG90.

Note: If the servo has less than 180 degrees range, the minimum (500us) and maximum pulse width (2500us) must be adjusted in the controller.

Please login or register to review

This product has 0 review(s) in total.

Tags: SG90 Digital Mini Servo , SG90-DIGITAL , Servomotors

General
Brand	TianKongRC
Manufacturer model/SKU	SG90 Digital
Minimum operating temperature [°C]	-25
Maximum operating temperature [°C]	70
Features	Servo motor
General physical appearance
Main color	Blue
Weight [g]	11
Dimension X [mm]	23
Dimension Y [mm]	12
Dimension Z [mm]	27
Mounting options	Mounting hole(s)
General electrical properties
Minimum supply voltage [V DC]	4.8
Maximum supply voltage [V DC]	6
Minimum recommended supply current [A]	0.8
Minimum IO-pin input voltage [V]	3
Maximum IO-pin input voltage [V]	5
Communication
Hardware interface(s)	PWM
Actuator
Actuator type	Brushed DC motor
Rotational range	0 - 180°
Mechanical end-stops	No
Position feedback	No
Maximum holding torque [N.m]	0.17 (1.8kg.cm) (@6.0V) 0.13 (1.3kg.cm) (@4.8V)
Maximum speed [s/60°]	0.08 (@6.0V) 0.10 (@4.8V)
Gear material	Plastic
Shaft
Shaft type	Spline 21T
Shaft length [mm]	3.2
Connectors
Power supply connector(s)	Pin header female (2.54mm)
IO-connector(s)	Pin header female (2.54mm)
Wire/cable
Wire/cable length [m]	0.25
Package contents
Package contents	1x Servo motor 1x Shaft accessories (see images) 1x Accessory mounting screw 2x Mounting screw
