Seeed Studio Grove Servo
- Availability: Directly available from warehouse in Eindhoven
- SKU: 003779
€9.00
Ex Tax: €7.44
Your shopping cart is empty!
A simple servo from Seeed Studio. This servo has a cable with a Grove connector, so you can easily connect this servo to other Seeed Studio products.
See the following page for more information: Seeed Studio Grove Servo.
| General | |
| Brand | Seeed Studio |
| Manufacturer model/SKU | 316010005 |
| Features | Servo motor |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 9 |

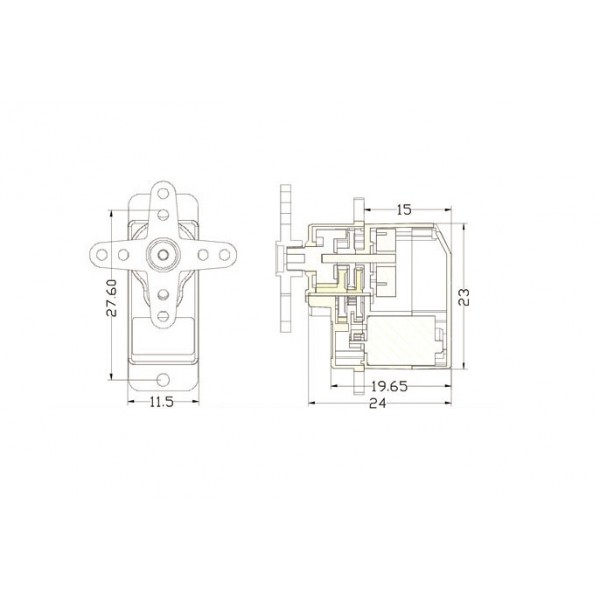

| Dimension X [mm] | 24 |
| Dimension Y [mm] | 12 |
| Dimension Z [mm] | 24 |
| Mounting options | Mounting hole(s) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 4.8 |
| Maximum supply voltage [V DC] | 6 |
| Minimum recommended supply current [A] | 0.8 |
| Minimum IO-pin input voltage [V] | 4.8 |
| Maximum IO-pin input voltage [V] | 6 |
| Communication | |
| Hardware interface(s) | PWM |
| Actuator | |
| Actuator type | Brushed DC motor |
| Rotational range | 0 - 180° |
| Mechanical end-stops | Yes |
| Position feedback | No |
| Maximum holding torque [N.m] | 0.17 (1.8kg.cm) (@6.0V) 0.14 (1.5kg.cm) (@4.8V) |
| Maximum speed [s/60°] | 0.12 (@6.0V) 0.16 (@4.8V) |
| Transmission | |
| Gear material | Plastic |
| Shaft | |
| Shaft type | Spline 15T |
| Shaft length [mm] | 3 |
| Connectors | |
| Power supply connector(s) | HY2.0 (Grove) female |
| IO-connector(s) | HY2.0 (Grove) female |
| Wire/cable | |
| Wire/cable length [m] | 0.25 |
| Package contents | |

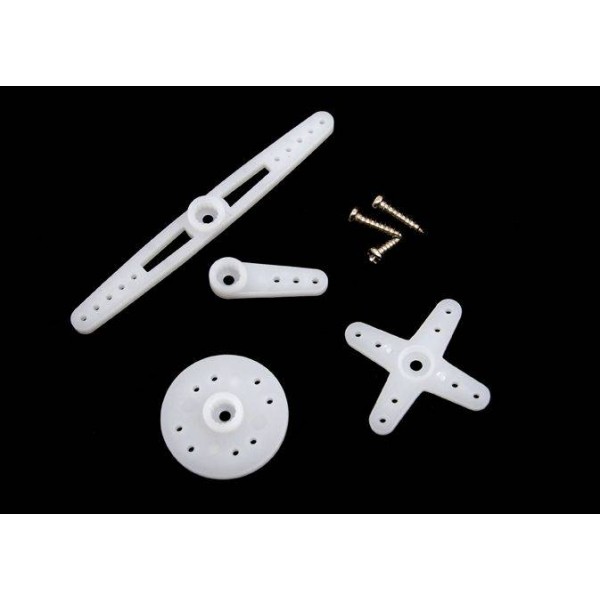

| Package contents | 1x Servo motor 2x Accessory mounting screw 1x Shaft accessories (see images) 3x Mounting screw |
