MG996R Servo - 10kg - Continuous

MG996R Servo - 10kg - Continuous
MG996R Servo - 10kg - Continuous
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 002402
Based on 1 review(s) - Write a review
€7.00
Ex Tax: €5.79
10 or more €6.75
20 or more €6.50
50 or more €6.25
100 or more €6.00
200 or more €5.75
Add to Cart
Add to wishlist

A fairly powerful servo that is easy to control and largely compatible with the TowerPro MG996R servo. There are a couple of pieces of plastic that you can mount on it, where you can then mount other things on.

Note: This servo can draw relatively high currents, especially with a load (up to approximately 2.2A at 7.4V at standstill). So choose a suitable power supply for the servo. It is not recommended to use the 5V pin of a microcontroller as power supply.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over MG996R Servo - 10kg - Continuous

This product has 1 review(s) in total.

Tags: MG996R Servo - 10kg - Continuous , MG996R-CONT , Servomotors

Specifications

General
Brand TianKongRC
Manufacturer model/SKU MG996R
Minimum operating temperature [°C] -25
Maximum operating temperature [°C] 70
Features Servo motor
General physical appearance
Main color Black
Weight [g] 55
Dimension X [mm] 40
Dimension Y [mm] 20
Dimension Z [mm] 41
Mounting options Mounting hole(s)
General electrical properties
Minimum supply voltage [V DC] 4.8
Maximum supply voltage [V DC] 7.4
Minimum recommended supply current [A] 2.2
Minimum IO-pin input voltage [V] 3
Maximum IO-pin input voltage [V] 5
Communication
Hardware interface(s) PWM
Actuator
Actuator type Brushed DC motor
Rotational range Continuous (no limit)
Position feedback No
Maximum holding torque [N.m] 1.5
(15.2kg.cm)
(@7.4V)
1.3
(13.5kg.cm)
(@4.8V)
Maximum speed [s/60°] 0.13
(@7.4V)
0.17
(@4.8V)
Gear material Metal
Shaft
Shaft type Spline 25T
Shaft length [mm] 3.8
Connectors
Power supply connector(s) Pin header female (2.54mm)
IO-connector(s) Pin header female (2.54mm)
Wire/cable
Wire/cable length [m] 0.3

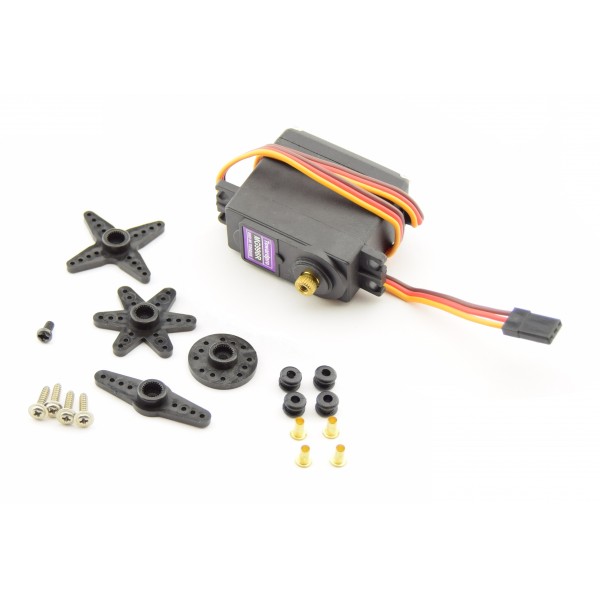

Package contents
Package contents 1x Servo motor
1x Shaft accessories (see images)
1x Accessory mounting screw
4x Mounting screw
4x Insert for vibration absorber
