MG90S Mini Servo

2-4 Weeks

MG90S Mini Servo

Availability: 2-4 Weeks
SKU: 000263

Based on 0 review(s) - Write a review

€5.00

Ex Tax: €4.13

10 or more €4.75

20 or more €4.50

50 or more €4.25

100 or more €4.00

Qty

Add to Cart

Add to wishlist

Not in stock

A nice servo to begin with. You can already perform quite some movements with it! This servo is very easy to control. The MG90S is almost the same as the SG90, but has metal gears for more speed and power.

Note: If the servo has less than 180° range, the minimum (500μs) and maximum pulse width (2500μs) must be adjusted in the controller.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over MG90S Mini Servo

Average Rating:

This product has 0 review(s) in total.

Datasheet: 000263_Data_Sheet_of_MG90S_Analog_Servo_Motor.pdf

Tags: MG90S Mini Servo , MG90S , Servomotors

Specifications

General
Brand	TianKongRC
Manufacturer model/SKU	MG90S
Minimum operating temperature [°C]	-25
Maximum operating temperature [°C]	70
Features	Servo motor
General physical appearance
Main color	Black
Weight [g]	18
Dimension X [mm]	23
Dimension Y [mm]	12
Dimension Z [mm]	28
Mounting options	Mounting hole(s)
General electrical properties
Minimum supply voltage [V DC]	4.8
Maximum supply voltage [V DC]	6
Minimum recommended supply current [A]	0.9
Minimum IO-pin input voltage [V]	3
Maximum IO-pin input voltage [V]	5
Communication
Hardware interface(s)	PWM
Actuator
Actuator type	Brushed DC motor
Rotational range	0 - 180°
Mechanical end-stops	Yes
Position feedback	No
Maximum holding torque [N.m]	0.19 (2.0kg.cm) (@6.0V) 0.17 (1.8kg.cm) (@4.8V)
Maximum speed [s/60°]	0.09 (@6.0V) 0.12 (@4.8V)
Gear material	Metal
Shaft
Shaft type	Spline 21T
Shaft length [mm]	4
Connectors
Power supply connector(s)	Pin header female (2.54mm)
IO-connector(s)	Pin header female (2.54mm)
Wire/cable
Wire/cable length [m]	0.25
Package contents

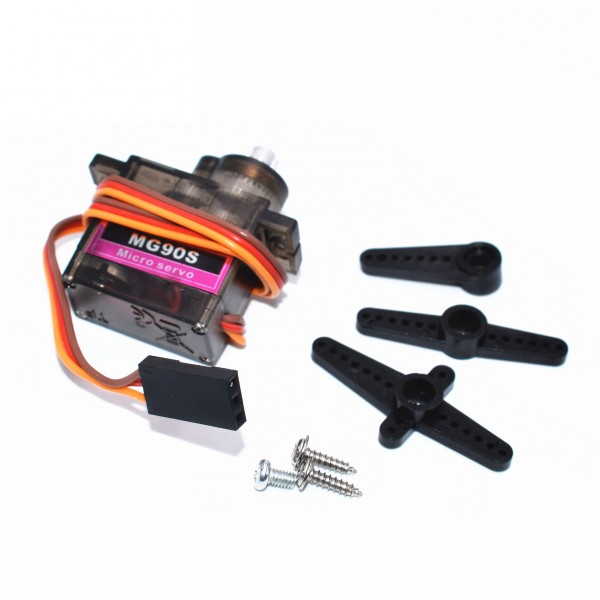

Package contents	1x Servo motor 1x Shaft accessories (see images) 1x Accessory mounting screw 2x Mounting screw
