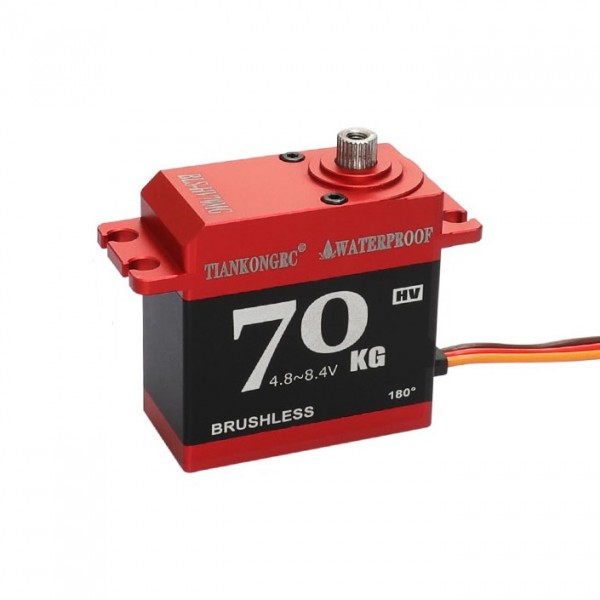

BLS-HV70MG Waterproof Digital Servo - 70kg

BLS-HV70MG Waterproof Digital Servo - 70kg
BLS-HV70MG Waterproof Digital Servo - 70kg
BLS-HV70MG Waterproof Digital Servo - 70kg
BLS-HV70MG Waterproof Digital Servo - 70kg
BLS-HV70MG Waterproof Digital Servo - 70kg
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006179
Based on 0 review(s) - Write a review
€29.25
Ex Tax: €24.17
10 or more €29.00
20 or more €28.75
50 or more €28.50
Add to Cart
Add to wishlist

A very powerful servo with high quality that is easy to control. It comes with a few pieces of plastic that you can mount on it, to which you can then mount other things. This servo is completely made of metal on the outside and is also extra waterproof.

Note: This servo can draw relatively high currents, especially with a load (up to approximately 12A at 8.4V at standstill). So choose a suitable power supply for the servo. It is not recommended to use the 5V pin of a microcontroller as power supply.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over BLS-HV70MG Waterproof Digital Servo - 70kg

This product has 0 review(s) in total.

Tags: Motors , Servomotors , BLS-HV70MG Waterproof Digital Servo - 70kg , 006179 , TianKongRC , BLS-HV70MG , Servo motor , PWM

Specifications

General
Brand TianKongRC
Manufacturer model/SKU BLS-HV70MG
Minimum operating temperature [°C] -10
Maximum operating temperature [°C] 60
Features Servo motor
General physical appearance
Main color Red
Weight [g] 92
Dimension X [mm] 40
Dimension Y [mm] 20
Dimension Z [mm] 43
Material Aluminum
Water and dust protection IP65
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 4.3
General electrical properties
Minimum supply voltage [V DC] 4.8
Maximum supply voltage [V DC] 8.4
Minimum recommended supply current [A] 12
Minimum IO-pin input voltage [V] 3
Maximum IO-pin input voltage [V] 5
Communication
Hardware interface(s) PWM
Actuator
Actuator type Brushless DC motor
Rotational range 0 - 180°
Mechanical end-stops No
Position feedback No
Maximum holding torque [N.m] 7
(71kg.cm)
(@8.4V)
5.4
(55kg.cm)
(@4.8V)
Maximum speed [s/60°] 0.10
(@8.4V)
0.13
(@4.8V)
Transmission
Gear material Metal
Shaft
Shaft type Spline 25T
Shaft length [mm] 4.5
Connectors
Power supply connector(s) Pin header female (2.54mm)
IO-connector(s) Pin header female (2.54mm)
Wire/cable
Wire/cable length [m] 0.3
Pinout
Power supply pin Inner white wire
Ground/min Black wire
Data Outer white wire

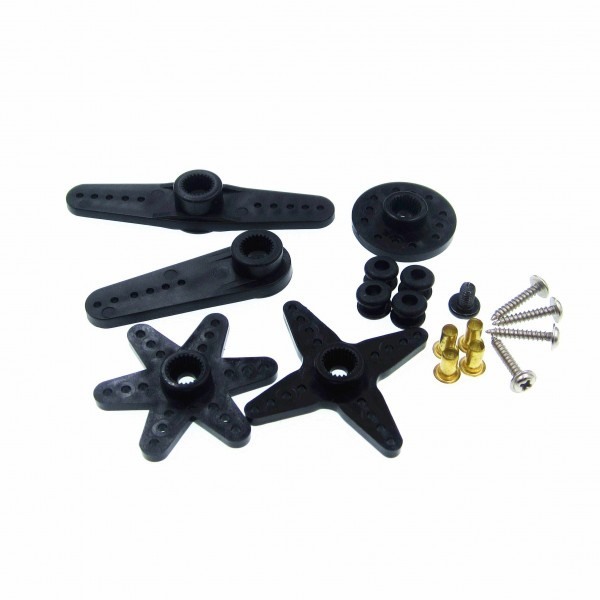

Package contents
Package contents 1x Servo motor
1x Accessory mounting screw
1x Shaft accessories (see images)
4x Mounting screw
4x Vibration absorber
4x Insert for vibration absorber
