Water Pump PYSP370-12C - 12V
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004878
€5.50
Ex Tax: €4.55
Your shopping cart is empty!

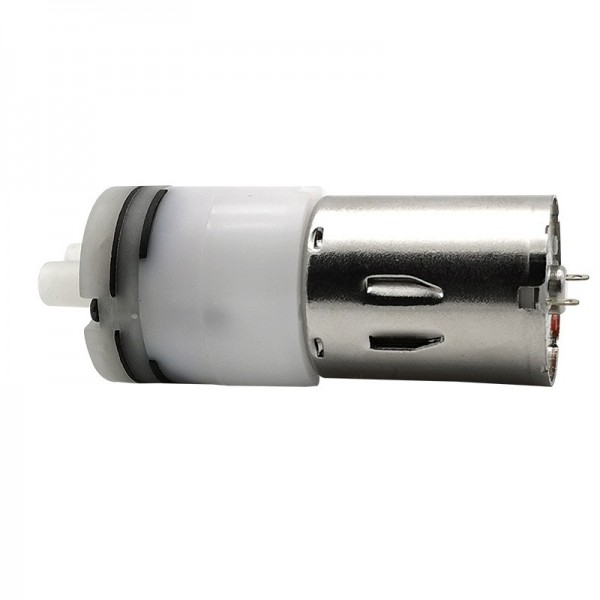

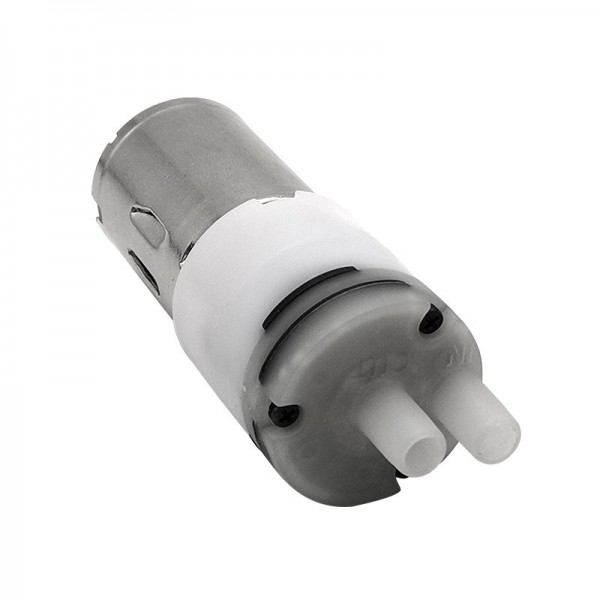

A small water pump that internally has a kind of pistons, making it relatively powerful. The water connections are suitable for a 6mm hose: Hose 6mm
| General | |
| Brand | No brand |
| Manufacturer model/SKU | PYSP370-12C |
| Minimum operating humidity [%R.H.] | 30 |
| Maximum operating humidity [%R.H.] | 85 |
| Minimum operating temperature [°C] | 5 |
| Maximum operating temperature [°C] | 45 |
| Lifespan [h] | 500 |
| Features | Pomp Motor |
| General physical appearance | |
| Main color | White |
| Weight [g] | 62 |

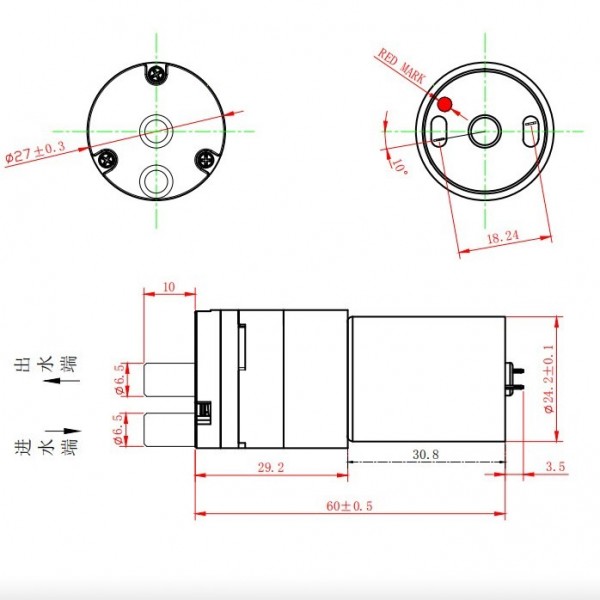

| Dimension X [mm] | 27 |
| Dimension Y [mm] | 27 |
| Dimension Z [mm] | 62 |
| General electrical properties | |
| Maximum supply voltage [V DC] | 14 (12V DC recommended) |
| Indication average current consumption [mA] | 300 (@12V) |
| Actuator | |
| Actuator type | Brushed DC motor |
| Phase resistance [Ω] | 23 |
| Pump | |
| Pumping mechanism | Piston |
| Maximum pump flow [L/min] | 1.0 |
| Maximum suction head [m] | 5.0 |
| Maximum pump head [m] | 5.0 |
| Fluid connector | |
| Coupling type(s) | Ø6.0mm external clamp |
| Flow direction | Unidirectional |
| Suitable liquids/gasses | Clean water |
| Connectors | |
| Motor connector(s) | Wire solder pin(s)/pad(s) |
| Package contents | |
| Package contents | 1x Pump |
