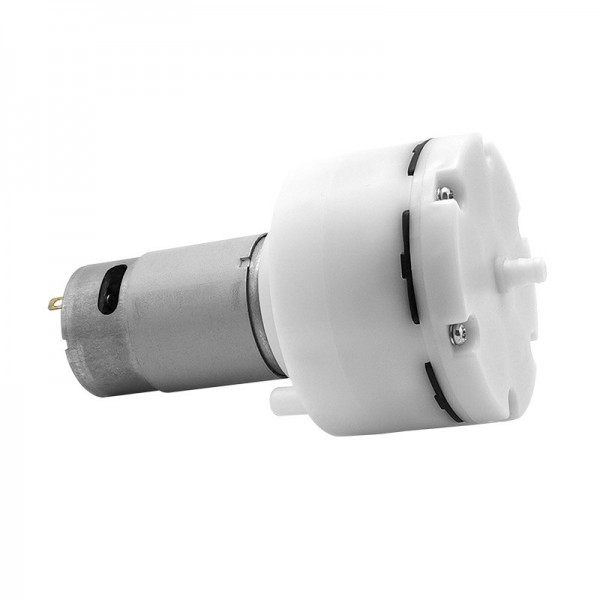

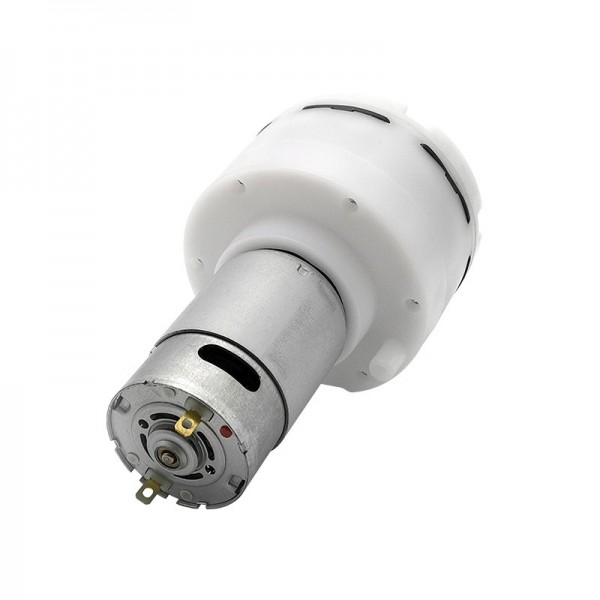

Air Pump PYP555-12Z - 12V

Based on 0 review(s) - Write a review

€10.00

Ex Tax: €8.26

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

A powerful air pump that is suitable for inflating a balloon, for example. The coupling is suitable for a 6mm hose: Hose 6mm

Please login or register to review

This product has 0 review(s) in total.

Tags: Air Pump PYP555-12Z - 12V , PYP555-12Z , Pumps

General
Brand	No brand
Manufacturer model/SKU	PYP555-12Z
Minimum operating humidity [%R.H.]	30
Maximum operating humidity [%R.H.]	85
Minimum operating temperature [°C]	-20
Maximum operating temperature [°C]	60
Lifespan [h]	500
Features	Motor Pomp
General physical appearance
Main color	White
Weight [g]	320

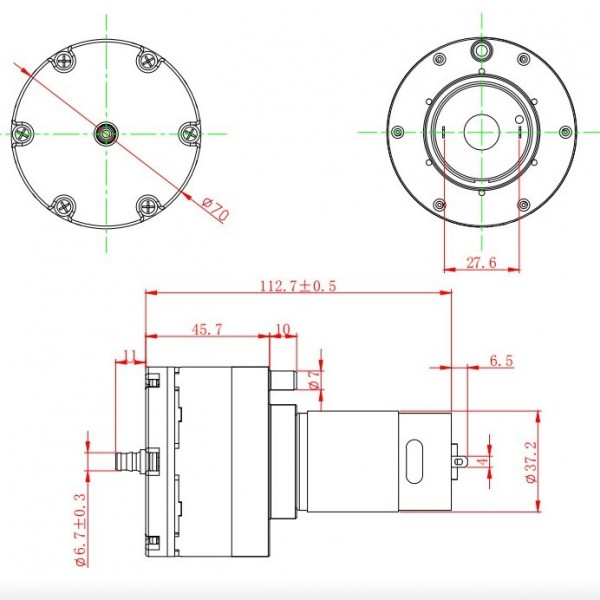

Dimension X [mm]	70
Dimension Y [mm]	70
Dimension Z [mm]	115
General electrical properties
Maximum supply voltage [V DC]	14 (12V DC recommended)
Indication average current consumption [mA]	1200 (@12V, no load)
Actuator
Actuator type	Brushed DC motor
Phase resistance [Ω]	2.5
Pump
Pumping mechanism	Piston
Maximum pump flow [L/min]	12
Maximum vacuum pressure [bar]	0.58
Maximum pump pressure [bar]	0.8
Fluid connector
Coupling type(s)	Ø6.0mm external clamp
Flow direction	Unidirectional
Suitable liquids/gasses	Air
Connectors
Motor connector(s)	Disconnect male (4.8x0.5mm disconnect female connector fits)
Package contents
Package contents	1x Pump
