Air Pump PYP370-12Z - 12V
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004876
€4.50
Ex Tax: €3.72
Your shopping cart is empty!

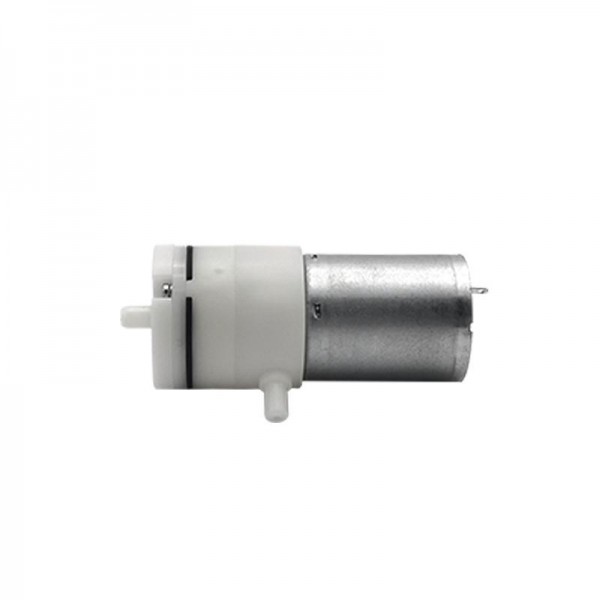

A small air pump that internally has a kind of pistons, making it relatively powerful. The air couplings are suitable for a 3.5mm hose: Hose 3.5mm
| General | |
| Brand | No brand |
| Manufacturer model/SKU | PYP370-12Z |
| Minimum operating humidity [%R.H.] | 30 |
| Maximum operating humidity [%R.H.] | 80 |
| Minimum operating temperature [°C] | 5 |
| Maximum operating temperature [°C] | 45 |
| Lifespan [h] | 500 |
| Features | Pomp Motor |
| General physical appearance | |
| Main color | White |
| Weight [g] | 57 |

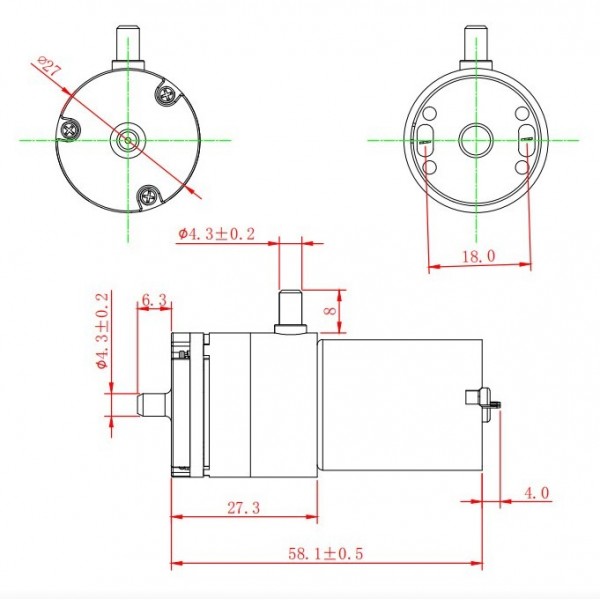

| Dimension X [mm] | 27 |
| Dimension Y [mm] | 27 |
| Dimension Z [mm] | 60 |
| General electrical properties | |
| Maximum supply voltage [V DC] | 14 (12V DC recommended) |
| Indication average current consumption [mA] | 220 (@12V DC, no load) |
| Actuator | |
| Actuator type | Brushed DC motor |
| Phase resistance [Ω] | 8.5 |
| Pump | |
| Pumping mechanism | Piston |
| Maximum pump flow [L/min] | 3.2 |
| Maximum vacuum pressure [bar] | 0.6 |
| Fluid connector | |
| Coupling type(s) | Ø3.5mm external clamp |
| Flow direction | Unidirectional |
| Suitable liquids/gasses | Air |
| Connectors | |
| Motor connector(s) | Wire solder pin(s)/pad(s) |
| Package contents | |
| Package contents | 1x Pump |
