Spare motor - Car Kit - DIY

Based on 0 review(s) - Write a review

€3.00

Ex Tax: €2.48

10 or more €2.50

20 or more €2.25

50 or more €2.00

100 or more €1.75

150 or more €1.50

Qty

Add to Cart

Add to wishlist

200+ pieces in stock

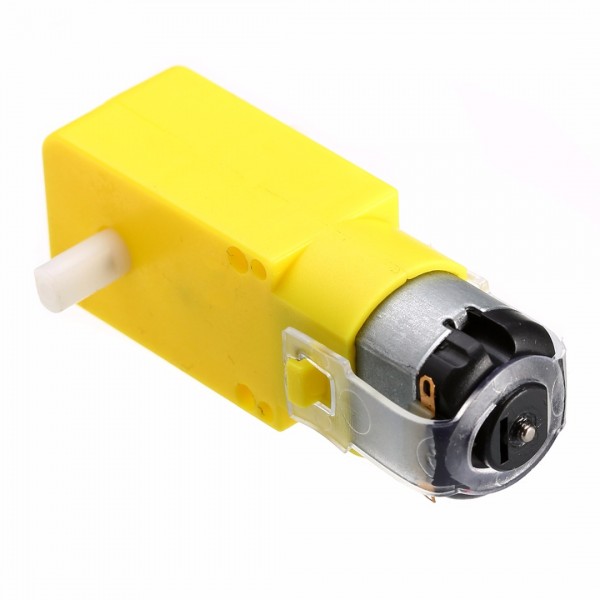

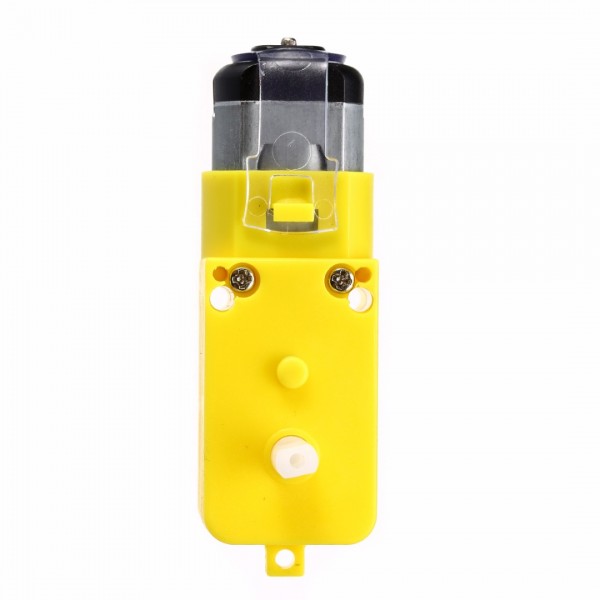

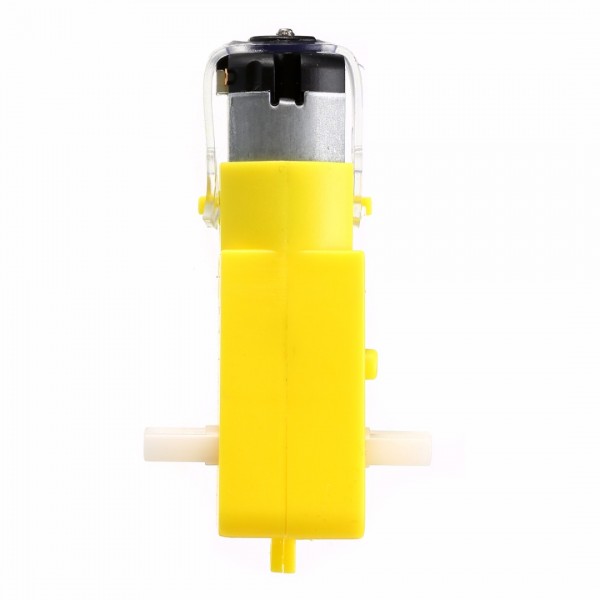

An extra motor for the car kit. The engines have a 48:1 ratio because of the gears in the motors.

Please login or register to review

This product has 0 review(s) in total.

Tags: Spare motor - Car Kit - DIY , MOTORCARKITDIY , DC-Motors

General
Brand	No brand
Features	Motor Transmission
General physical appearance
Main color	Yellow
Weight [g]	30

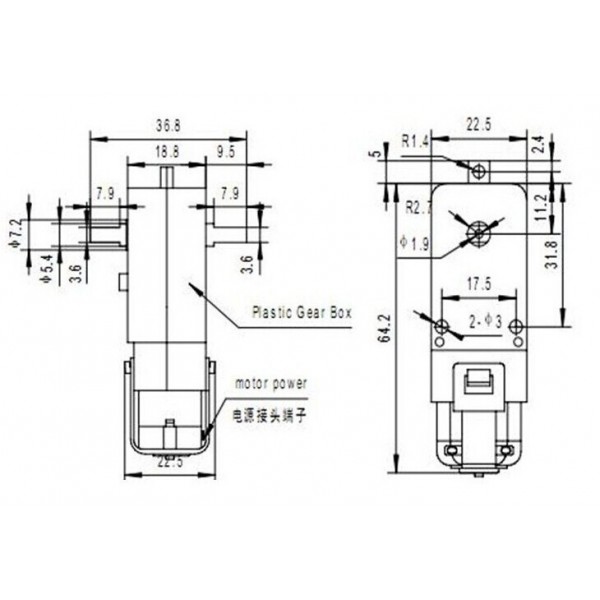

Dimension X [mm]	69
Dimension Y [mm]	23
Dimension Z [mm]	18
Mounting options	Mounting hole(s)
General electrical properties
Maximum supply voltage [V DC]	6
Indication average current consumption [mA]	200 (no load @6V) 150 (no load @3V)
Actuator
Actuator type	Brushed DC motor
Maximum holding torque [N.m]	0.11 (@6V) 0.08 (@3V)
Maximum speed [RPM]	200 (@6V) 90 (@3V)
Transmission	48:1
Gear material	Plastic
Shaft
Shaft type	Double Double D-shape
Shaft diameter [mm]	5.4
Shaft length [mm]	7.9 (double D-schape) 9.5 (total)
Connectors
Motor connector(s)	Wire solder pin(s)/pad(s)
Package contents
Package contents	1x DC transmission motor
