Small DC Motor 6V - Type 140

Based on 0 review(s) - Write a review

€1.75

Ex Tax: €1.45

10 or more €1.50

20 or more €1.25

50 or more €1.00

100 or more €0.90

Qty

Add to Cart

Add to wishlist

500+ pieces in stock

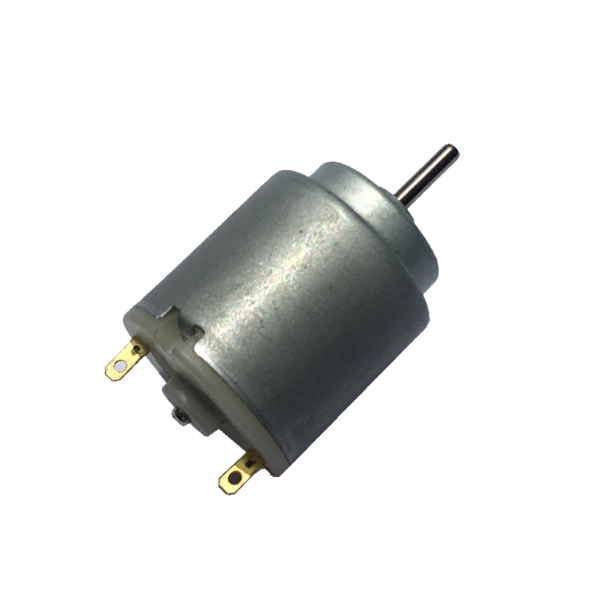

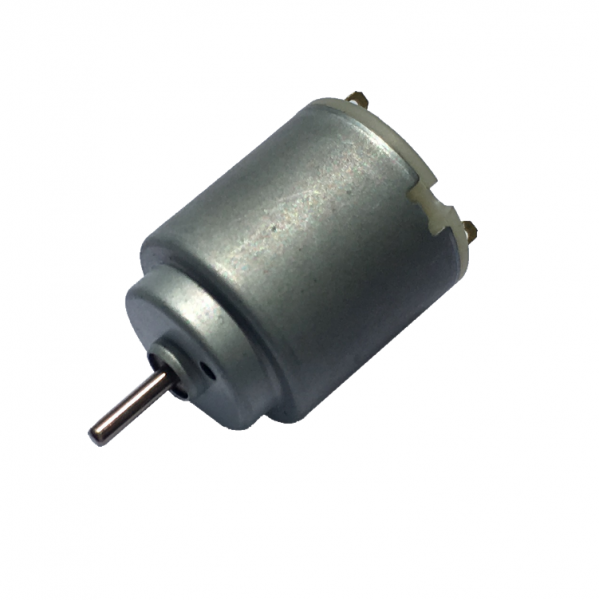

A small DC motor.

Please login or register to review

This product has 0 review(s) in total.

Tags: Small DC Motor 6V - Type 140 , 140DCMOTOR , DC-Motors

General
Brand	No brand
Features	Motor

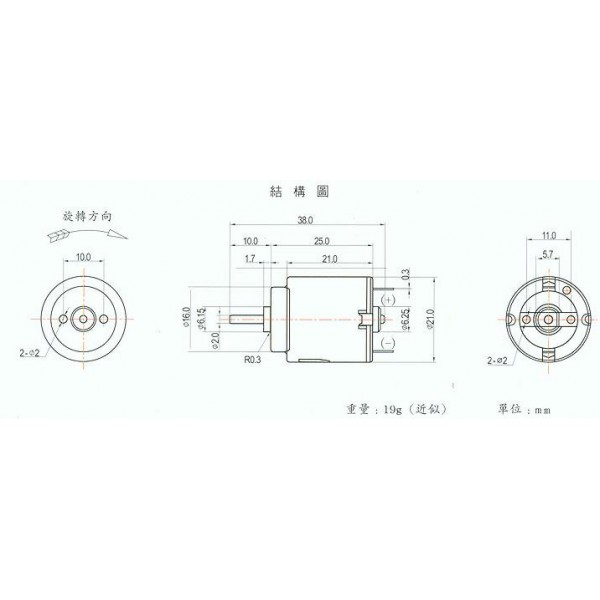

General physical appearance
Main color	Gray/silver
Weight [g]	18
Dimension X [mm]	21
Dimension Y [mm]	21
Dimension Z [mm]	29
Form factor	Type 140
General electrical properties
Maximum supply voltage [V DC]	6
Indication average current consumption [mA]	400 (@6V) 350 (@4-5V) 300 (@3V) 250 (@2V)
Actuator
Actuator type	Brushed DC motor
Phase resistance [Ω]	1.4
Shaft
Shaft type	Round
Shaft diameter [mm]	2.0
Shaft length [mm]	8.3
Connectors
Motor connector(s)	Wire solder pin(s)/pad(s)
Package contents
Package contents	1x DC motor
