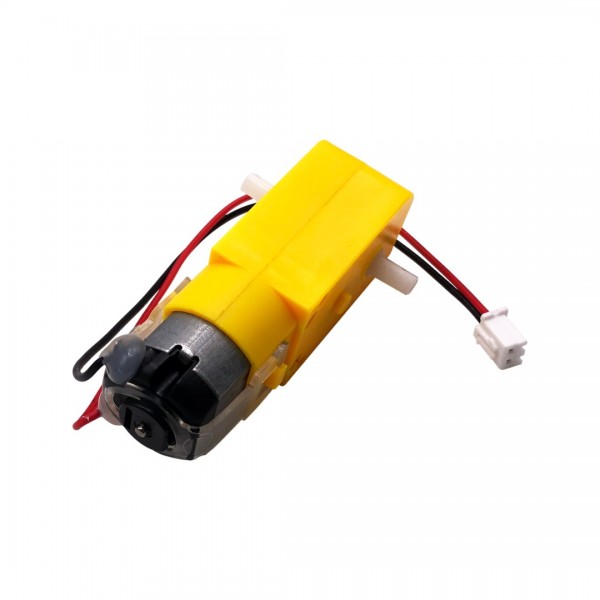

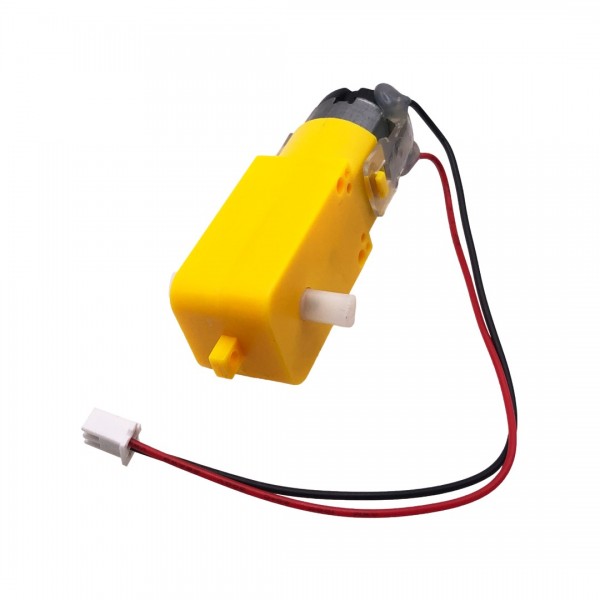

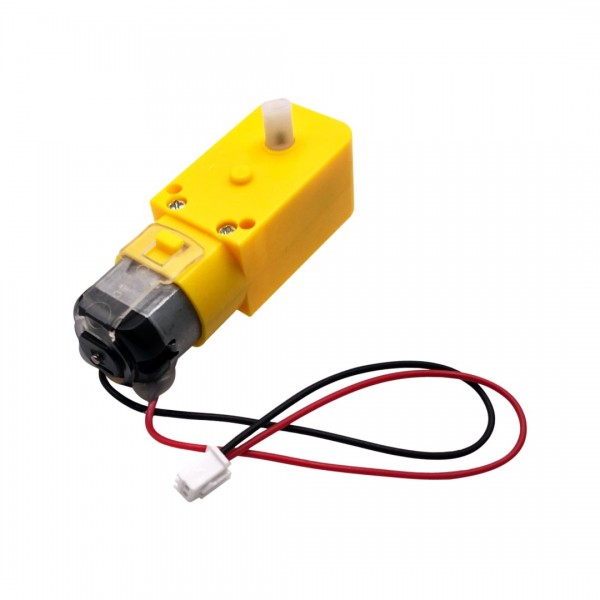

Open-Smart DC DC Transmission Motor 6V - JST-XH with Cable

2-4 Weeks

Open-Smart DC DC Transmission Motor 6V - JST-XH with Cable

Based on 0 review(s) - Write a review

€3.25

Ex Tax: €2.69

Qty

Add to Cart

Add to wishlist

Not in stock

A motor that can be used as a spare for the Car with Omnidirectional Wheels DIY Kit, for example.

Please login or register to review

This product has 0 review(s) in total.

Tags: Open-Smart DC DC Transmission Motor 6V - JST-XH with Cable , OS-MOTORCARKITDIY48:1 , DC-Motors

General
Brand	Open-Smart
Features	Motor Transmission
General physical appearance
Main color	Yellow
Weight [g]	27
Dimension X [mm]	69
Dimension Y [mm]	22
Dimension Z [mm]	19
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.1
General electrical properties
Maximum supply voltage [V DC]	6
Indication average current consumption [mA]	200 (no load @6V) 150 (no load @3V)
Actuator
Actuator type	Brushed DC motor
Maximum holding torque [N.m]	0.08 (@6V)
Maximum speed [RPM]	208 (@5V) 125 (@3V)
Transmission	48:1
Gear material	Plastic
Shaft
Shaft type	Double Double D-shape
Shaft diameter [mm]	5.4
Shaft length [mm]	7.5
Connectors
Motor connector(s)	JST-XH (compatible) female
Wire/cable
Wire/cable length [m]	0.15 (approximately)
Package contents
Package contents	1x DC transmission motor
