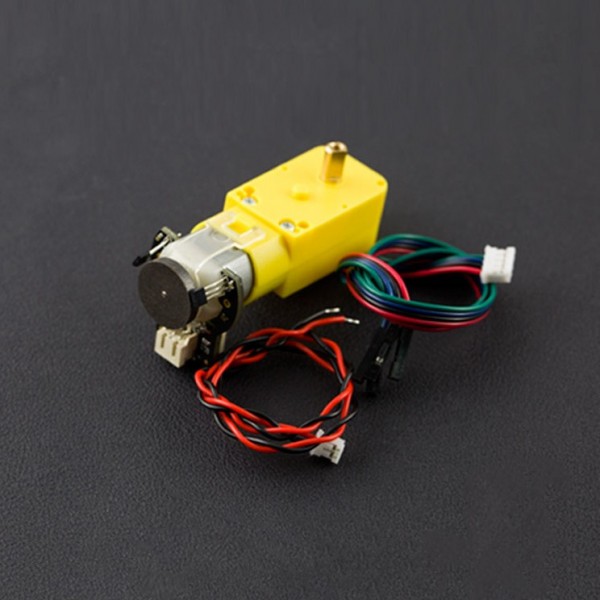

DFRobot DC Transmission Motor with Encoder - 6V - 160RPM


                      - Availability: Directly available from warehouse in Eindhoven
- SKU: 006238
€8.50
                            Ex Tax: €7.02

                        Your shopping cart is empty!

                    A DC motor with a transmission and rotary encoder.
See the following page for more information: Wiki
This product has 0 review(s) in total.


| General | |
| Brand | DFRobot |
| Manufacturer model/SKU | FIT0450 |
| Minimum operating temperature [°C] | -10 |
| Maximum operating temperature [°C] | 60 |
| Features | Motor Rotary encoder |
| General physical appearance | |
| Main color | Yellow |
| Weight [g] | 41 |
| Dimension X [mm] | 71 |
| Dimension Y [mm] | 45 |
| Dimension Z [mm] | 30 |
| Mounting options | Mounting hole(s) |
| Diameter mounting hole(s) [mm] | 3 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 4.5 |
| Maximum supply voltage [V DC] | 7.5 |
| Minimum recommended supply current [A] | 2.8 (stall current @6V) |
| Indication average current consumption [mA] | 170 (@6V, no load) |
| Minimum IO-pin input voltage [V] | 4.5 |
| Maximum IO-pin input voltage [V] | 7.5 |
| IO-pin output voltage [V] | Equal to supply voltage |
| Communication | |
| Hardware interface(s) | PWM |
| Rotary encoder | |
| Encoder type | Incremental |
| Encoder technology | Hall effect |
| Motor driver | |
| Minimum motor supply voltage [V DC] | 3 |
| Maximum motor supply voltage [V DC] | 7.5 |
| Actuator | |
| Actuator type | Brushed DC motor |
| Maximum holding torque [N.m] | 0.08 |
| Maximum speed [RPM] | 160 (@6V) |
| Transmission | 120:1 |
| Gear material | Plastic |
| Connectors | |
| Power supply connector(s) | JST-PH (compatible) male |
| IO-connector(s) | JST-PH (compatible) male |
| Motor connector(s) | JST-PH (compatible) male |
| Package contents | |
| Package contents | 1x DC Motor with encoder 1x JST-PH 2p female to loose wire 1x JST-PH 4p female to DuPont female cable |
